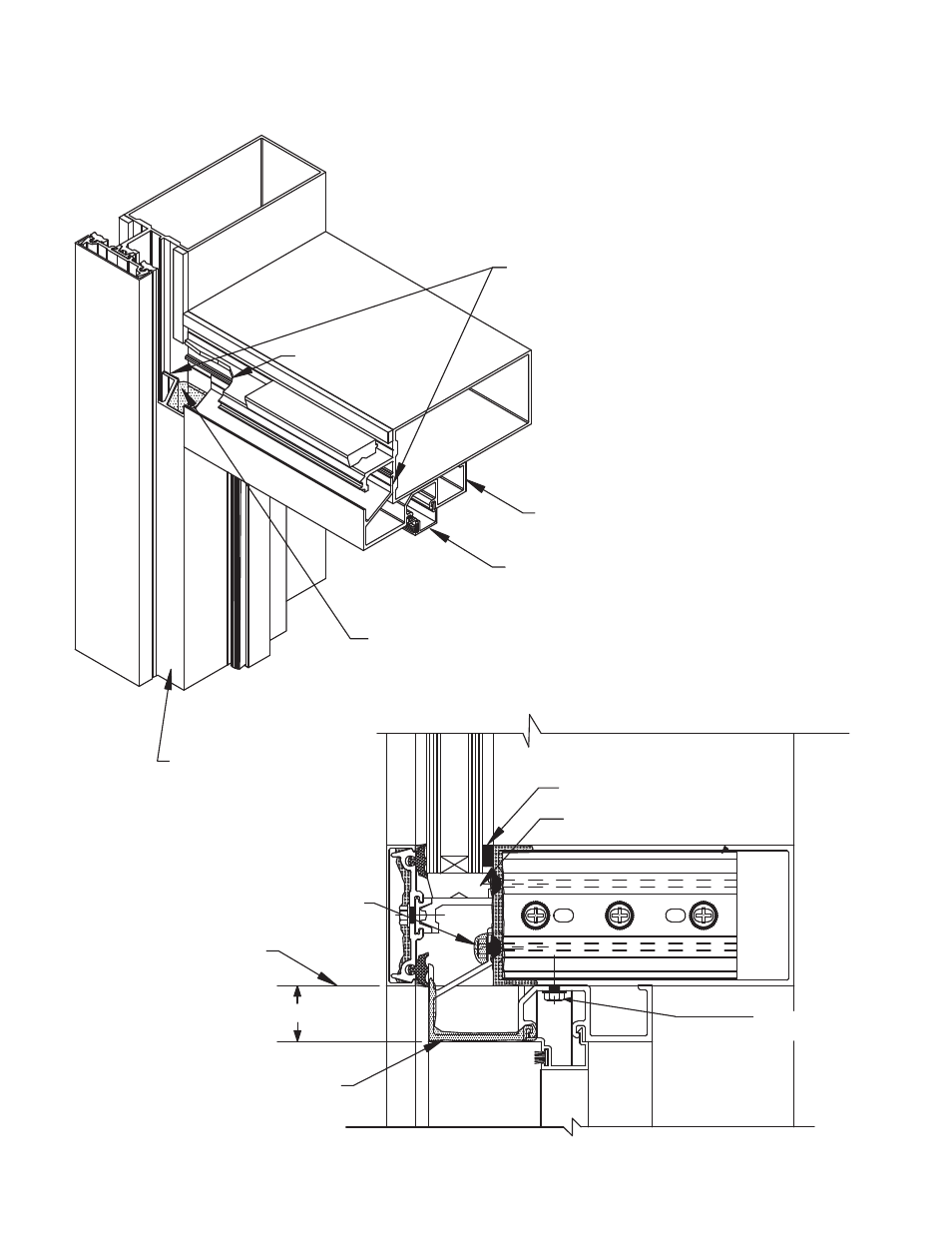

DOOR FRAME INSTALLATION - SUB-FRAME AT HEAD & JAMB
22 February 2012
Phone: 1-866-OLDCASTLE (653-2278)
Web Address: www.oldcastlebe.com
CUT AWAY FOR
CLARITY
FILL HOLE AT TOP OF
DOOR JAMB WITH BACKER ROD
AND SEAL.
CW-20 DOOR JAMB
ATTACH W/ FS-322
@ 18" O.C.
FG-2145
FS322 @ 18" O.C.
(2 PLACES)
GASKET (V788)
CW-9 SETTING BLOCK
CW-1636 GLAZING
BED DOOR JAMB &
HEAD IN SEALANT
CAP SEAL
FASTENERS
SEAL BETWEEN DOOR
JAMB & HEADER
1"
CW-20 DOOR JAMB
CUT LENGTH =
DOOR OPENING + 1"
ATTACH W/ FS-322
@ 18" O.C.
TOP OF CW-20
DOOR JAMB
