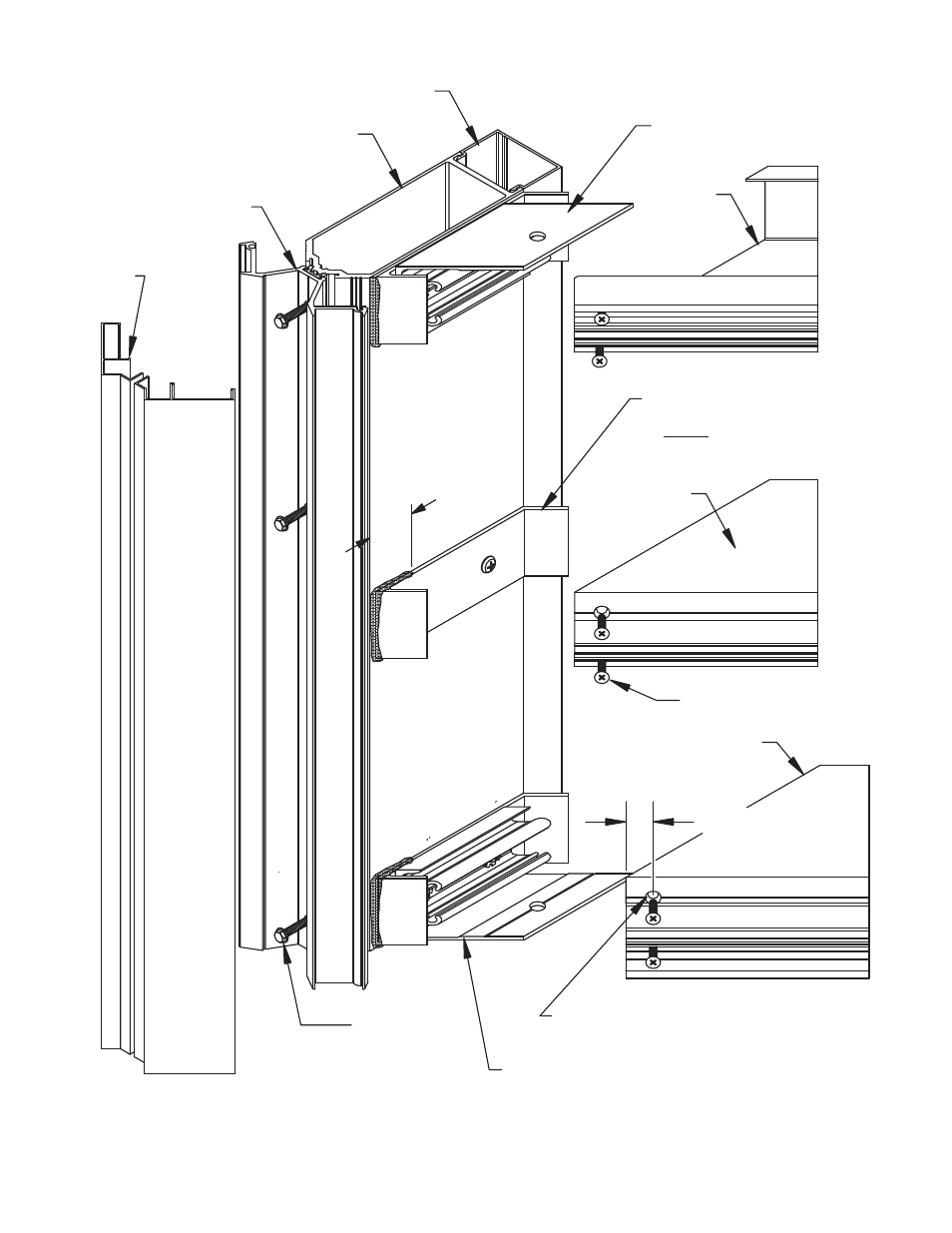

90 OUTSIDE CORNER ASSEMBLY O
32 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
CW-31
w/ CW-6
(2) CW-34
CW-22
CW-26
CW-12
CW-12
CW-1
FS-322
@ 12" O.C.
FS-42 (TYP)
CAP SEAL
DRILL 7/23" CLEAR HOLE
& C'SINK 7/16" DIA. FOR #12 PFH.
NOTE:
DO NOT USE CW-13 OR CW-14
HORIZONTALS AT CORNERS.
1" TYP.
*
* USE HOLES IN HORIZONTAL TO
MATCH DRILL (#17 (.173 dia) HOLES
IN SHEAR BLOCK
3/4"
CW250-FP-7 (TYP)
CW250-FP-13
CW250-FP-14 (OPP SIDE)
CW250-FP-14
CW250-FP-13 (OPP SIDE)
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
