1/4” ADAPTOR FABRICATION & INSTALLATION
21 February 2012
Phone: 1-866-OLDCASTLE (653-2278)
Web Address: www.oldcastlebe.com
CW-10 CUT LENGTH = D.L.O. + 1/2"
TYPICAL.
CW-10 CUT LENGTH
= D.L.O. TYPICAL
FS-322 @ 18" O.C.
USE COMPATIBLE SEALANT TO
MARRY JOINT BETWEEN SEALANT
AT GLASS, VERTICAL SEALANT
AT MULLION ADAPTOR, SEALANT
AT SHEAR BLOCK, AND HORIZONTAL
SEALANT AT ADAPTOR.
CAP SEAL ALL
FASTENERS
NOTE: CW-10 ADAPTOR IS SPLICED
AT MULLION SPLICE. REFERENCE
SHEET 31
CW-10 CUT LENGTH
= D.L.O. + 1"
NOTE: CUT LENGTH OF CW-10
AT CORNER VARIES. REFERENCE
CORNER DETAILS.
1"
1
2"
1
4"
DRILL 5/16" Ø
WEEP HOLE
WHEN USING CW-13 & CW-14;
THE CW-10 TO BE CUT D.L.O.
+ 1 1/2" AND WILL RUN THRU
VERTICALLY AT BOTH THE TOP
AND BOTTOM OF THE OPENING.
CW-13
CW-14

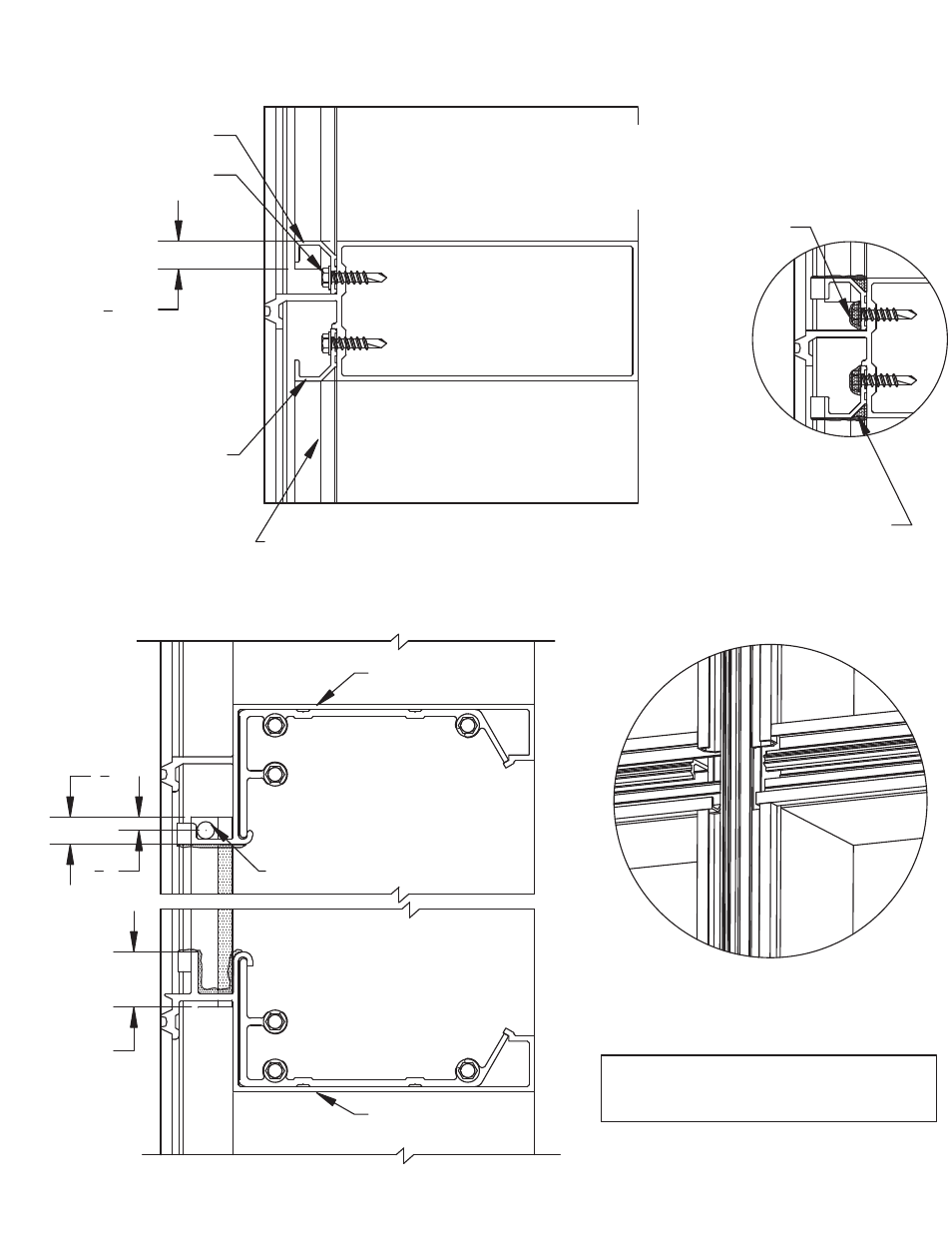

DETAIL FOR INSTALLATION
OF CW-10 AT CW-1 HORIZ.
WHEN USING CW-1; THE VERTICAL CW-10
WILL BE CUT D.L.O. + 1/2" AND WILL RUN
THRU AT THE BOTTOM OF THE LITE
AND THE HORIZONTAL CW-10 WILL RUN
THRU AT THE TOP OF THE LITE.
1
2" TYP.
