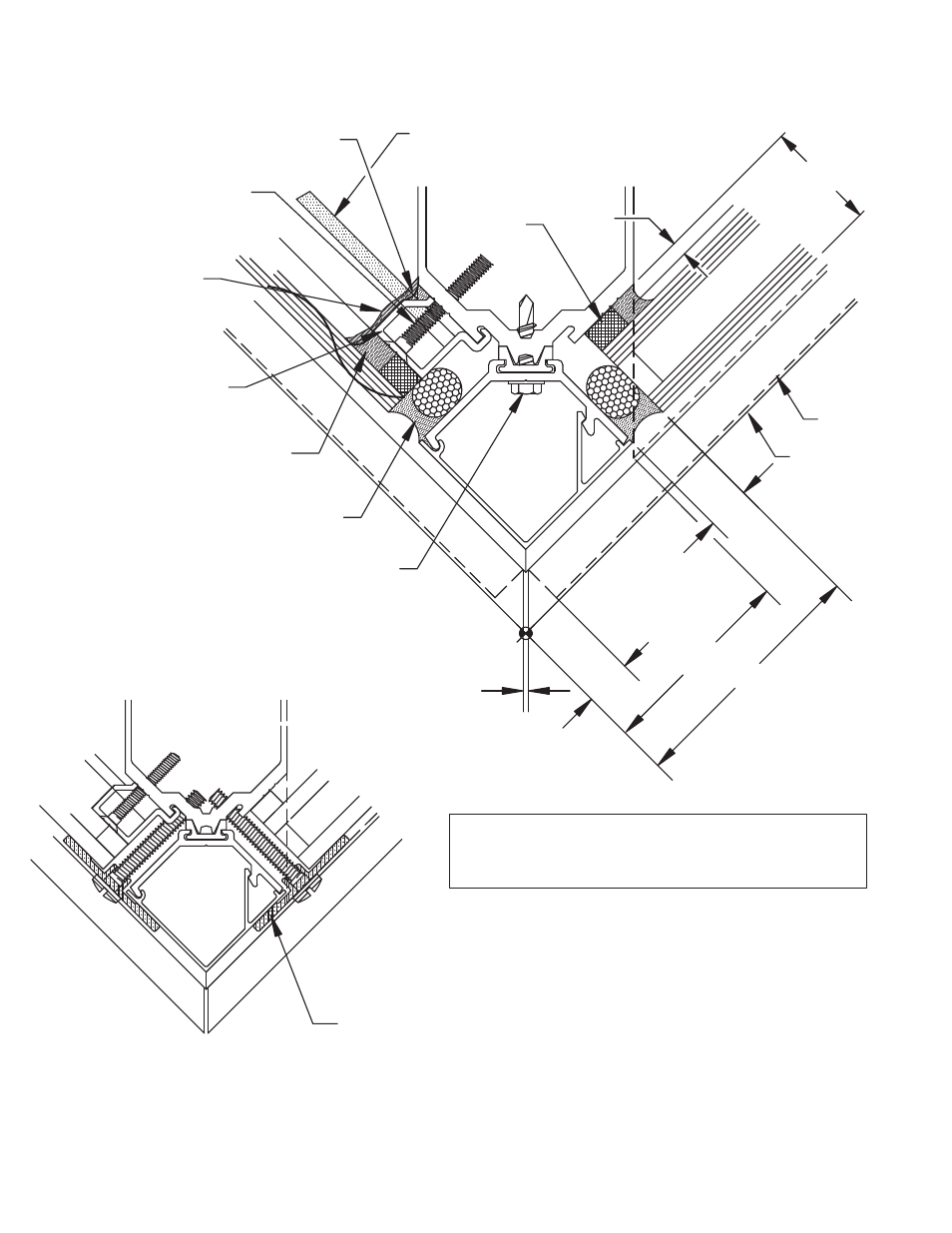

SSG 90 OUTSIDE CORNER WEATHERSEAL

February 2012

Web Address: www.oldcastlebe.com

Phone: 1-866-OLDCASTLE (653-2278)

1/16"

CONTINUOUS SEAL BETWEEN

ADAPTOR & MULLION

WEATHER SEAL

STRUCTURAL GLAZING

SEALANT (CLEAN & PRIME

SURFACE AS REQ'D)

FS-119

(#10 X 1 3/8"

PFH STS) @ 18" O.C.

CW-37

SEAL ADAPTORS @

BOTH ENDS & FULL

LENGTH

(SEE NOTE #1)

FS-322 @ 12" O.C.

1/8"

1 5/16"

CW250-FP-19

TEMP. GLAZING

RETAINER. ATTACH

W/ FS-214

1/2"

2 3/8"

NOTE:

HORIZONTAL CUT LENGTH = WORKPOINT - 2 3/8"

HEAD AND SILL CUT LENGTH = HORIZ. LENGTH - 1/16"

CW-3

(PRES.PLT.)

CW-2

(FACE CAP)

9/16"

V2110

NOTE: HORIZONTAL OFFSET 1/8"

TO VERTICAL. SEAL OFFSET

OF HORIZONTAL TO VERTICAL.

NOTE:

1) COMPLETELY SEAL BOTH ENDS OR ADAPTOR TO HORIZONTALS;

MAARY SEALANT TO ADAPTOR LONGITUDINAL SEALS AND GLASS

SEALS.

2) REFERENCE SHEETS 55 & 56 FOR SHEARBLOCK, ANCHOR AND

HORIZONTAL DETAILS.

C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
