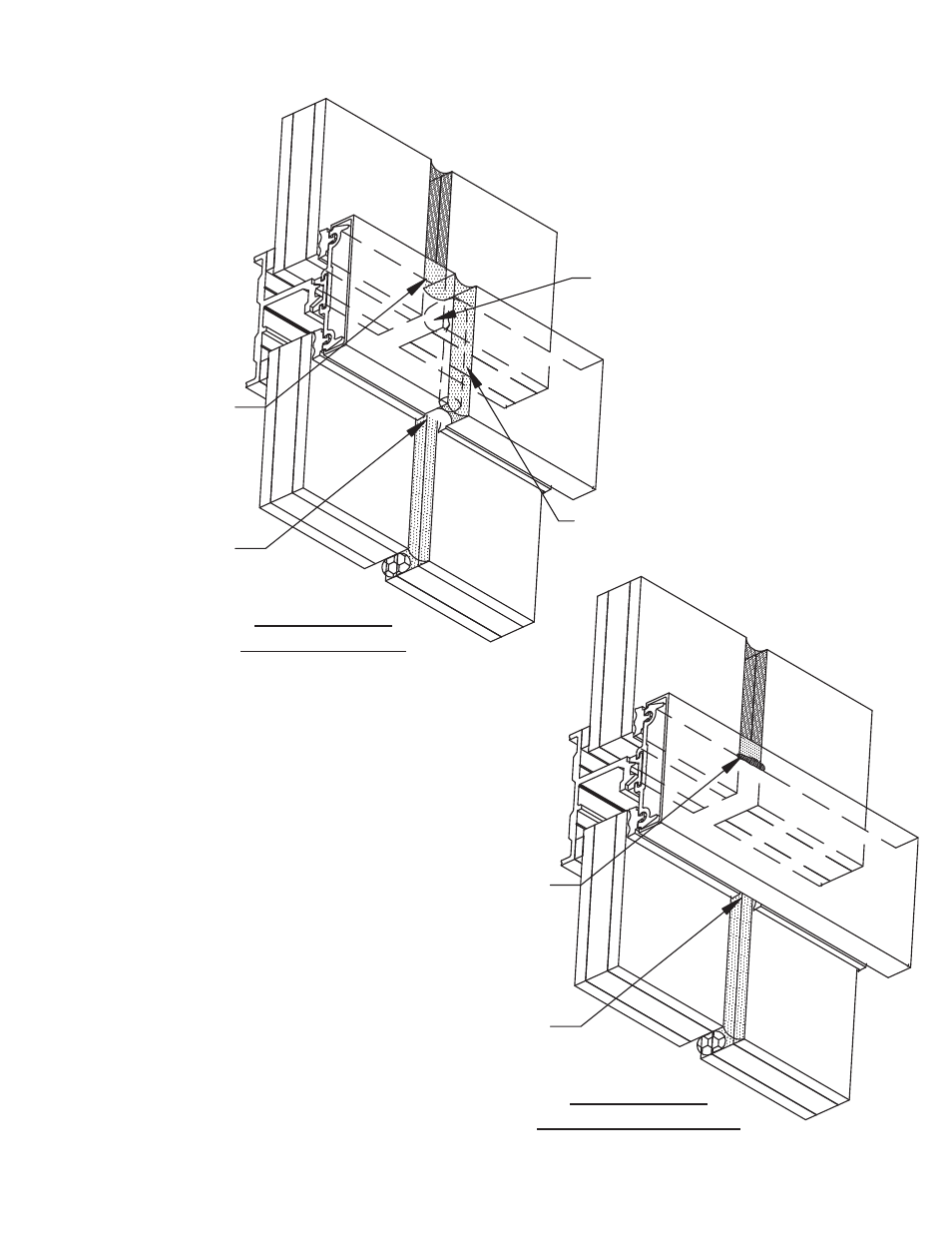

SSG WEATHER SEALS AT GLASS & FACE CAP
53 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
GLASS JOINT
(NO SPLICE IN CAP)
NOTE: LEAVE SPACE IN
GASKET AT BOTTOM FOR
WEEPAGE
WITH SEALANT, MARRY WEATHER
SEAL TO GASKET AT TOP
GLASS JOINT
(SPLICE IN CAP)
MARRY WEATHER SEAL
@ GLASS TO WEATHER
SEAL @ FACE CAP
NOTE: LEAVE SPACE IN
GASKET & SEALANT AT
BOTTOM FOR WEEPAGE
WEATHER SEAL
NOTE: 1/8” MIN FACE CAP JOINT
OPEN CELL
BACKER ROD
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
