BRIDGE INSTALLATION
49 February 2012
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)

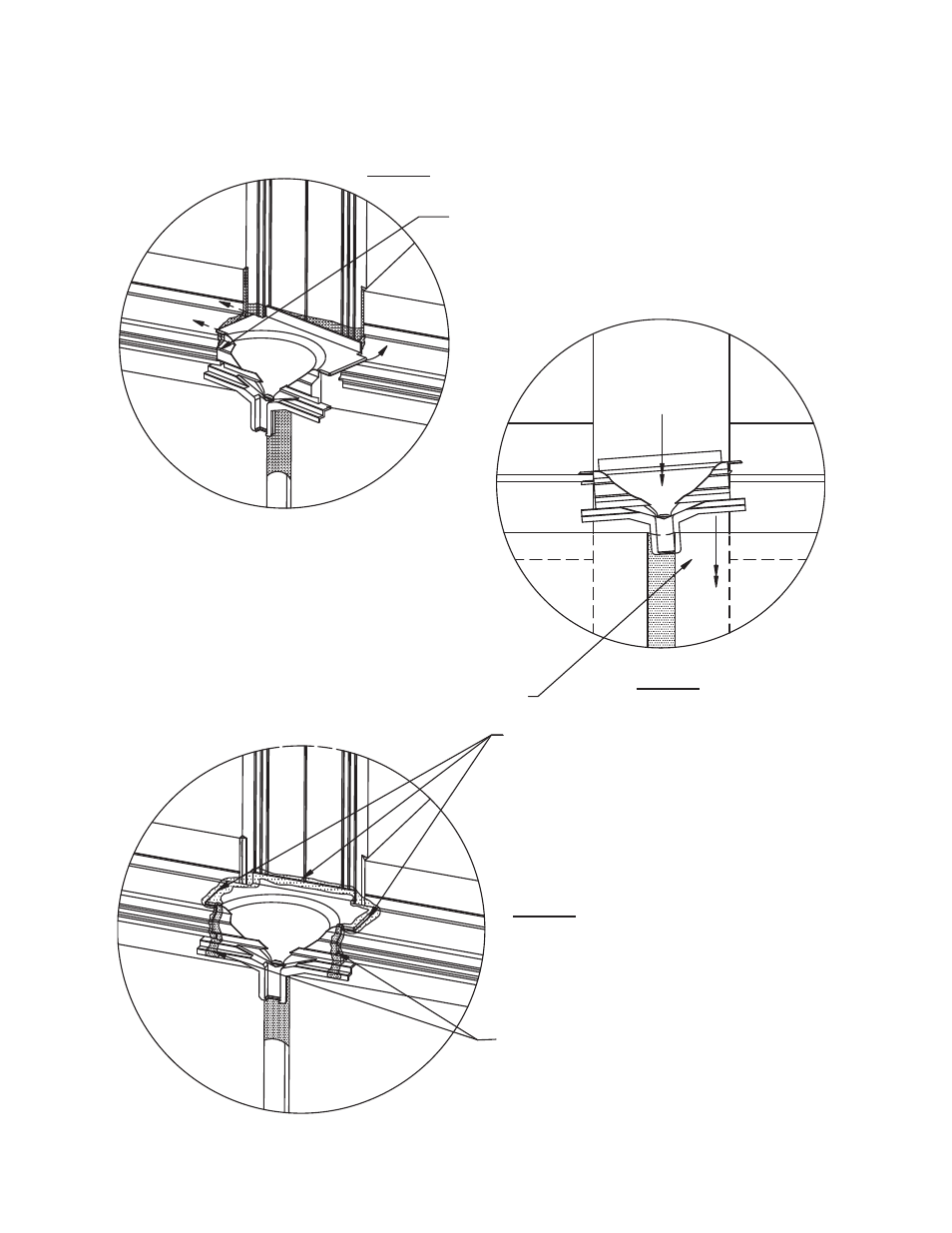

AFTER BRIDGE IS ROTATED INTO
POSITION, THE SNAP LEG ON
RIGHT SIDE OF BRIDGE WILL
BE LOCATED ABOVE THE
HORIZONTAL TONGUE. FLEX BRIDGE
AT CENTER AND SNAP ONTO TONGUE.
ONCE FACE OF BRIDGE
ALIGNS WITH LEFT HORIZONTAL
TONGUE, BEGIN TO ROTATE INTO
FINAL POSITION.
TOOL SEALANT ALONG BACK LEG,
SIDE AND ALONG FACE JOINT
AFTER INSTALLATION. MARRY SEAL
INTO JOINT BETWEEN HORIZONTAL
AND MULLION.
AFTER BRIDGE IS INSTALLED
RUN BEAD OF SEALANT
ALONG FACE JOINT JUST
PRIOR TO INSTALLING
PRESSURE PLATE.
STEP 4
STEP 5
STEP 6
