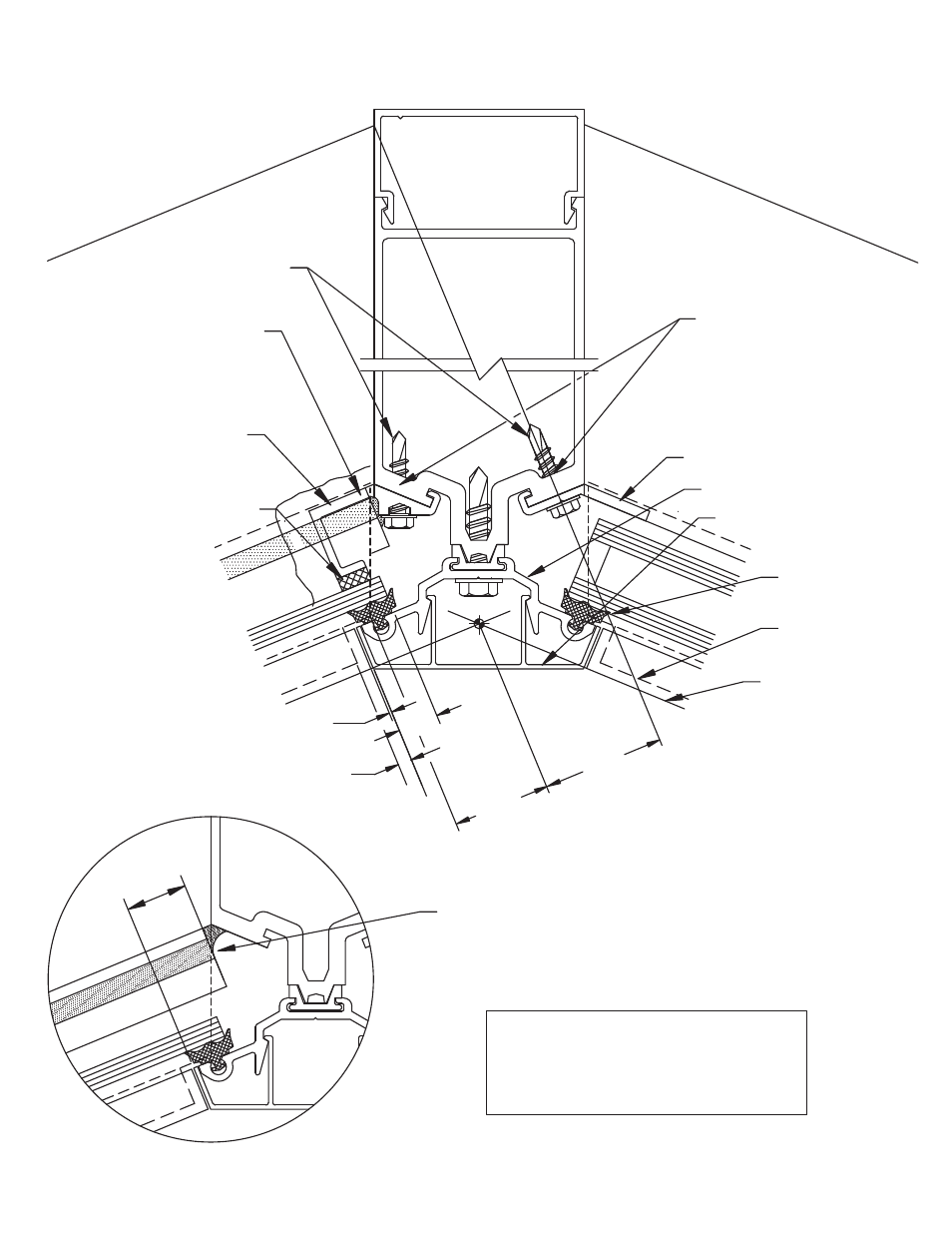

135 INSIDE CORNER ASSEMBLY O
42 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
SEAL ADAPTORS @
BOTH ENDS & FULL
LENGTH (SEE
NOTE #1, SHT #33)
FS-322 @ 18" O.C.
NOTE:
HORIZONTAL CUT LENGTH =
WORKPOINT + 1 21/32"
HEAD AND SILL CUT LENGTH =
HORIZ. LENGTH - 1/16"
CW-3 PRESSURE
PLATE
CW-2 FACE CAP
CW-173 1/4" ADAPTOR
CW-175 1" ADAPTOR
SEAL END OF HORIZONTAL
AND ADAPTOR TO FACE OF
MULLION.
CW-165 FACE CAP
1/8"
1 11/32"
REF.
1/2" 1/32"
1 21/32"
TO BACK OF
HORIZONTAL
CW-164 PRESSURE PLATE
CW-1636
CW-17
GASKET
3/4"
MATCH DRILL MULL
THROUGH HOLES IN
ADAPTORS W/ #17
(.173 dia.) FOR
#12 HH DRILL-FLEX
(FACE CAP)
(PRES. PLT.)
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
