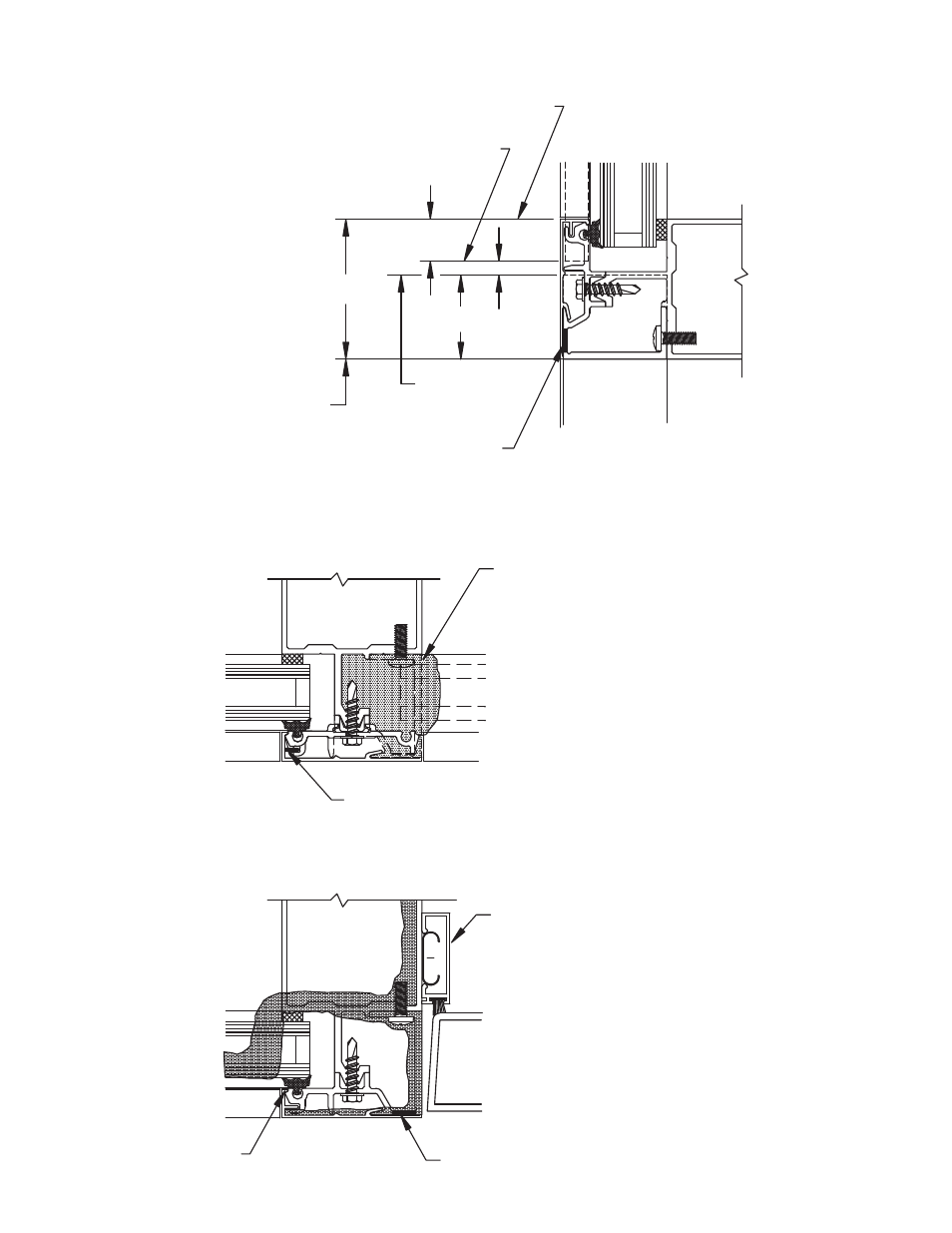

DOOR FRAME INSTALLATION AT HEAD & JAMB - NO SUB-FRAME
25 February 2012
INSTALL BACKER ROD INTO TOP
OF CW-151 AND SEAL TO
MULL AND HORIZONTAL
2 1/2"
3/4"
1/4"
1 1/2"
TOP OF
CW-151
TOP OF HORIZ.
& CW-150
DS-1 DOOR STOP
ATTACH W/ SC-1
CLIP @ 18" O.C.
DOOR
OPENING
LEAVE GAP IN
SEALANT FOR
DRAINAGE
NOTCH LEG OF CW-150 FACE CAP
X 7/8" LG. TO CLEAR CW-3
PRESSURE PLATE ABOVE.
BOTTOM OF
CW-3
1/2" DIA. ACCESS HOLE
1/2" DIA.
ACCESS HOLE
