Oldcastle BuildingEnvelope CW-250 - Manual (Page 19)

19 February 2012
Phone: 1-866-OLDCASTLE (653-2278)
Web Address: www.oldcastlebe.com

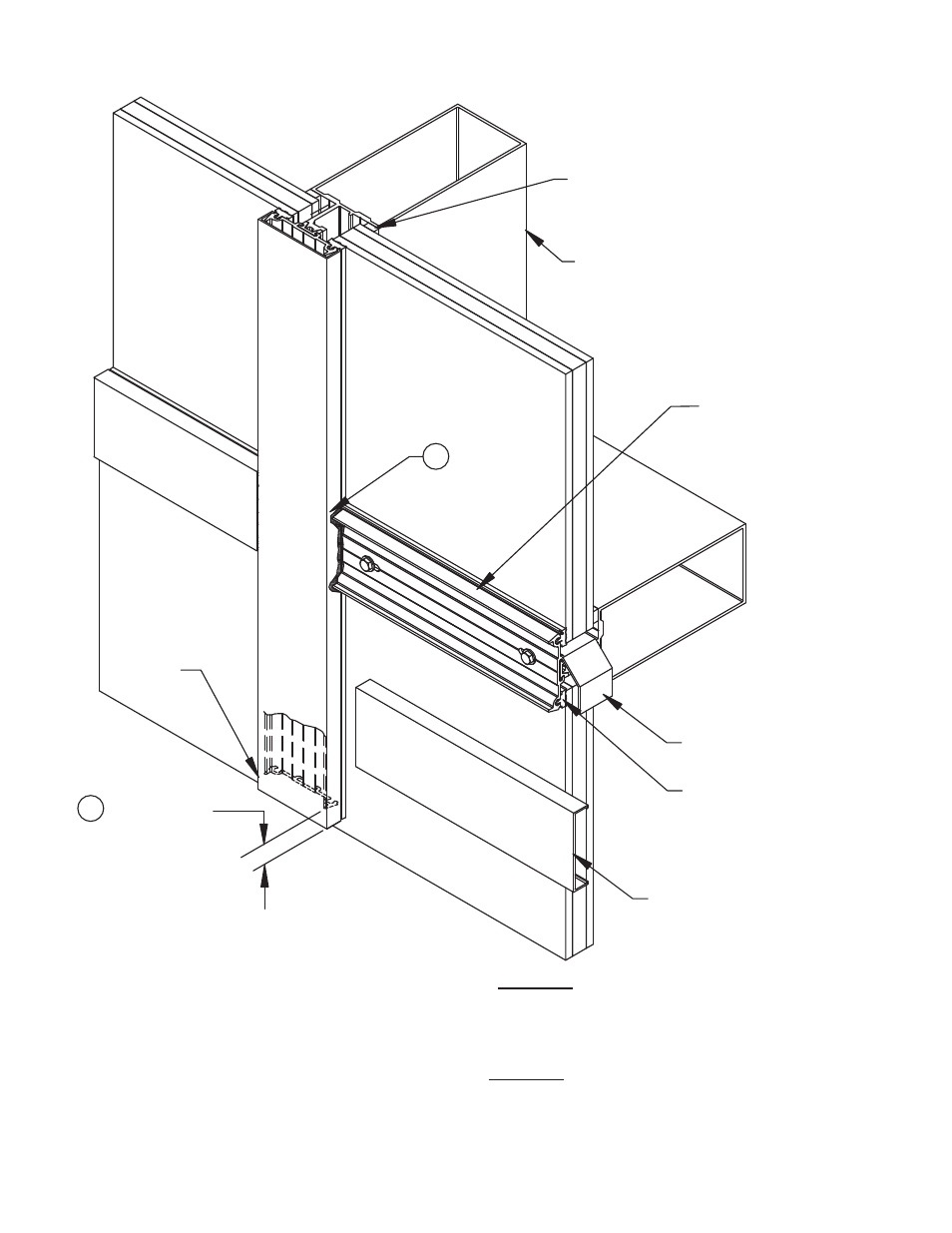

4
SEE NOTE 4 FOR PRESSURE PLATE
& FACE CAP INSTALLATION.
CW-17
CW-1636 REF. SHT 7
FOR INSTALLATION
CW-1
CW-2
CUT LENGTH =
D.L.O. - 1/16"
CW-3
CUT LENGTH =
D.L.O. - 1/4"
CW-2
CW250-FP-108
WATER DIVERTER
1) GLASS BITE = 1/2" TYPICAL
2) CUT VERTICAL PRESSURE PLATE
1/4" SHORT AT SILL FOR WEEPAGE
(DO NOT BLOCK WITH WEATHERSEAL)
3) GLAZING GASKET: PROVIDE 1/4” ADD-
TIONAL GASKET FOR EACH FOOT OF
DAYLIGHT OPENING OT ALLOW FOR
RELAXATION OF GASKET.
1/4" SHORT
@ SILL
4) OPTION 1: INSTALL VERTICAL PRESSURE
PLATE AND FACE CAP PRIOR TO INSTALLATION
OF HORIZONTAL PRESSURE PLATES. SEAL HORIZONTAL
PRESSURE PLATE TO VERTICAL FACE CAP PRIOR
TO INSTALLING HORIZONTAL FACE CAP.
OPTION 2: INSTALL ALL PRESSURE PLATES
AND MAINTAIN A MINIMUM 1/8" SPACE BETWEEN
VERT. AND HORIZ. PRESSURE PLATES. INSTALL
VERTICAL FACE CAP AND SEAL HORIZONTAL
PRESSURE PLATE TO VERTICAL FACE CAP
PRIOR TO INSTALLING HORIZ. FACE CAP.
2
