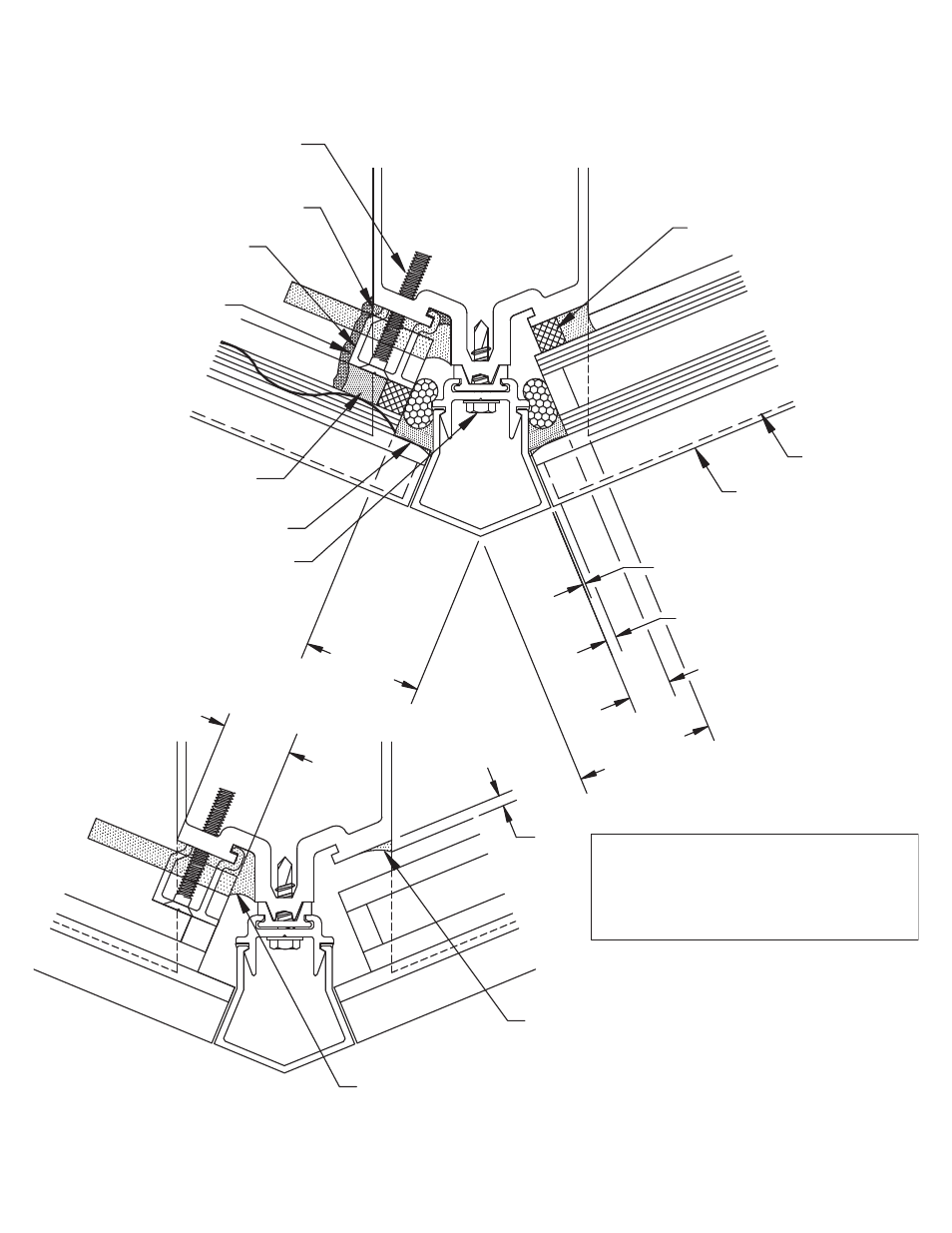

SSG 135 OUTSIDE CORNER WEATHERSEALS
63 February 2012
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
1 19/32"
1/2"
1/8" PRES. PLT.
1/32" FACE CAP
1 3/8"
CONTINUOUS SEAL BETWEEN
ADAPTOR & MULLION
WEATHER SEALANT
STRUCTURAL GLAZING
SEALANT (CLEAN & PRIME
SURFACE AS REQ'D)
FS-119
(#10 X 1 3/8"
PFH STS) @ 18" O.C.
CW-172
SEAL ADAPTORS @
BOTH ENDS & FULL
LENGTH (SEE
NOTE #1, SHT 57)
FS-322 @ 12" O.C.
NOTE:
HORIZONTAL CUT LENGTH =
WORKPOINT - 1 19/32"
HEAD AND SILL CUT LENGTH =
HORIZ. LENGTH - 1/16"
CW-3
(PRES. PLT)
CW-2
(FACE CAP)
1/8"
SEAL BETWEEN HORIZONTAL
AND MULLION.
MARRY SEAL AT HORIZONTAL ADAPTOR
INTO SEAL BETWEEN HORIZONTAL AND
MULLION.
V2110
13/16"
