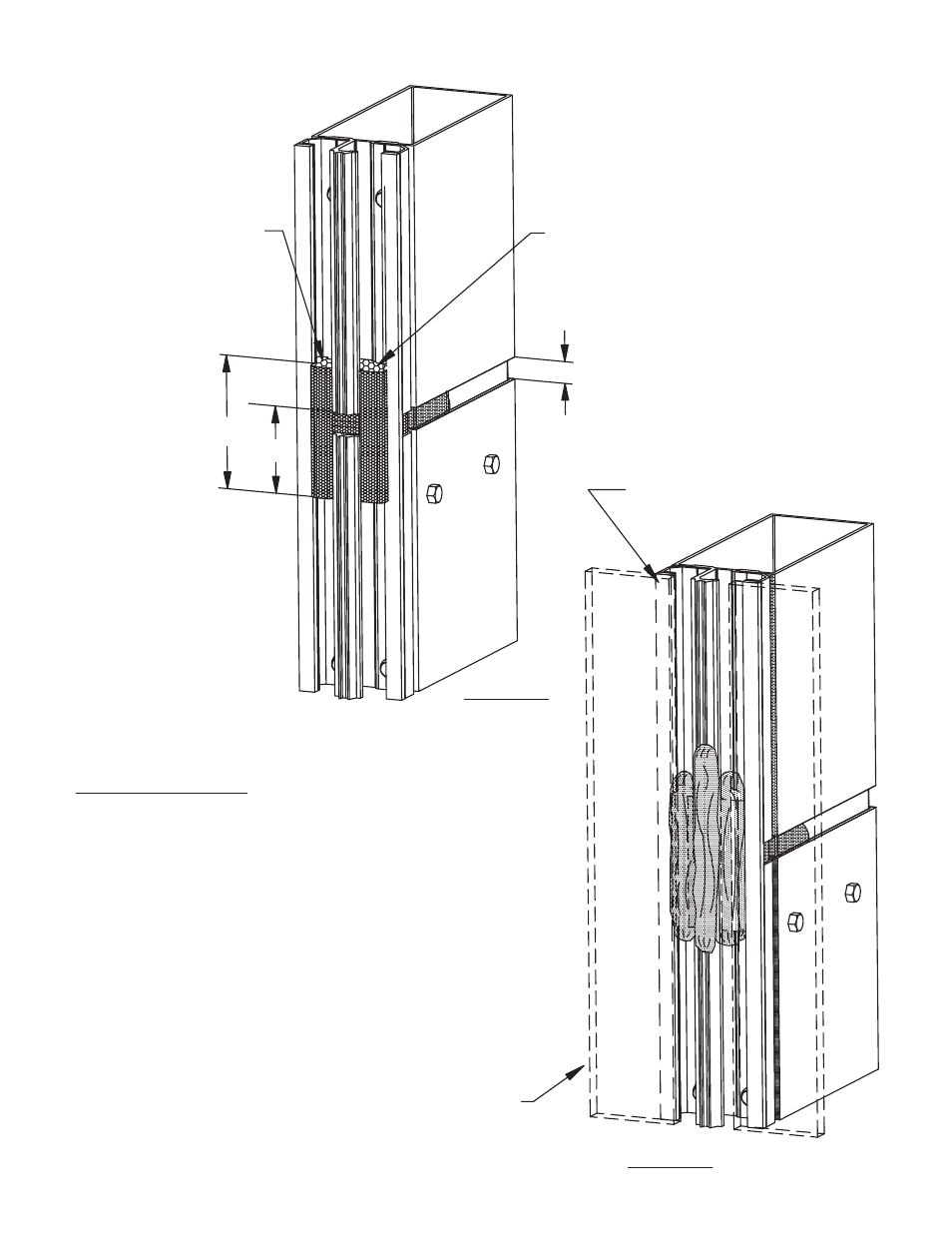

SPLICE SEALANT INSTRUCTIONS
29 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
3 3/4"
2"
1/2" MULL SPLICE
SEE NOTE "C"
2" DIA. X 3 3/4" LONG
"DENVER" FOAM ROD
1" DIA. X 3 3/4" LONG
"DENVER" FOAM ROD
SEE NOTE "A"
FOR SPECIAL
GLAZING TAPE
GENERAL NOTES:
A) NORTON "NORPRENE" P3247, 1/4" X 3/8" FOAM
GLAZING GASKET TO BE USED FOR LIVE-LOAD SPLICE
CONDITIONS IN LIEU OF CW-1636 FOAM TAPE INDICATED
ON STANDARD CW-250 DETAILS.
B) MULLION NORMALLY SPLICED IN 1/4" SPANDREL GLASS AREA.
C) MAXIMUM MOVEMENT OF ± 1/4" AT TYPICAL SPLICE
JOINT
DETAIL 3
DETAIL 4
1/4" GLASS
SEE NOTE "B"
