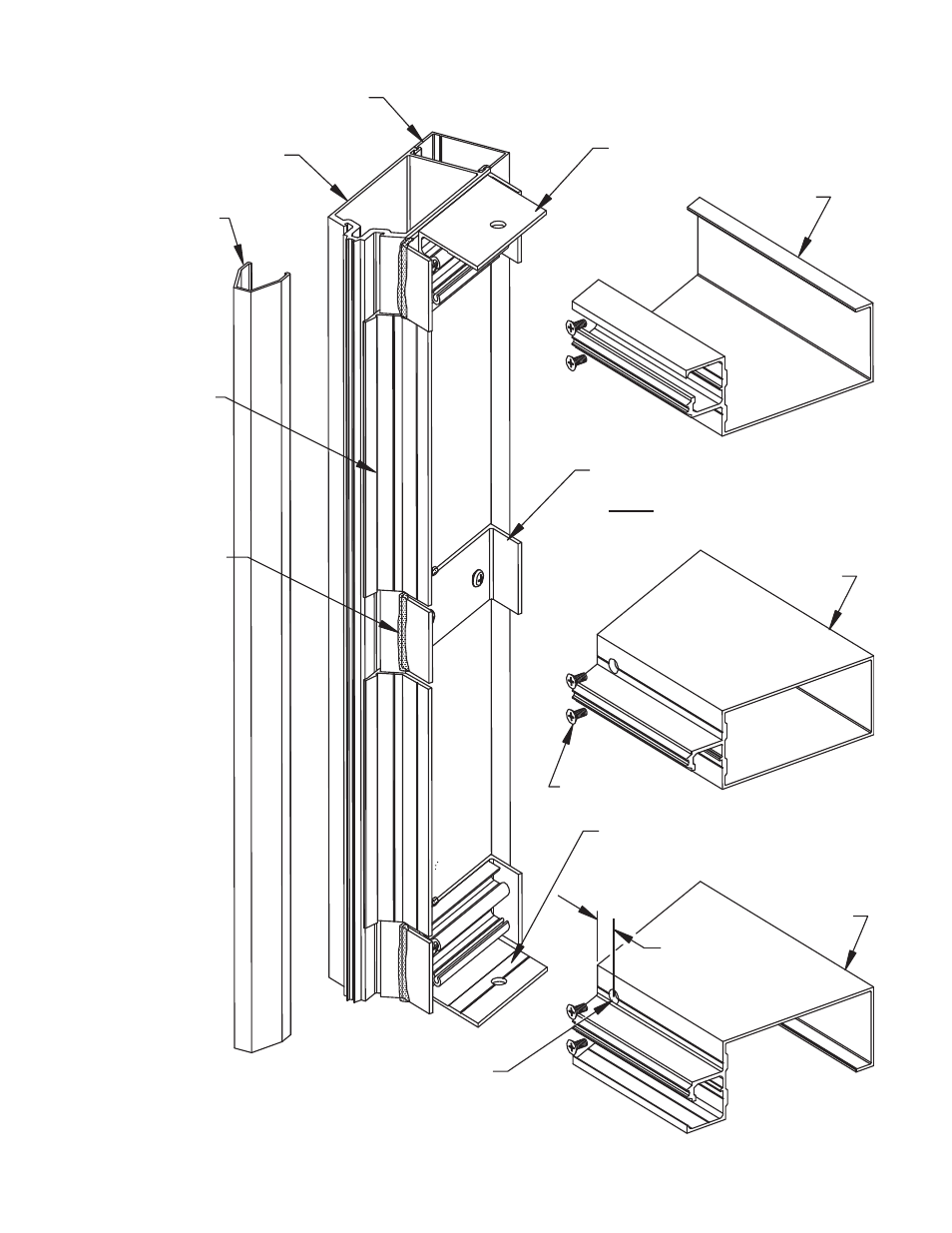

SSG 135 INSIDE CORNER ASSEMBLY
65 February 2012
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
CW-169
CW-161
CW-23
CW-12
CW-12
CW-1
FS-42 (TYP)
CAP SEAL
DRILL 7/32" CLEAR HOLE AND
C'SINK 7/16" DIA. FOR #12 PFH
NOTE:
DO NOT USE CW-13 OR CW-14
HORIZONTALS AT CORNERS.
CW-168 ADAPTOR
CUT DLO - 1/16"
3/4" TYP.
SEAL TYP. , ALSO
SEAL OFFSET OF
HORIZONTAL TO
MULL ASSEMBLY.
*
* USE HOLES IN HORIZONTAL TO MATCH
DRILL (#17 (.173 dia) HOLES IN SHEAR BLOCK
CW250-FP-51
CW250-FP-50 (OPP SIDE)
CW250-FP-50
CW250-FP-51 (OPP SIDE)
CW250-FP-52 (TYP)
