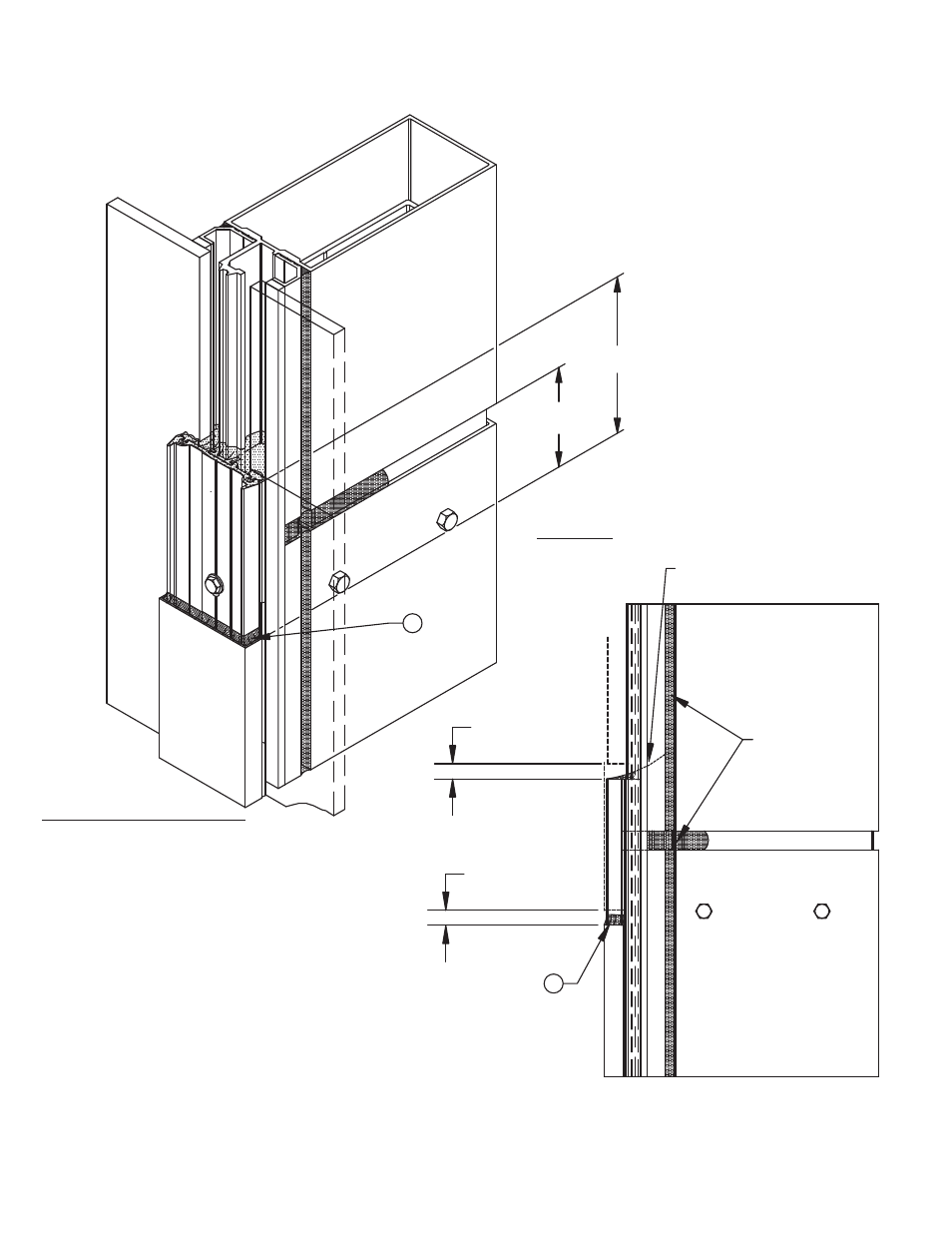

SPLICE SEALANT INSTRUCTIONS
30 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
2 1/2"
4 1/2"
1/2" FACE CAP
SPLICE
1/2" PRES. PLT.
SPLICE
SEE NOTE #5
SEALANT INSTRUCTIONS:
1) SEAL MULLION AND SPLICE AS SHOWN IN
DETAILS 1 & 2, SHEET 28
2) INSTALL "DENVER" FOAM ROD AS SHOWN IN
DETAIL 3, SHT 29
3) APPLY NON-HARDENING NON-SKINNING
SEALANT ON TOP AND FRONT SURFACES
OF "DENVER" FOAM AS SHOWN IN
DETAIL 4, SHT. 29
4) INSTALL LOWER PRESSURE PLATE AND FILL
VOID INSIDE GLAZING CAVITY TO TOP OF
PRESSURE PLATE.
SEE DETAIL 5.
5) APPLY PREFERRED SEALANT BETWEEN
1/4" GLAZING ADAPTOR AND MULLION IN SPLICE
AREA.
6) INSTALL LOWER FACE CAP AND SEAL TO FACE
OF PRESSURE PLATE.
7) NOTE: UPPER PRESSURE PLATE AND FACE CAP
NOT SHOWN FOR CLARITY.
DETAIL 5
6
6
NOTE: SEALANT SLOPE AND
DRAIN AREA BETWEEN PRES.
PLATES AND AT LOWER FACE
CAP.
