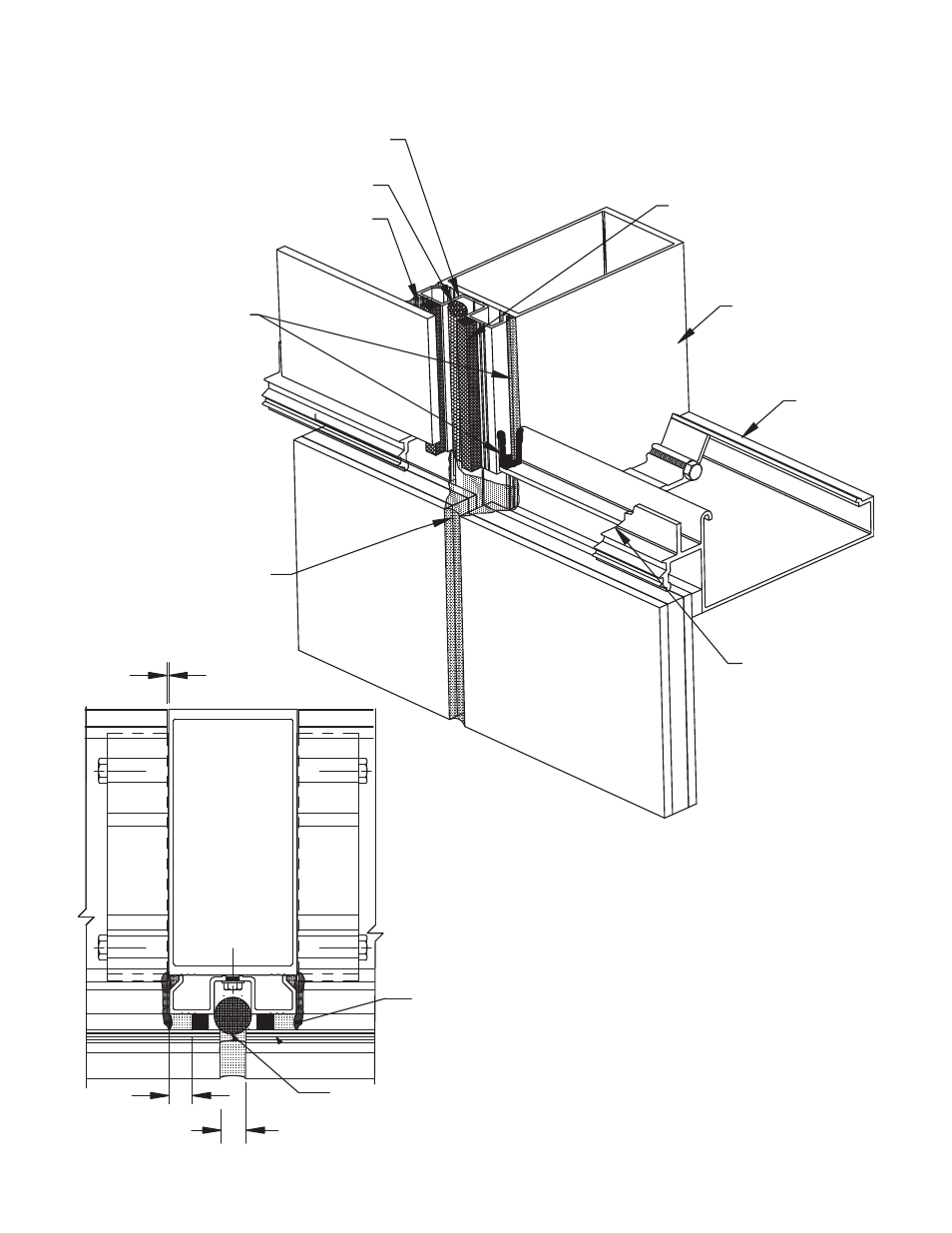

SSG DETAIL AT 1/4” GLAZING ADAPTOR
54 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
CW-14
CUT AWAY FOR
CLARITY
CW-7
CW-11 ADAPTOR
ATTACH W/ FS-322
@ 18" O.C.
STRUCTURAL SILICONE
SEALANT
DIVERTER BEAD
OF SEALANT. SLOPE
SEALANT TO DRAIN
TOWARDS EXTERIOR.
V2110 FOAM SPACER BACKER ROD -
V2110 (5/16" X 5/16" DSA)
STRUCTURAL SEALANT WITH
OPEN CELL BACKER ROD
AND WEATHER SEAL
1/8” MIN FACE CAP JOINT
FOAM SPACER
1/32"
TYP.
*
* NOTE: WIDTH OF STRUCTURAL SILICONE SEAL
AND PLACEMENT OF V2110 TO BE DETERMINED
BY PROJECT REQUIREMENTS.
