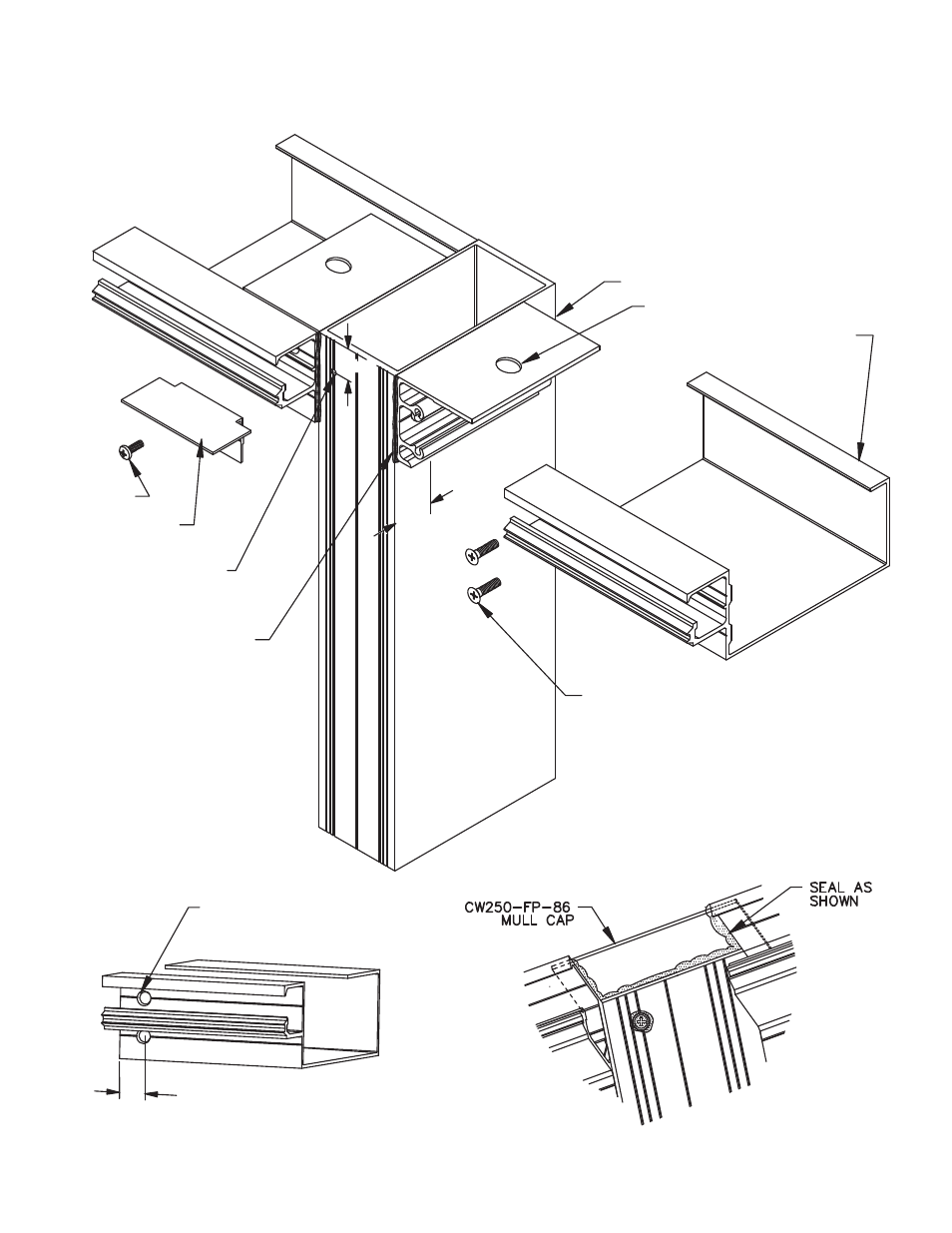

SSG MULL - HEAD INSTALLATION
45 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
HORIZONTAL CUT LENGTH
= D.L.O. - 1/16"
CW250-FP-2
CW250-FP-86
MULL CAP
TYP. SEAL FACE
AND UNDER SHEAR
BLOCK PRIOR TO
INSTALLING HORIZ.
11/16"
FS-202
FS-323
CAP SEAL
ANCHOR HOLES (BY OTHERS)
NOTE: FACE OF HORIZONTALS AND
SSG MULLION DO NOT ALIGN
DUE TO SILICONE SPACE
REQUIREMENTS. SEAL
OFFSET AFTER ASSEMBLY.
3/4"
DRILL 7/32" CLEAR HOLE AND
C'SINK 7/16" DIA. FOR #12 PFH
9/16"
#17 (.173 dia)
DRILL THRU FOR
#8 FASTENER
