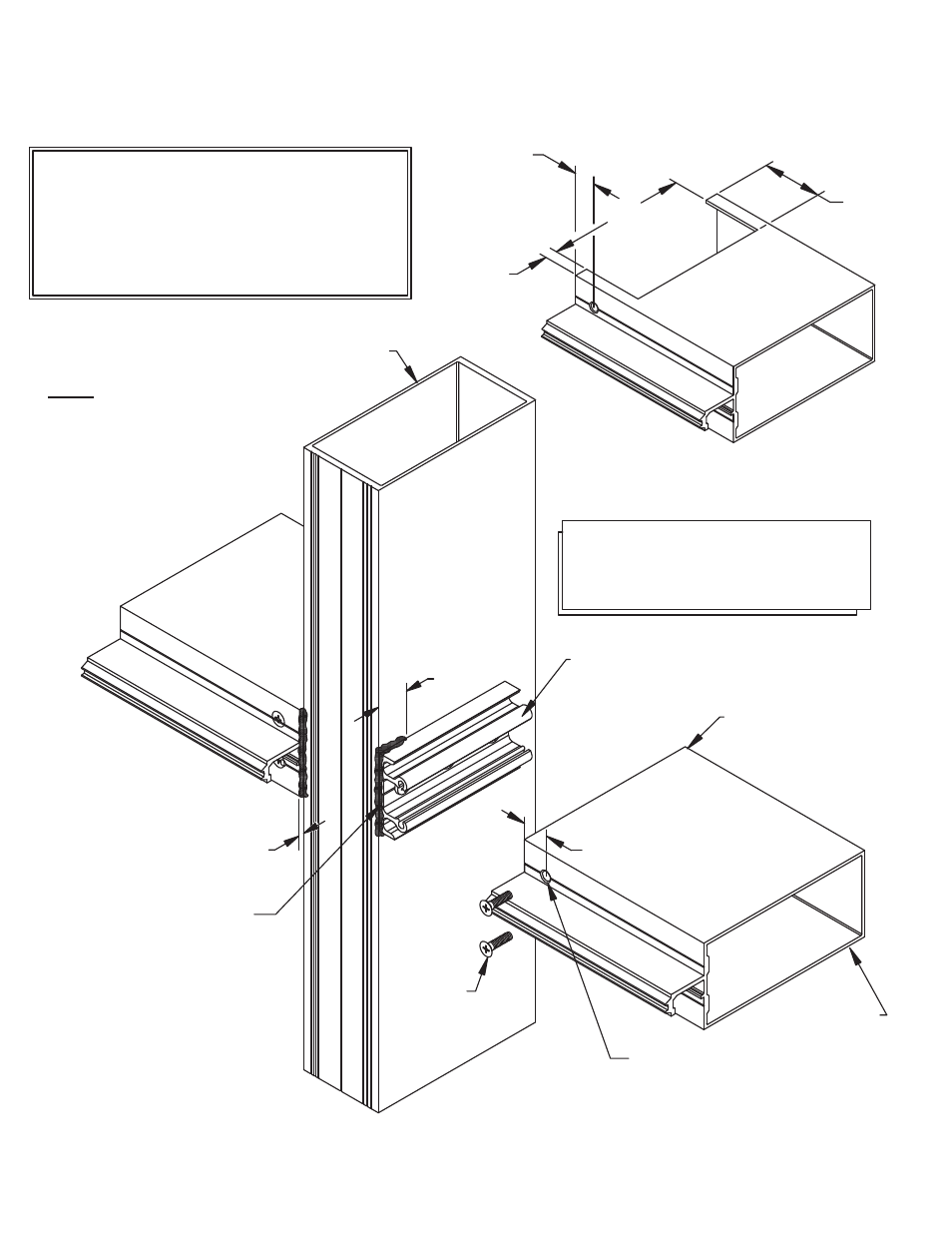

SSG MULL - HORIZONTAL INSTALLATION
46 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
NOTE:
HORIZONTAL CUT LENGTH TO BE
D.L.O. - 1/16" WHEN HORIZONTAL IS
NOTCHED.
*NOTE: FACE OF HORIZONTALS AND
SSG MULLION DO NOT ALIGN
DUE TO SILICONE SPACE
REQUIREMENTS. SEAL
OFFSET AFTER ASSEMBLY.
*1/8
DRILL 7/32" CLEAR HOLE AND
C'SINK 7/16" DIA. FOR #12 PFH
3/4"
3/4" WHEN HORIZONTAL
IS NOT NOTCHED
SHEAR BLOCK PRIOR
TYP. SEAL AROUND
TO ASSEMBLY OF HORIZ.
CAP SEAL
FS-323
HORIZONTAL CUT
LENGTH = D.L.O.
CW250-FP-1
CW-1
CW-7
1-1/8"
11/16"
1/2"
4-1/2"
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
NOTE: CW-1 HORIZONTAL IS NOTCHED AT
TOP WHEN ABOVE EYE LEVEL. NOTCHED
AT BOTTOM WHEN BELOW EYE LEVEL. THIS
METHOD OF INSTALLING HORIZONTALS
SHOULD BE USED AT THE END OF A RUN.
CONVENTIONAL METHODS MAY BE USED
FOR THE REMAINING WALL.
