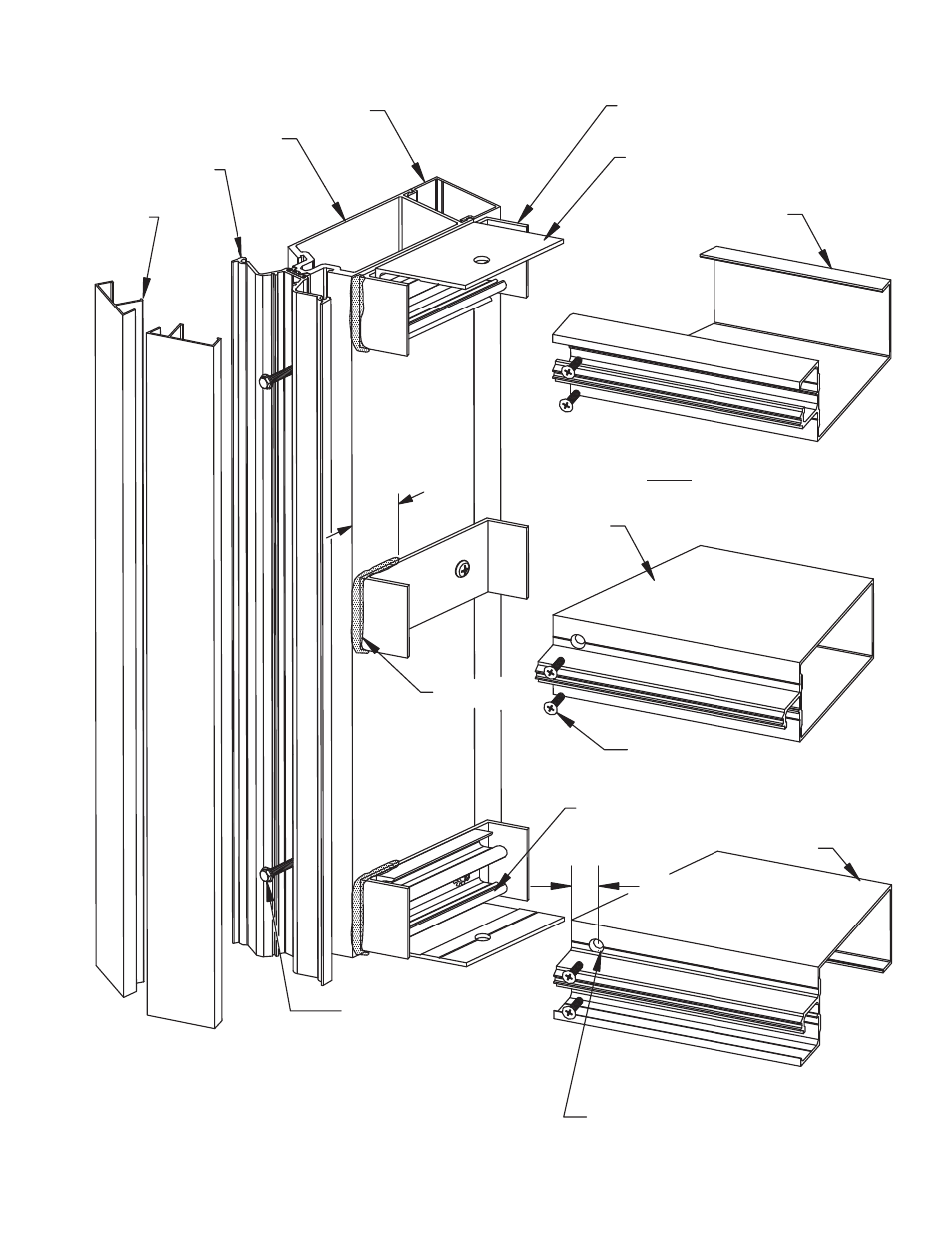

135 OUTSIDE CORNER ASSEMBLY O
38 February 2012
Web Address: www.oldcastlebe.com
Phone: 1-866-OLDCASTLE (653-2278)
CW-166
w/ CW-6
(2) CW-167
CW-161
CW-23
CW-12
CW-12
CW-1
FS-322
@ 12" O.C.
FS-42 (TYP)
CAP SEAL
NOTE:
DO NOT USE CW-13 OR CW-14
HORIZONTALS AT CORNERS.
1" TYP.
3/4"
SEAL TYP.
DRILL 7/32" CLEAR HOLE AND
C'SINK 7/16" DIA. FOR #12 PFH.
USE HOLES IN HORIZONTAL
TO MATCH DRILL (#17 (.173 dia)
HOLES IN SHEAR BLOCKS.
*
*
CW250-FP-50
CW250-FP-51 (OPP SIDE)
CW250-FP-52 (TYP)
CW250-FP-51
CW250-FP-50 (OPP SIDE)
C W - 2 5 0 C U R T A I N W A L L I N S T A L L A T I O N M A N U A L
