AVer IWH5000 series - Manual (Page 202)

194
 Email Notice Setting
- Notice Interval: Set the period of time before it sends another e-mail notice.
- Embedded image: Select the image size and set the number of frames.
- Attach image when sensor is triggered: When the sensor is triggered, the system
will capture the image and send the image to the certain e-mail address with the
alarm message.
 Modem Dial up Setting
User may set the time to disconnect automatically, just enable the Auto Disconnect
after check box and set time.

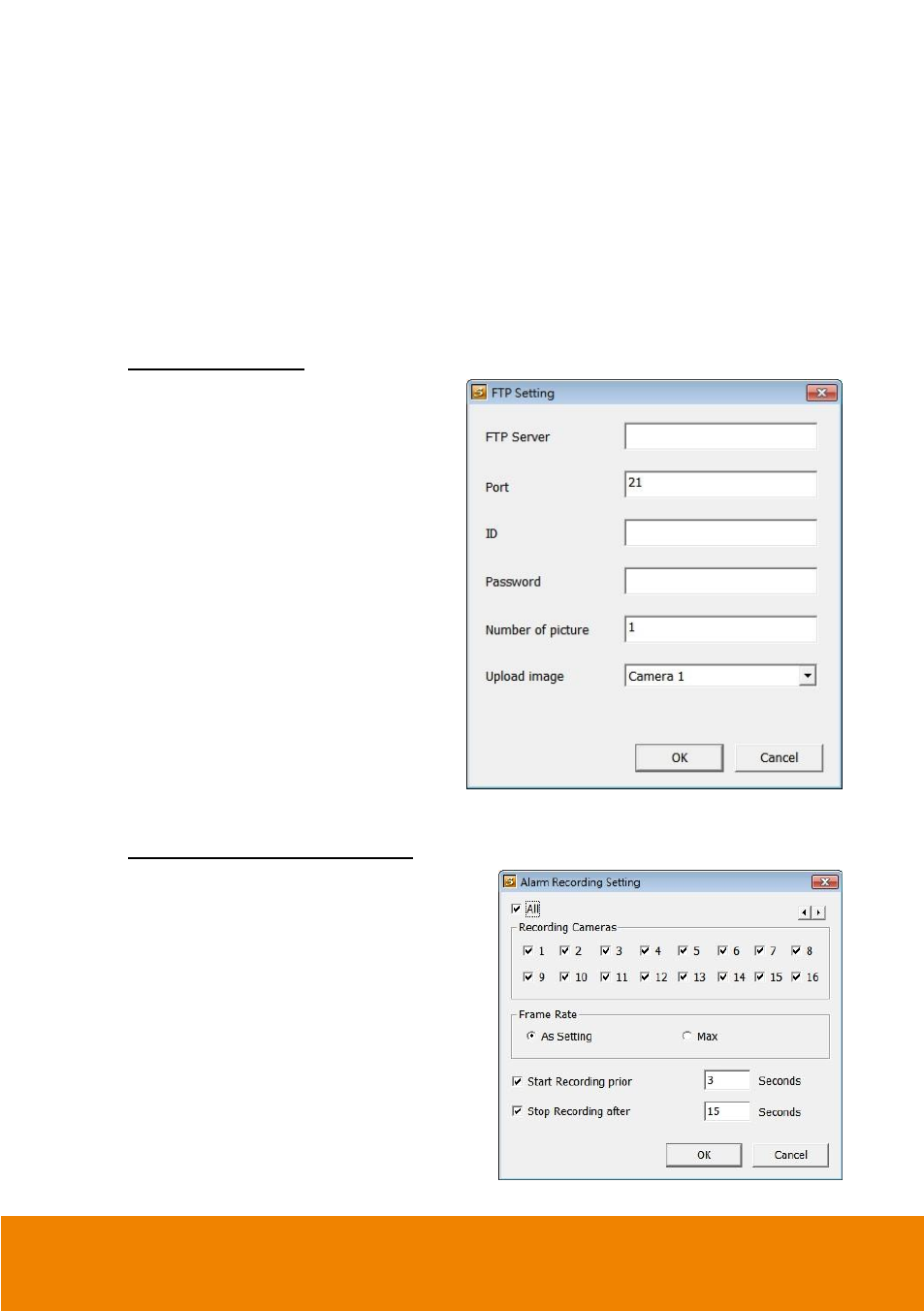

To Setup FTP Setting
1. Next to the File Transmission via
FTP check box, click Detail.
2. In the FTP Setting dialog box, enter
the FTP IP, port, user ID and
password.
3. In Number of Pic text box, enter the
number of sequence images that
want to send when file is transmitting.
The maximum number of picture can
be transmitted are 16.
4. In Upload image when sensor is
triggered, select the camera that the
images will be capture and send
when the sensor is triggered.
5. Click OK to exit and save the setting
and Cancel to exit without saving
the setting.
To Setup Alarm Recording Setting
1. Next to the Start Recording check box,
click Detail.
2. In the Alarm Recording Setting dialog
box, select the camera to enable/disable
video recording. Enable All to select all
cameras.
3. In the Frame Rate selection, select As
Setting to record the number of frames
based on the Recording Setting or Max
to record the maximum of frames based
on the available speed.
