5.4

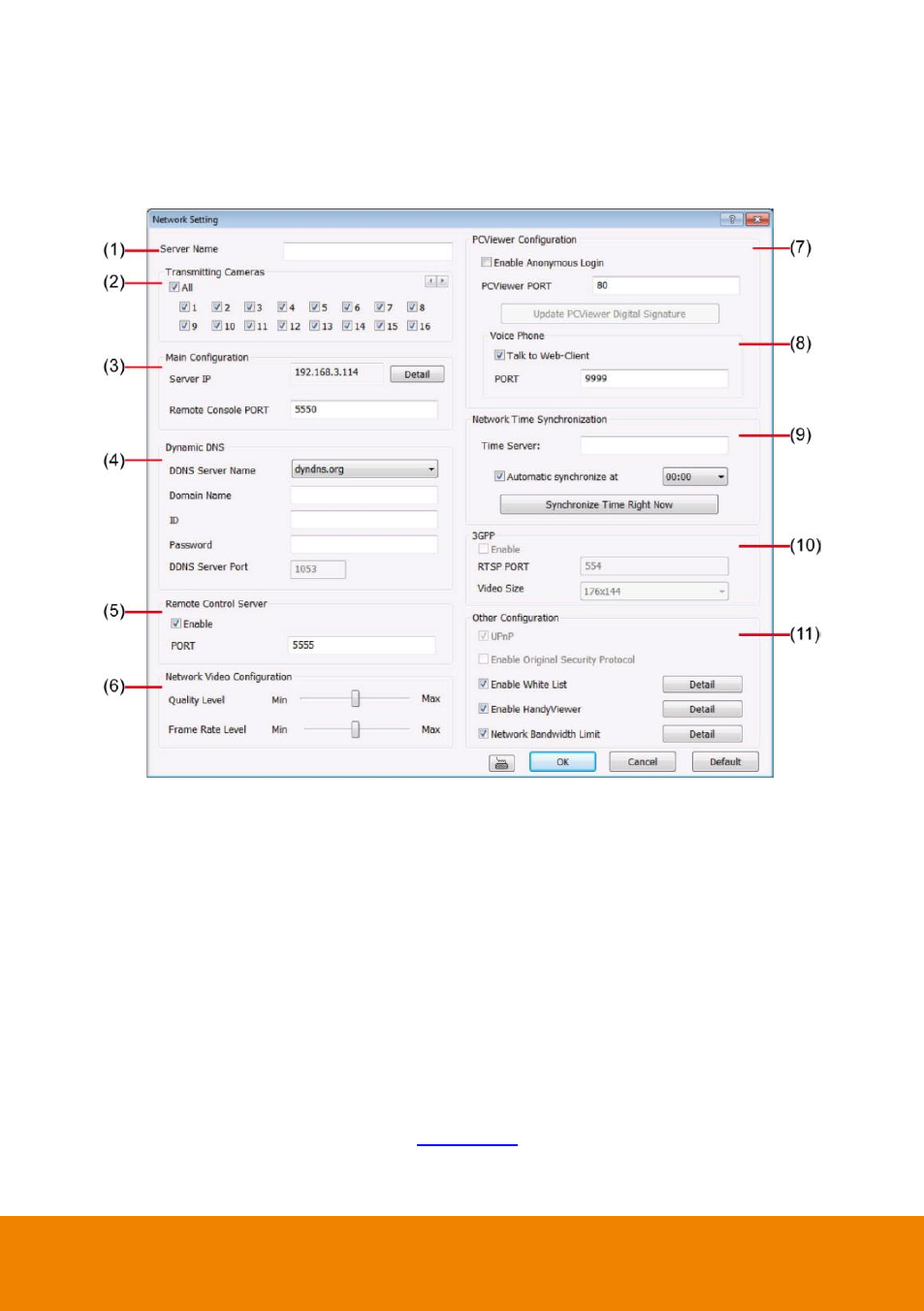

Network Setting
In the Network Setting dialog box, click OK to accept the new settings, click Cancel to exit without
saving, and click Default to revert back to original factory setting.
(1) Server Name
Assign a name for the DVR unit. Letters of the alphabet and numbers only.
(2) Transmitting Cameras
Select and click on the camera number in the Transmitting Camera section you want to make it
accessible via internet using PCViewer, Remote Console, PDAViewer and HandyViewer (still
image). To select all the cameras, enable the ALL check box.
(3) Main Configuration
Click Detail of Server IP that user can modify DVR server
’s IP address in Network Wizard dialog.
Set the Remote Console Port number that user needs this when accessing DVR server from the
remote location via internet. Click Detail to view more information.
(4) Dynamic DNS (Domain Name System)
Enter the Domain Name and Password. To use this feature, go to http:or
http://dyndns.org and register. (see also
) You will be prompted to enter CD key
number, product name, password, and user information. Use this service if the IP address
changes each time when you connect to internet.
