AVer IWH5000 series - Manual (Page 157)

149

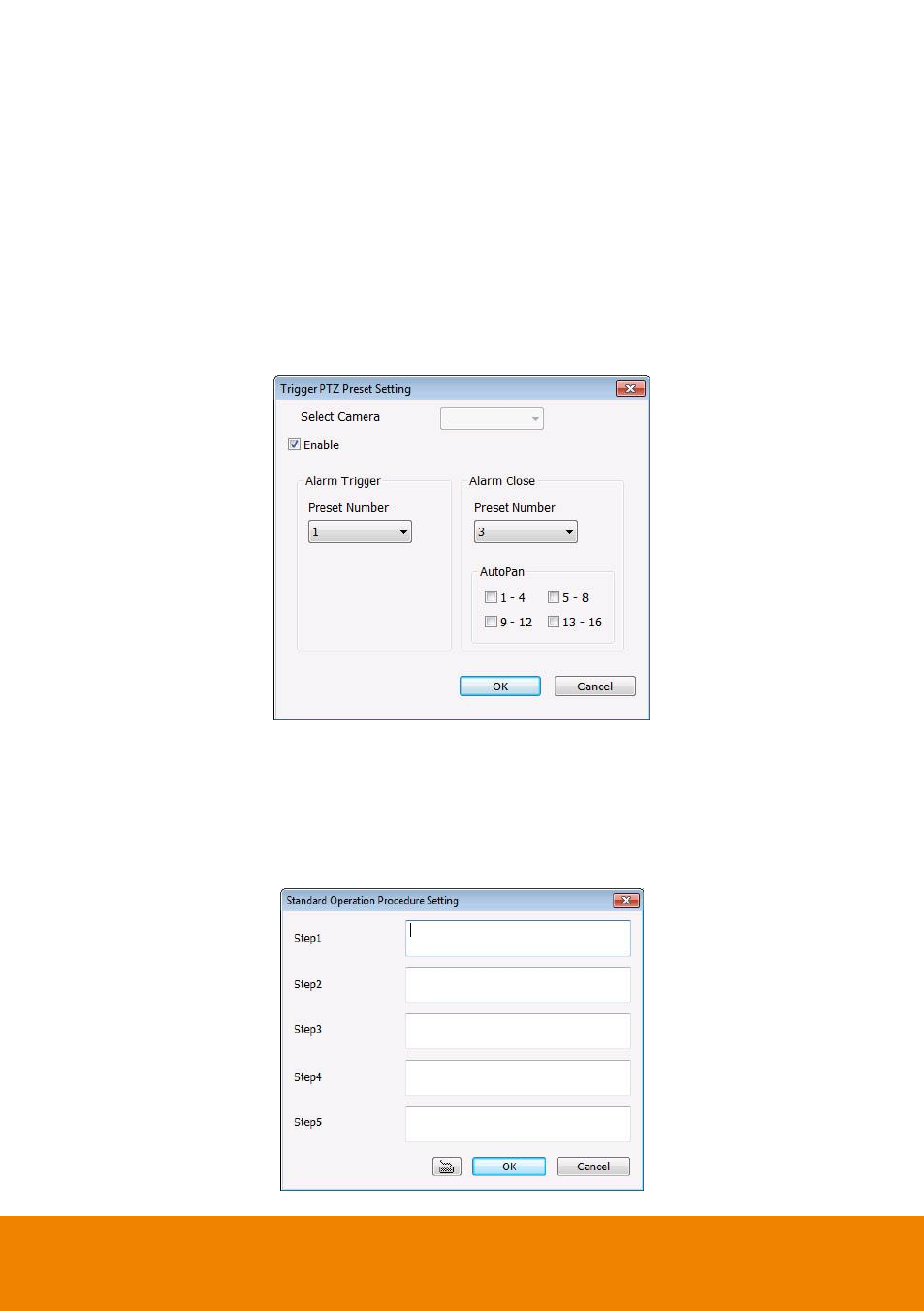

5.9.7 To Setup PTZ Preset Point
Next to the PTZ preset point check box, click Detail.
1. Select Camera: In the Trigger PTZ Preset Setting dialog box, select the PTZ camera
number.
2. Enable: Mark Enable check box to enable.
3. Alarm Trigger: Select the position of the PTZ camera when the alarm is activated
4. Alarm Close: Select the position of the PTZ camera when the alarm is ended.
5. AutoPan: For the PTZ camera ended point, user also can select Auto Pan preset position
groups.
6. Click OK to accept the new settings and Cancel to exit without saving.
5.9.8 To Setup Alarm SOP:
Next to the Alarm SOP check box, click Detail. In the step text boxes, type the standard protocol
when the alarm is activated. When the alarm is activated the Standard Operation Procedure dialog
box will appear. Just click Next to see the next instruction, Back to see the previous instruction,
Finish to end and Abort to terminate.
