5.9.3 To Setup Send E-mail Setting

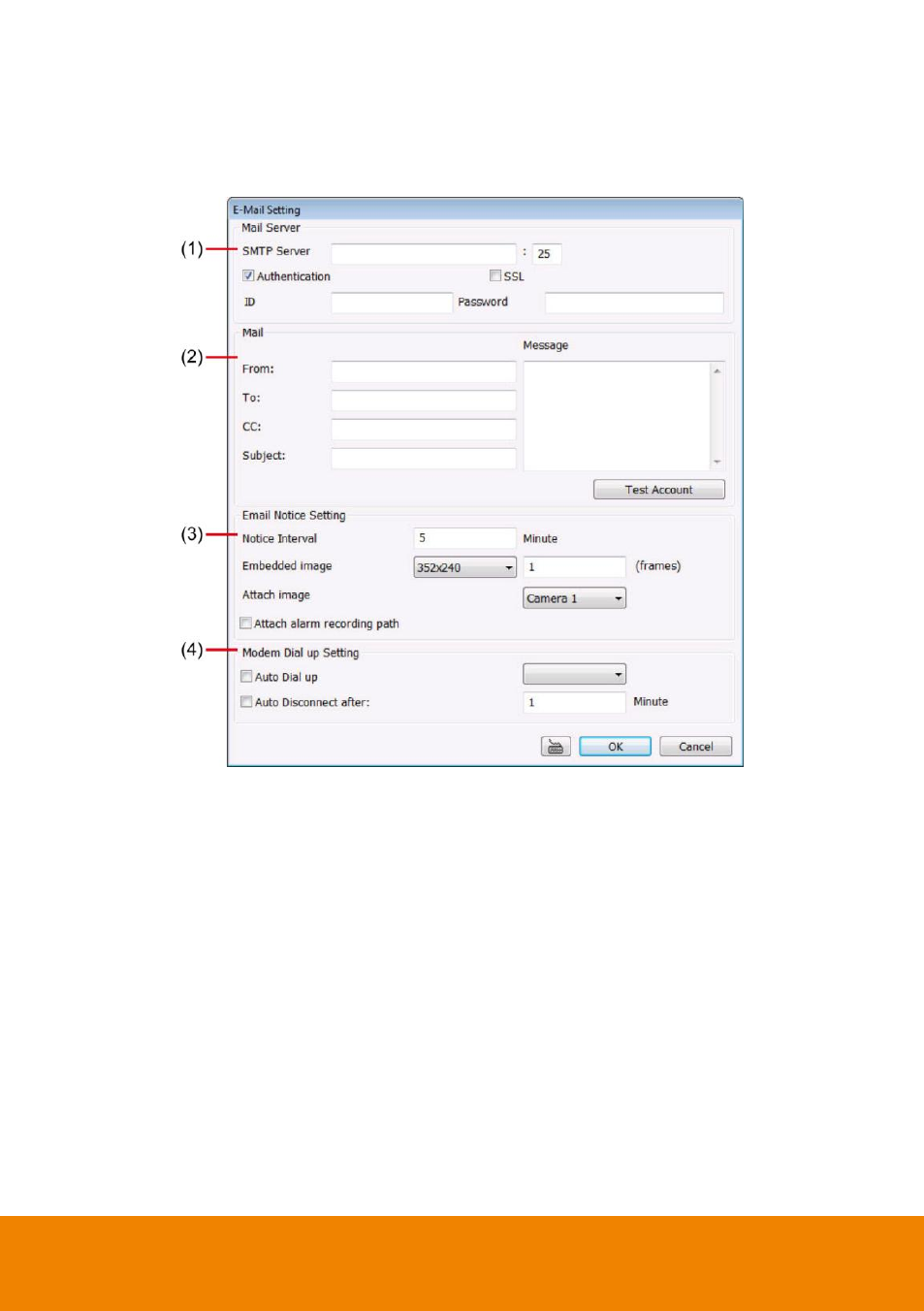

Next to the Send Email check box, click Detail. In the E-mail Setting dialog box, click OK to exit
and save the setting and Cancel to exit without saving the setting.
(1) Mail Server
Enter the SMTP Server and port. If your e-mail system requires user identification, enable
Authentication check box and enter User ID and Password.
(2) Mail
To check if it is working, click Test Account button.
From: Enter the sender e-mail address.
To and CC: Enter the recipient email address and separate it with comma or a semicolon (;).
Subject: Enter the message title.
Message: Type the message.
(3) Email Notice Setting
- Notice Interval: Set the period of time before it sends another e-mail notice.
- Embedded image: Select the image size and set the number of frames.
- Attach image when sensor is triggered: When the sensor is triggered, the system will
capture the image and send the image to the certain e-mail address with the alarm
message.
