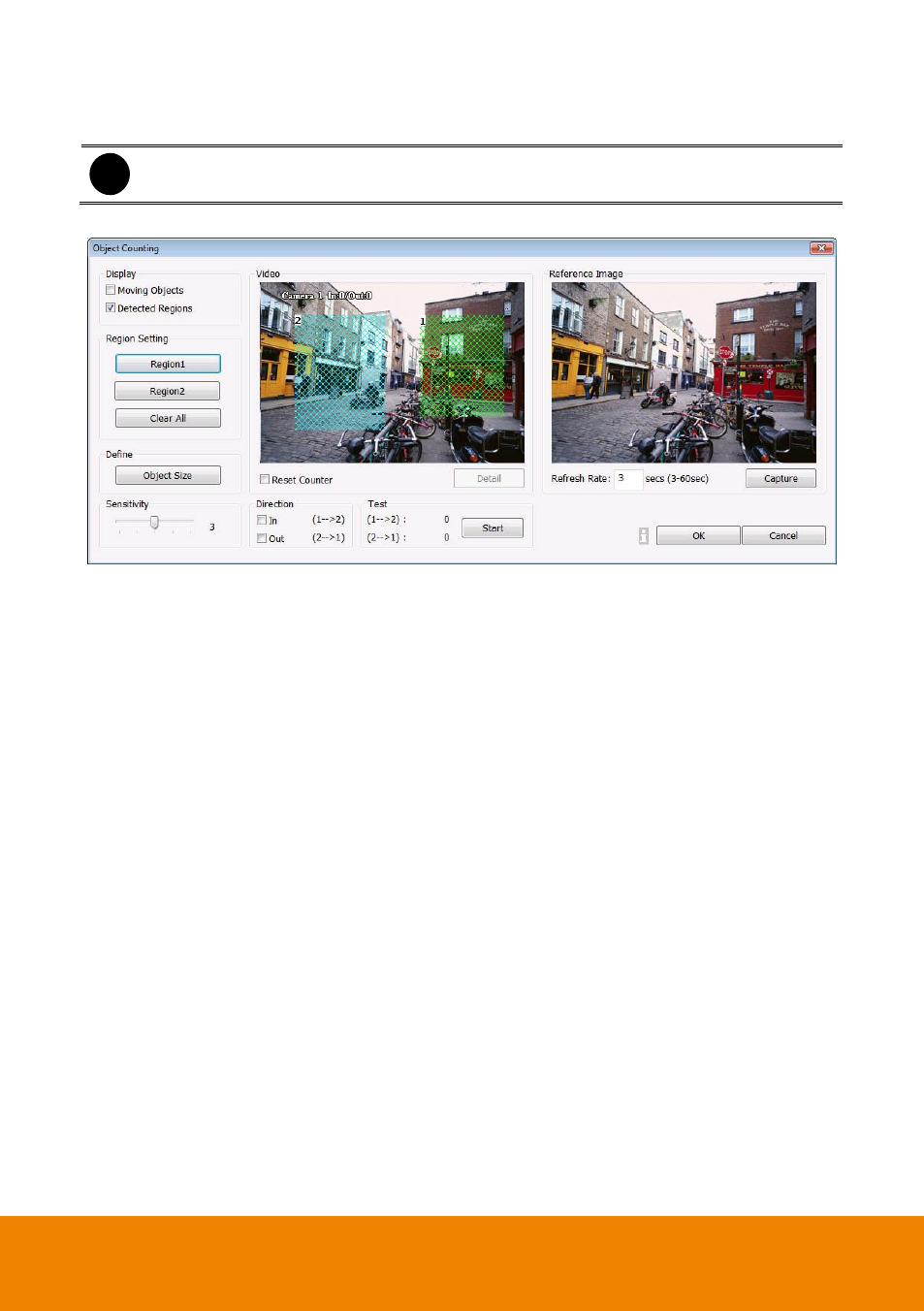

5.2.1 Setup the Object Counting
i
The DVR system only supports 2 channels on object counting.
1. Click Detail to enter the object counting setup window.
2. Enable Detected Regions in Display section. This enables the object counting information
show on the screen. Moving Object will enable the object size frame to show on the screen.
3. In Reference Image, click Save button to capture the image for comparing reference on
object counts. Set the Refresh Rate to re-capture the reference image when the video
screen doesn’t any movement. For example: the refresh rate is 3 seconds and in 3 seconds
there is no any object movement on screen; the DVR system will capture the image to
replace the last captured image for comparing reference.
4. Click Region1 and press left button of mouse and drag the area that user wants the object to
be counted. And then, click Region2 and drag another area that user wants the object to be
counted, too. Those selected regions will mark in different color. The system will count the
objects that move between the selected regions.
5. Click Object size to define the detected object dimensions. Press left button of mouse and
drag on the screen. The size of Object size frame determines the number of object that DVR
system counts. For example: an object passes the area 1 to area 2 and the object size is less
or equal to object size frame; the DVR system counts 1 object. Three objects pass the area 1
to area 2 together and these three object total size is twice of object size frame; the DVR
system counts 2 objects, not the three objects. To see the object size frame on screen,
enable Moving Object in Display section.
6. Adjust the Sensitive of object detecting.
7. To test the setting, mark the Directions (In/Out) want to be test and click Start. The testing
result will show in Test section.
8. Enable Reset Counter to manual or auto reset counter.

Auto reset counter: Select the counter reset by every hour, every 12 hours, or every
day automatically.
