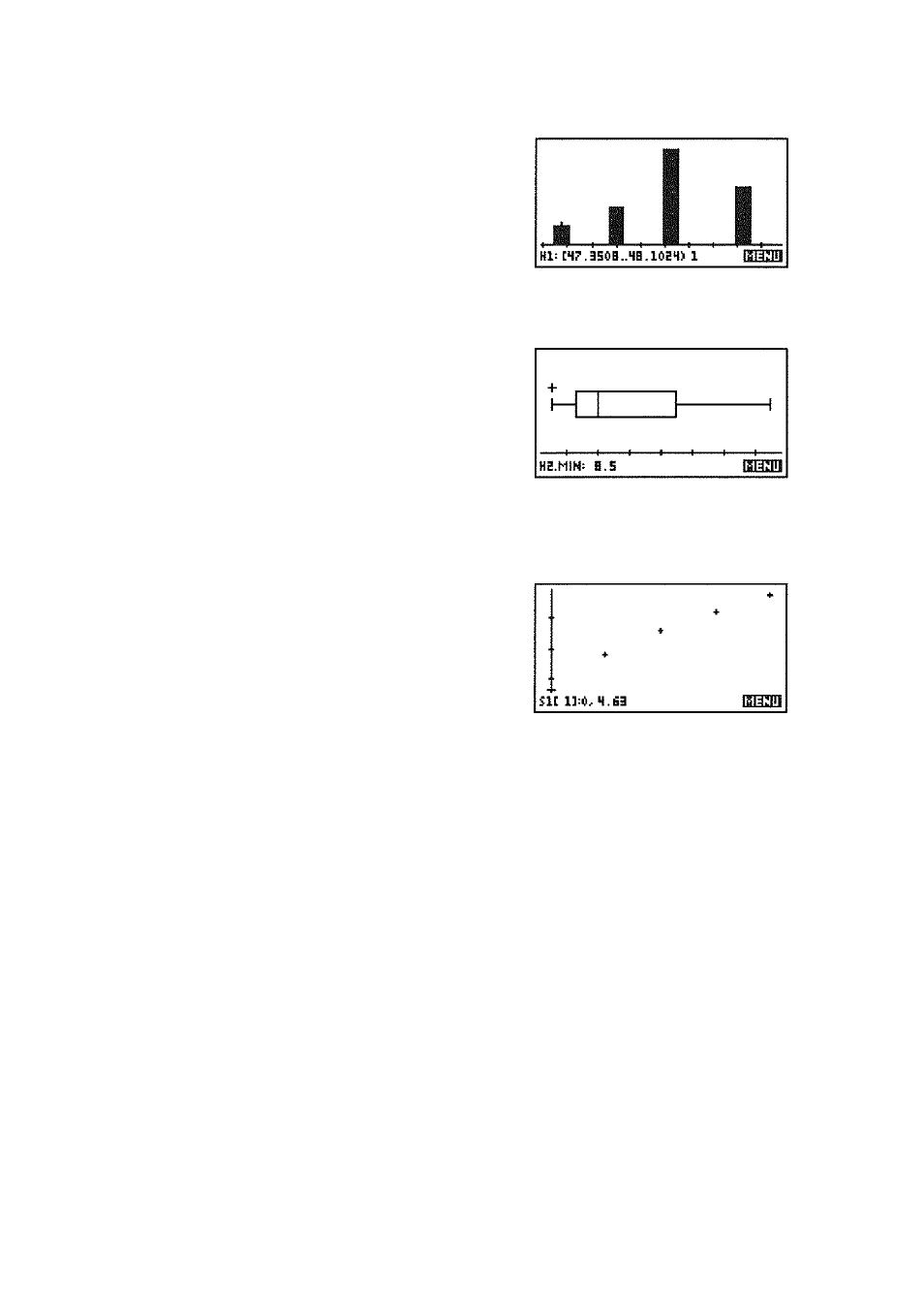

Plot Types

Histogram

Box and

Whisker Plot

Scatter Plot

One-variable statistics.

The

numbers below the plot

mean that the current bar

(where the cursor is) starts at

47.3598 and ends at 48.1024

(not including 48.1024), and

the frequency for this column

is 1.

One-variable statistics.

The

left whisker marks the

minimum data value (MIN)
to the first quartile. The box
marks the first quartile, the
median, and the third

quartile. The right whisker
marks the third quartile to the

maximum data value.

Two-variable statistics.

The

numbers below the plot
indicate that the cursor is at

the first data point for SI, at

(0,4.63), Plot Setup controls

the plotting symbols.

5-20 Statistics
