4-25

FAX-L1000 Chapter 4: Maintenance and Service

(12) Remove the entrance cover.
(13) Disconnect the multi-purpose paper sensor cable.

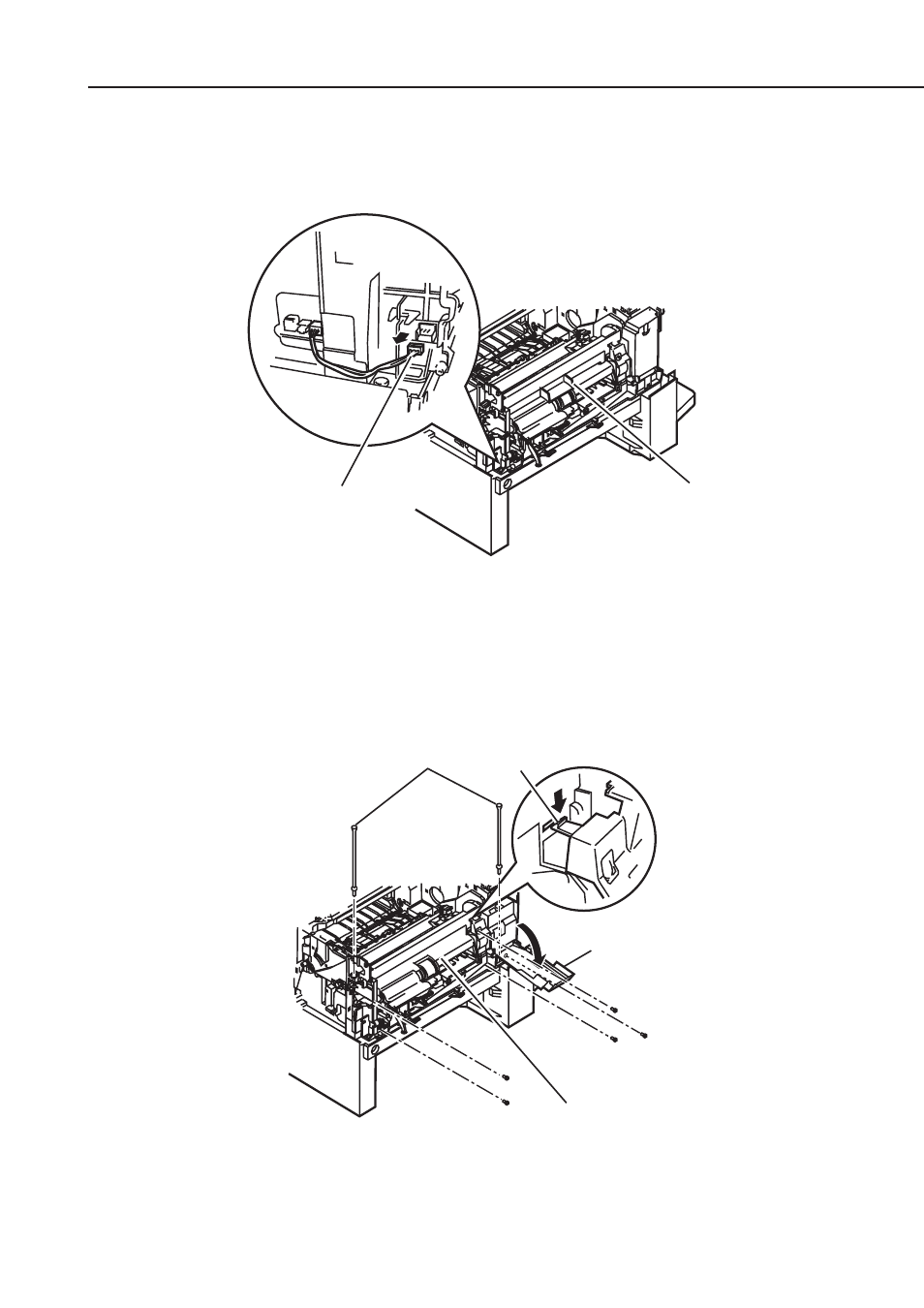

Figure 4-27 Preparation for Cleaning 7

(14) Remove the two long screws.
(15) Remove the one screw of the envelope feeder gear cover. Then, push the claw from the

inside and remove the envelope feeder gear cover.

(16) Remove the multi-purpose pick-up ass’y.

Figure 4-28 Preparation for Cleaning 8

Multi-purpose paper sensor cable

Entrance cover

Envelope feeder gear cover

Claw

Multi-purpose pick-up ass'y

Long screw
