Figure 3-24 drum cleaning – Canon FAX-L1000 User Manual
Page 198
3-54
FAX-L1000 Chapter 3: Technical Reference
d-1) Drum cleaning

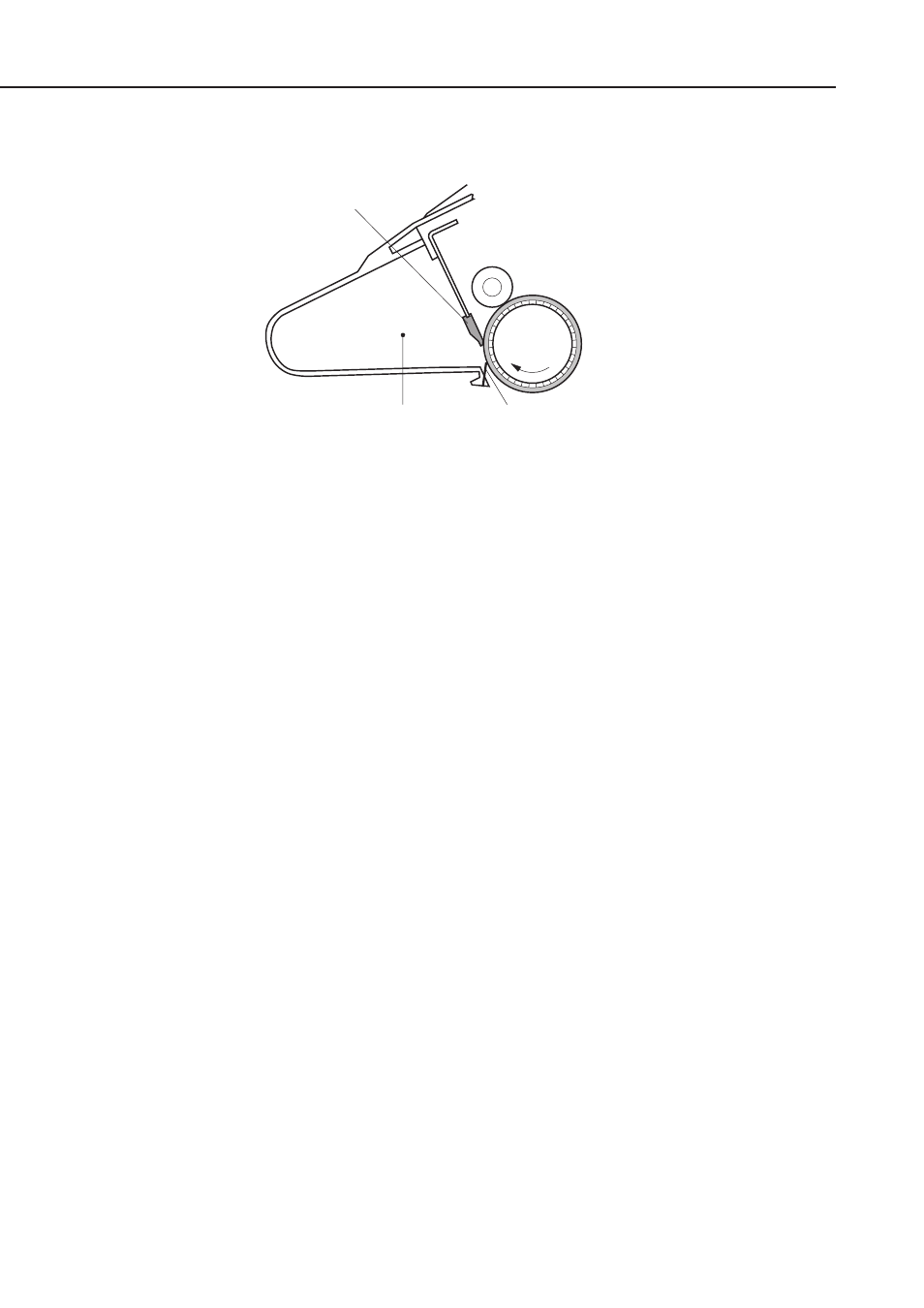

Figure 3-24 Drum Cleaning
The residual toner on the drum surface is scraped away with the cleaner blade to clean the
drum surface in preparation for the next print. The removed waste toner is collected into
the waste toner case.
Waste toner case
Cleaner blade
Sweeper strip
Photo-
sensitive
drum
