Redundancy 87

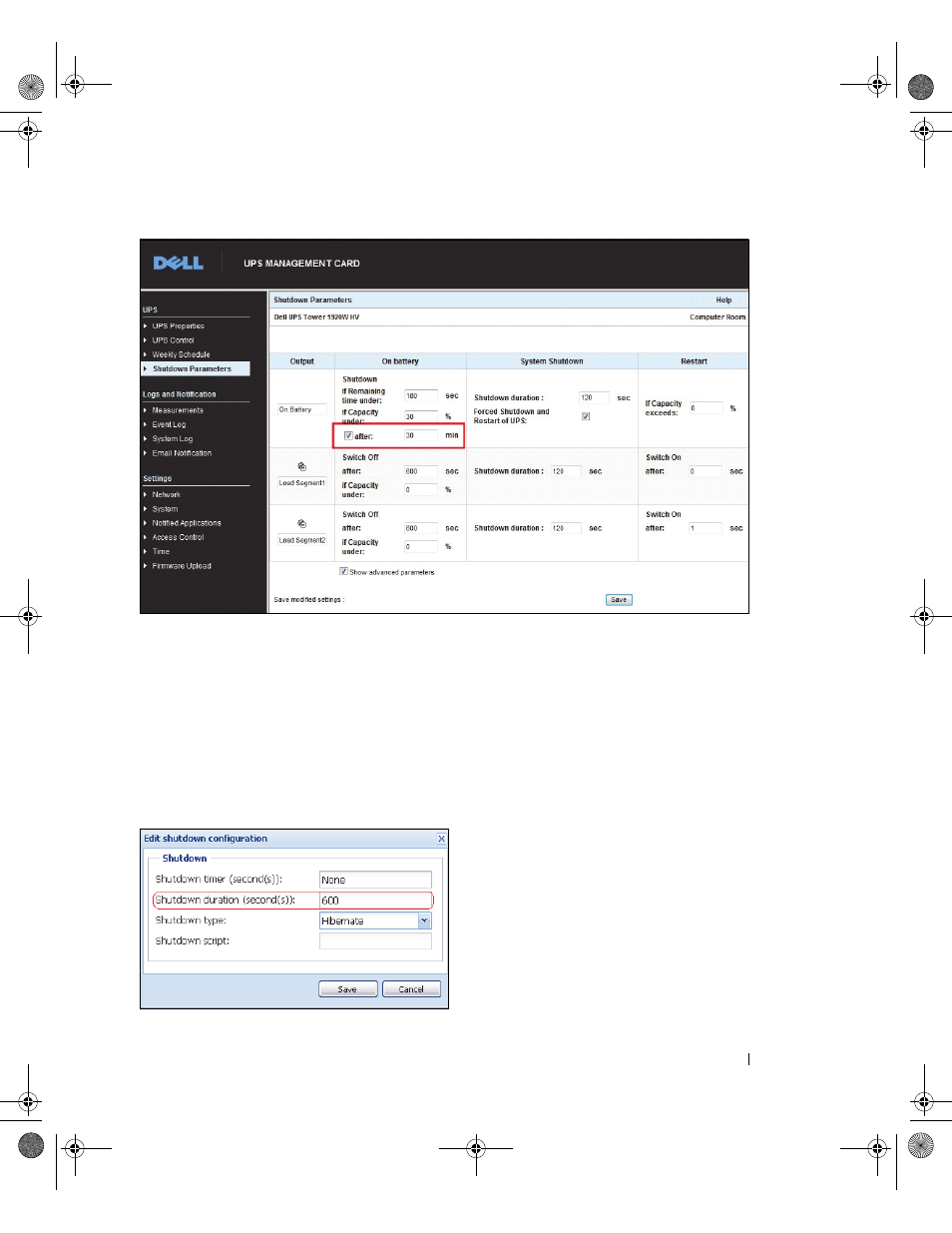

Figure 70. Dell Network Management Card Shutdown Parameters
Use Case #4
You want to have a shutdown when the remaining time of the last UPS is 10 min. In this case, each server
can have an individual shutdown duration (10 min, 8 min, 3 min…).
• You need to configure a shutdown duration of 10 min in the Dell ULNM.
– Figure 71 illustrates the Dell UPS Local Node Manager default configuration available from
Settings > Shutdown > Edit Shutdown Configuration
.
NOTE: This is the default configuration on the Web/ SNMP UPS Card (refer to the previous use case).
Figure 71. Edit Shutdown Configuration Dialog Box
