Dell UPS 1000T - Manual (Page 34)

Configuration 34

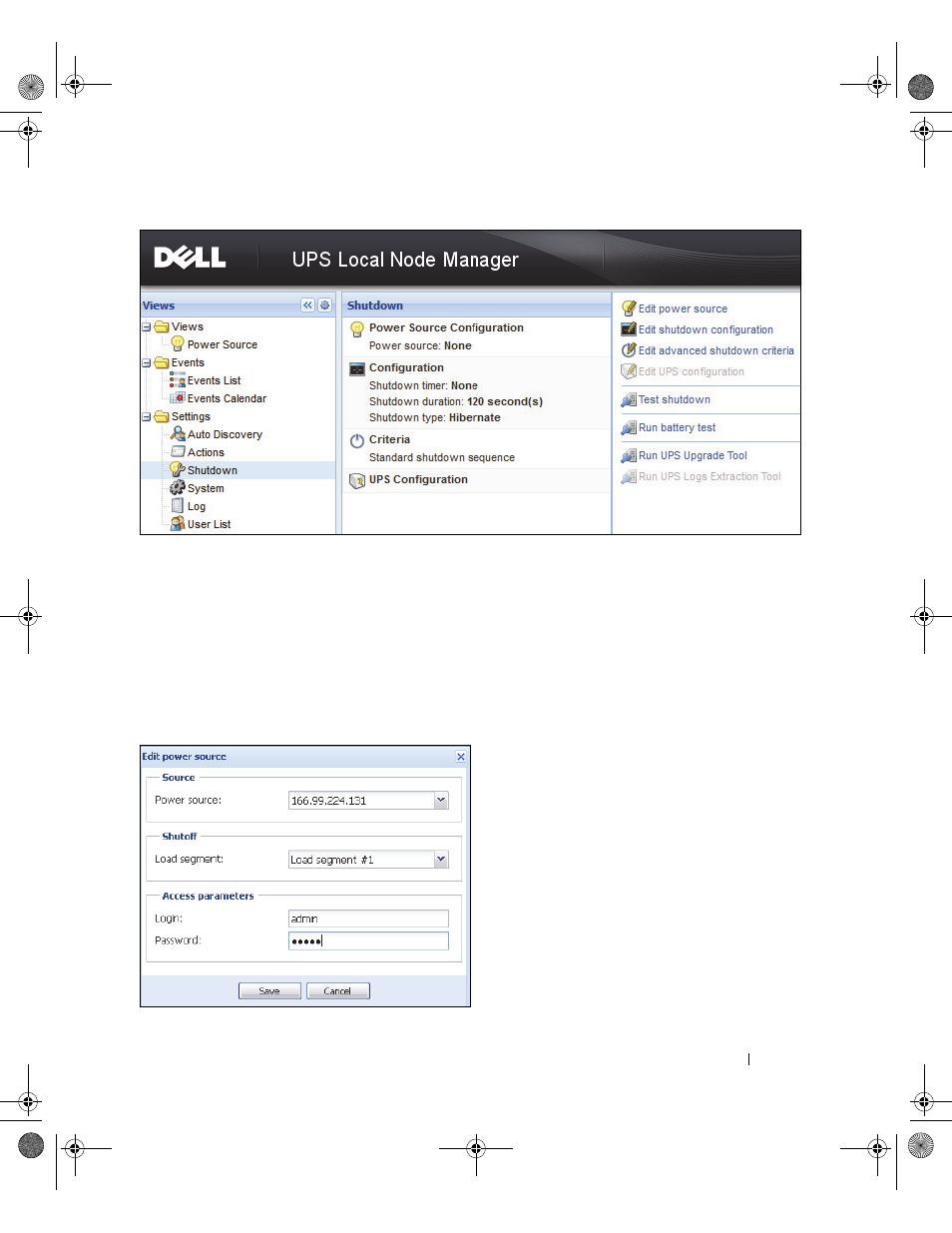

Figure 16. Run UPS Upgrade Tool in Shutdown Panel
Power Source
To configure Power Source:
1 Login with an administrator user profile.
2 Select Settings > Shutdown. The Shutdown page is displayed.
NOTE: You can retrieve the UPS History Logs by clicking Run Log UPs extraction tool.
3 Click Edit Power Source. The Edit Power Source dialog box displays (see Figure 17).
Figure 17. Edit Power Source Dialog Box
0120_3-Dell ULNM UG.book Page 34 Saturday, November 2, 2013 5:34 PM
