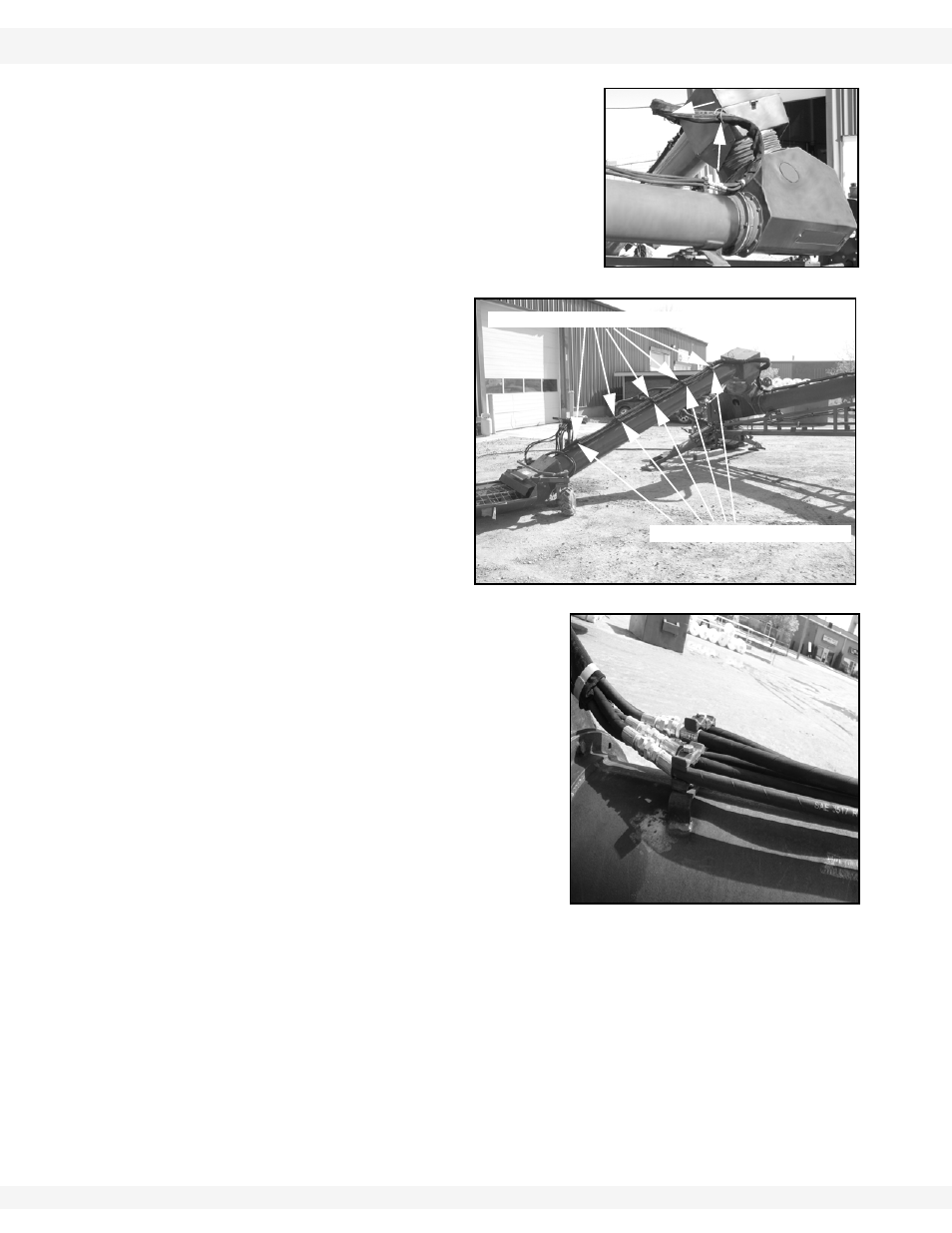

9. Install two hose rings on swing tube spout
with 5/16” X 3/4” bolts and 5/16” whiznuts
as indicated by arrows in Figure 3.67.
10. Use hose bundle marked with 29206
(contains six hoses) and connect to hoses
installed on flex tube. Make sure to match
hose colors to each other and route hoses
through hose ring on spout as shown in
Figure 3.63.
11. Lay hoses on top of swing
tube and secure in place
with five sets of hose
holders as shown in Figure
3.68.
12. Connect hoses on swing
tube to three spool valve.
Refer to Figure 3.61, which
shows how to connect the
hoses and which colors go
to each port.
13. Use hoses labelled 29205
and connect to the remaining hose
ends on the lower flex tube as shown in
Figure 3.69 and 3.61. Secure hoses to
flex tube with hose holders as shown in
Figure 3.69.
Figure 3.67
Figure 3.68
2 HOSE HOLDERS THIS SIDE
3 HOSE HOLDERS THIS SIDE
Figure 3.69
