3. A SSEMBLY W HEATHEART - SA F LEX A UGER
3.1. T UBES & F LIGHTING 71’ - 111’
22 30651 R5

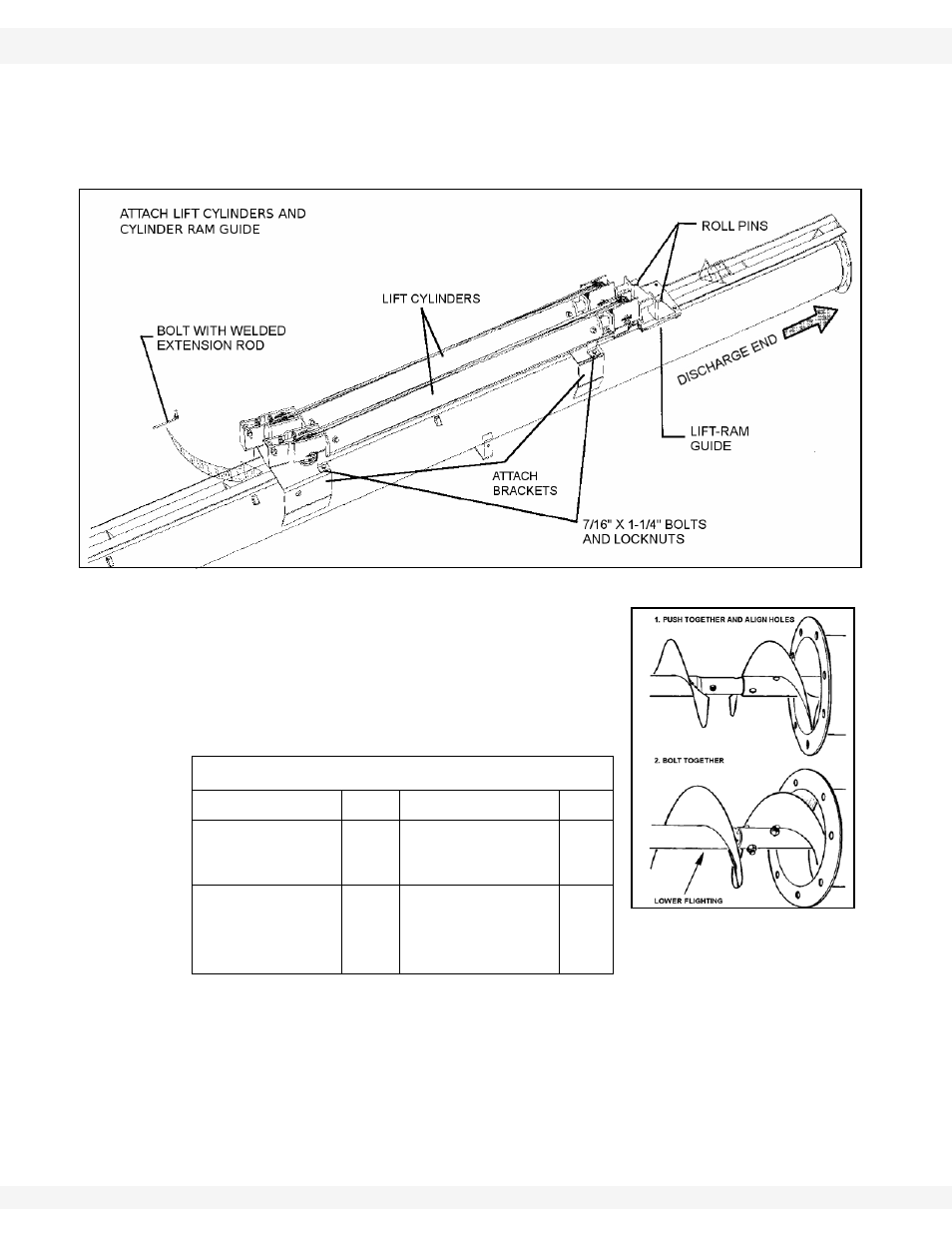

b. Slide the lift ram guide onto track on tube, then insert ram ends into
brackets on guide (Figure 3.1). Secure with two roll pins.
c. Return this tube section to the track down position.
Figure 3.1 111’ Only
3. Slide lower flight shaft onto upper flight shaft
until flight ends butt together and flighting
spiral matches up (Figure 3.2). Secure with
hardware in Table 3.1. Repeat, if necessary,
for any remaining flight shafts.

4. Slide tube sections together and secure. Make sure upper and lower track
ends are aligned (111’ only), and then tighten bolts. Secure with hardware in
Table 3.1.
Important: Do not connect lower auger tube to mid auger tube at this point! (Figure 3.4).
Table 3.1
Details for fastenings:
a
a. Quantity listed is per tube connection.
For Flighting Qty For Tubes Qty
5/8” x 4-1/2” GR8
bolts and lock-
nuts 2
7/16” x 1-1/4” GR8
bolts and locknuts
12
Track End (111’
Only)
5/8” x 2-3/4” GR8
bolt and locknut
1
1/2” x 1-3/4” GR8
bolts and locknuts
(2 top and 2

bottom)
4
Figure 3.2
