3. A SSEMBLY W HEATHEART - SA F LEX A UGER
3.7. T RUSS 71’–91’ 71’ - 111’
34 30651 R5
Note: If there isn’t enough cable, loosen the clamps on the opposite eyebolt and adjust
the cable. Retighten clamps.
9. Tighten the eyebolts on the long cable (2) evenly to take the remaining slack
out of the truss cable. Once the long cable (2) is tightened, repeat for the
short cable (3).
10. Check for proper side-to-side alignment and then tighten the cable clamps on
the cable bridges and the cable return brackets.

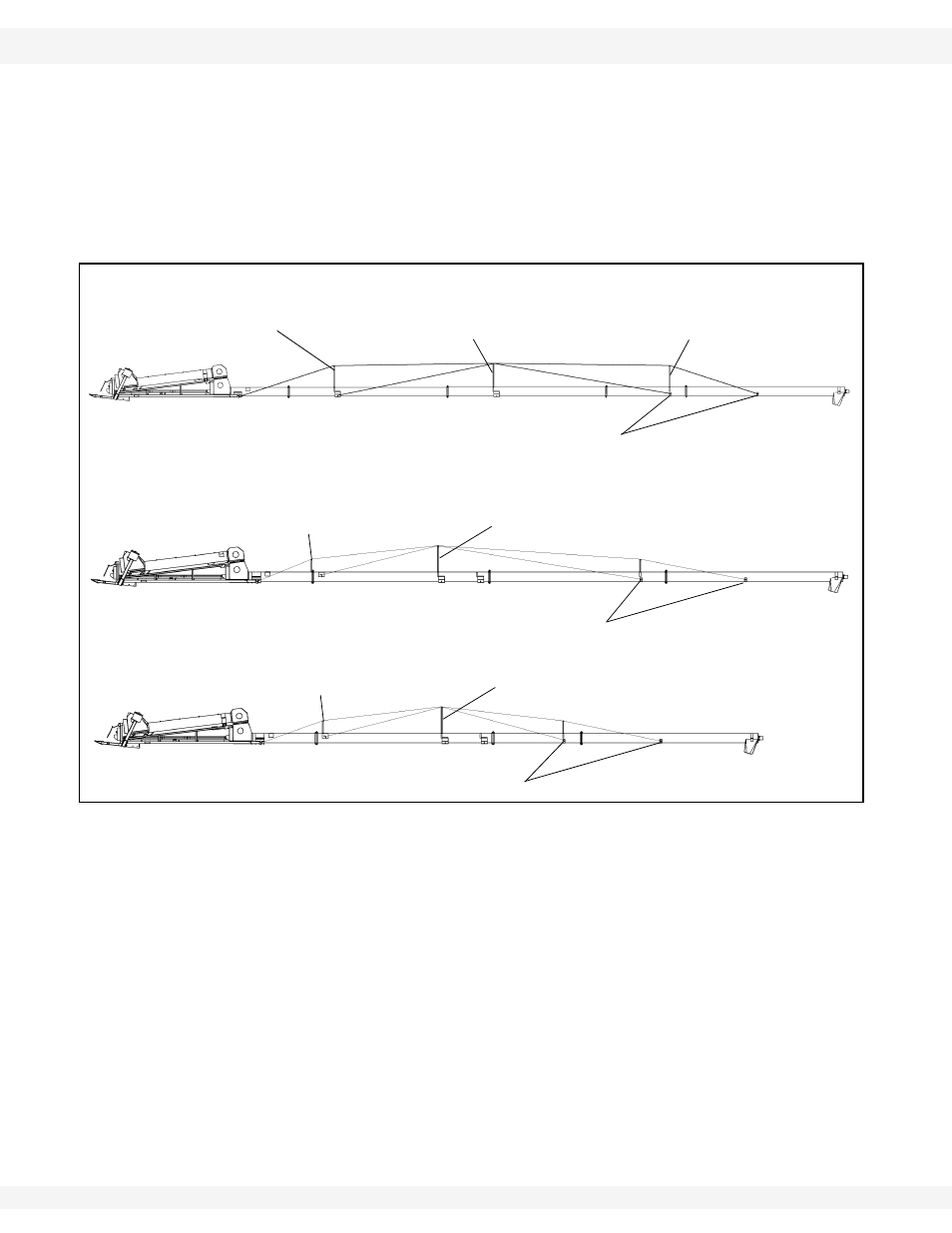

Figure 3.17 Flex 71’, 81’, and 91’ Auger Complete Truss Layout
STANDARD SUPPORT
TRUSS BRACKET
HIGH TRUSS
SUPPORT BRACKETS
ANCHOR BRACKET
STANDARD SUPPORT
TRUSS BRACKET
HIGH TRUSS
SUPPORT BRAKCET
ANCHOR BRACKET
71’
81’
HIGH TRUSS
SUPPORT BRAKCET
TRUSS SUPPORT
BRAKCET
TRUSS SUPPORT
BRAKCET
ANCHOR BRACKET
91’
