3. A
SSEMBLY
71’ - 111’
3.13. H
YDRAULICS
(71’–91’)
30651 R5
55

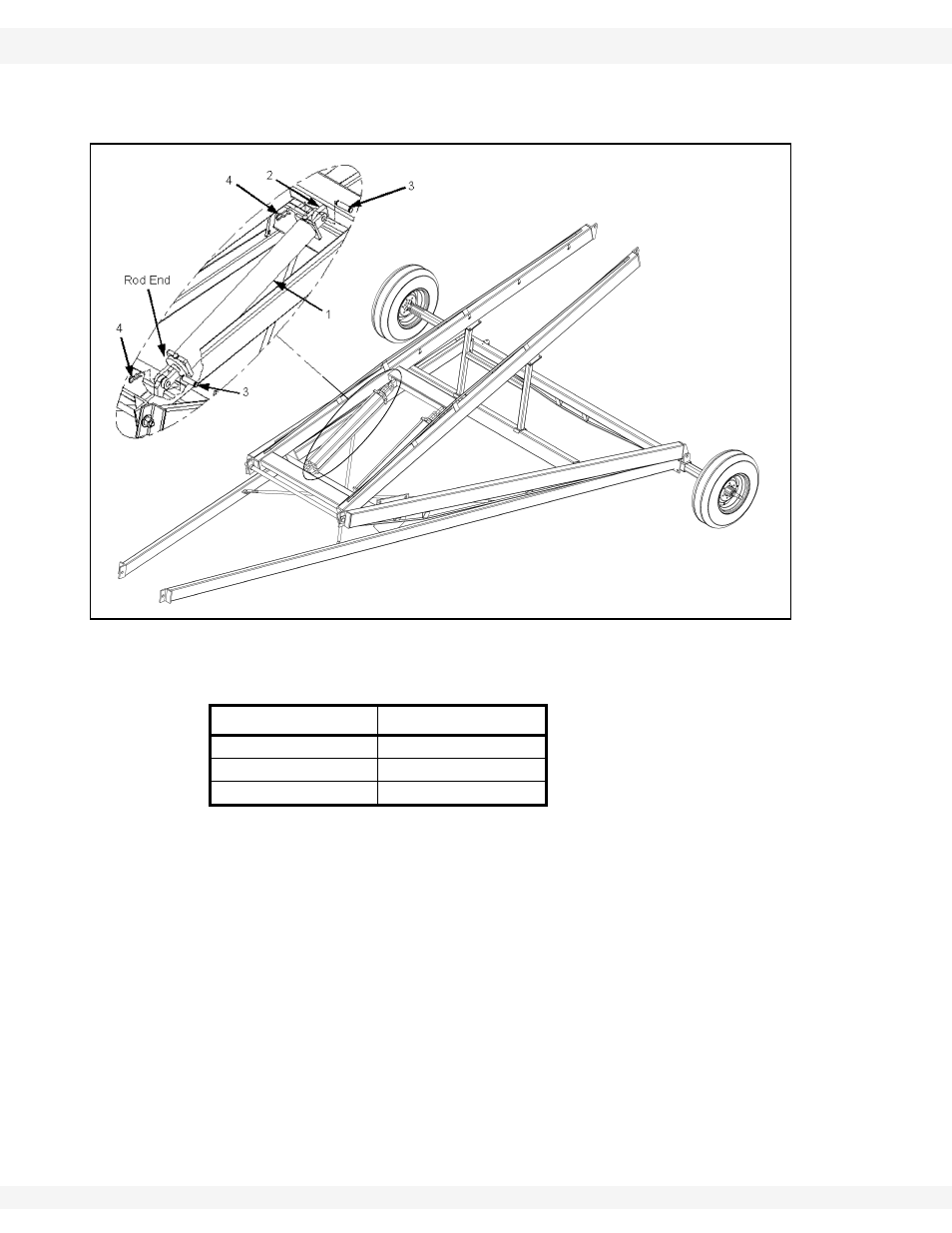

3. Pin the cylinders in place using 1” x 3-3/8” cylinder pins (3) and 1” external
hitch clips (4) (Figure 3.38).
Figure 3.38
V
Table 3.3
Auger
Cylinder
71’
4" x 36"
81’
4" x 40"
91’
4-1/2” x 40"
