W HEATHEART - SA F LEX A UGER 3. A SSEMBLY
71’ - 111’ 3.11. L IFT C ABLES (111’)
30651 R5 51

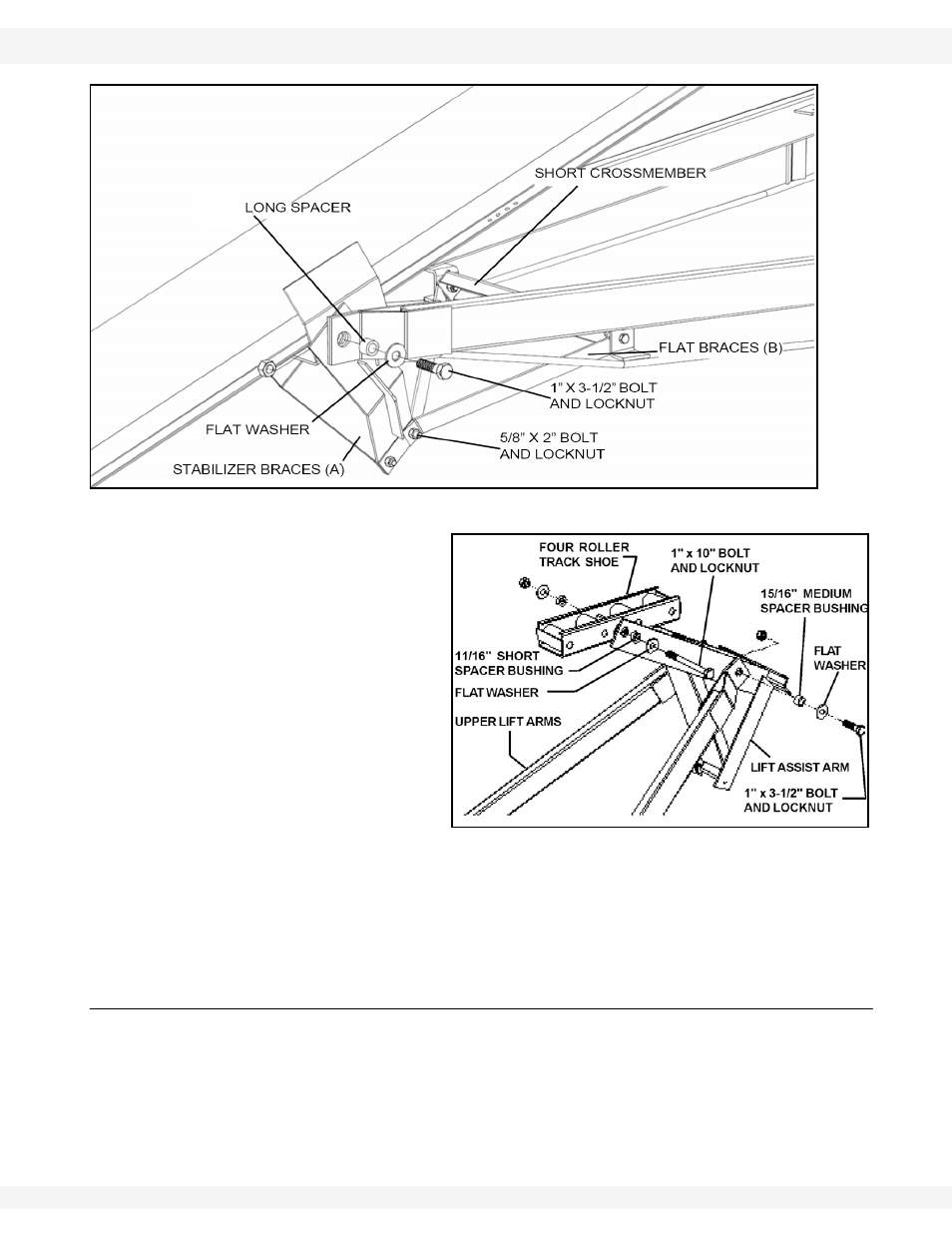

Figure 3.34
13. Fasten flat braces (B)
to first set of holes
(furthest from intake)
on stabilizer braces (A)
with one 5/8” x 2" bolt
and locknut. Place one
5/8” x 1-1/8” bolt and
locknut in other hole of
stabilizer brace.
14. Attach upper lift arms to
center hole on the lift-
assist arms (Figure
3.35) with two 15/16”
medium spacers, flat
washers, and two 1" x
3-1/2” bolts and
locknuts. Tighten securely; lift arms will pivot on the spacer bushings.
15. Lower discharge end of auger slowly until track shoe rests against trackstop
and the lift-assist arm rests against track.
3.11. LIFT CABLES (111’)
1. Seat lift-assist arm against the track and place both lift cylinders in full down
position (fully retracted).
Important: Lift cables may stretch with use. Check frequently and adjust when necessary.
2. Thread the lift cables over the respective pulleys on the lift-assist arm, pull
cables tight, and secure with three 3/8” cable clamps on each cable. Tighten
securely. Do not crisscross cables (Figure 3.36).
Figure 3.35
