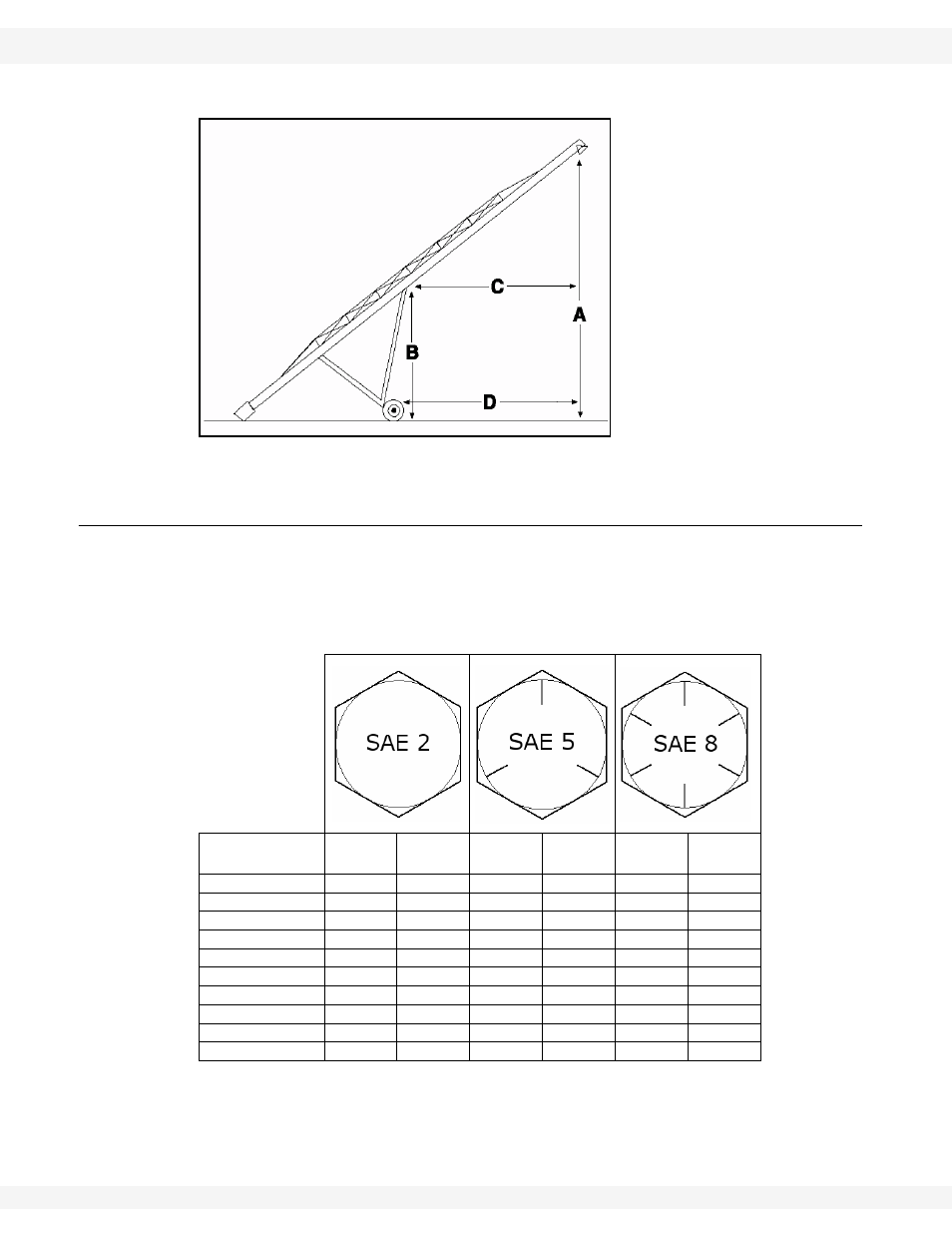

Figure 8.1
8.2. BOLT TORQUE VALUES
The tables shown below give correct torque values for various bolts and
capscrews. Tighten all bolts to the torque specified in the chart unless otherwise
noted. Check tightness of bolts periodically, using bolt torque chart as your guide.
Replace hardware with the same strength bolt.
Table 8.1 Imperial Bolt Torque
BOLT
DIAMETER
(Nm)
(Lb-ft)
(Nm)
(Lb-ft)
(Nm)
(Lb-ft)
1/4”
8
6
12
9
17
12
5/16”
13
10
25
19
36
27
3/8”
27
20
45
33
63
45
7/16”
41
30
72
53
100
75
1/2”
61
45
110
80
155
115
9/16”
95
60
155
115
220
165
5/8”
128
95
215
160
305
220
3/4”
225
165
390
290
540
400
7/8”
230
170
570
420
880
650
1"
345
225
850
630
1320
970
