3. A SSEMBLY W HEATHEART - SA F LEX A UGER
3.3. F LEX A UGER B OOT 71’ - 111’
28 30651 R5
6. Bolt chain guard on boot with four 5/16” x 3/4” bolts and locknuts.
7. Bolt half band and pivot support together with 7/16” x 1-1/4” bolts and
locknuts on flex tube, 24” (61.0 cm) from spout plate. See Figure 3.10.

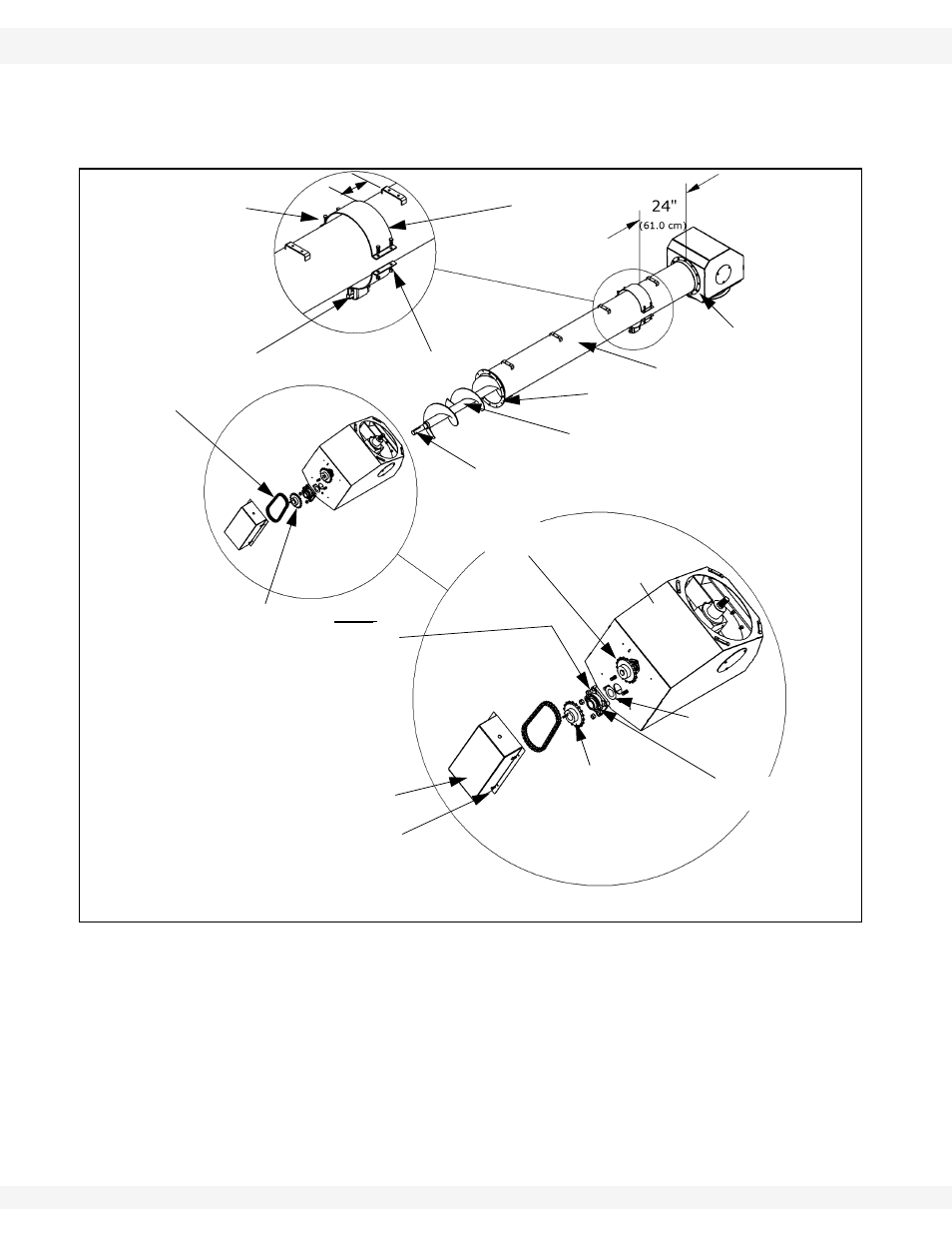

Figure 3.10
HALF BAND
7/16”
LOCKNUTS PIVOT
SUPPORT
FLEX TUBE
7/16” X 1-1/4” BOLT
FLIGHT SHAFT
3/8” X 3-1/2”
SQUARE KEY
LOWER SPROCKET
1-3/4” WIDE
RIM WASHER
5/16” X 3/4” BOLT”
CHAIN
GUARD
9”
UPPER
SPROCKET
FL
EX
B
OO
T
LOWER
SPROCKET
NOTE:
GREASE
ZERK TO
LEFT SIDE
ROLLER CHAIN
7/16” X 1-1/4”
BOLT
1-3/4” BEARING &
FLANGE
SPOUT PLATE
