3. A SSEMBLY W HEATHEART - SA F LEX A UGER
3.15. L OW P ROFILE H OPPER 71’ - 111’
66 30651 R5
5. Insert foldable handle over steering shaft; secure in place with a 3/8” x 2” bolt
and 3/8” flange nut. See Figure 3.45 for right side setup or Figure 3.50 for left
side setup.
6. Place steering stops on each steering shaft but do not tighten set screws until
Step 13.
7. Slide steering arm weldments over motor castors, secure in place with 1/4” x
1” key. Tighten setscrews on each side.
8. Points A and B on steering
arm weldments should point
at main auger. See Figure
3.54 for right side set-up, and
see Figure 3.55 for left side
set-up.
9. Place steering linkage on
holes nearest hopper on
steering arm weldments, see
Figure 3.54, or Figure 3.55.
Adjustment is built into
steering linkage to align tires
parallel to each other if
required. Secure with two

7/16” x 1-1/4” bolts and two

7/16” locknuts. Nuts should
be tight enough to hold
linkage in place but allow it to
move easily when using the steering arm.
10. Insert hydraulic motors
through motor castors and
secure with 3/8” x 1-1/4” bolts
and 3/8” lockwasher (4 bolts
per motor). Ensure motor
ports are installed towards
swing spout, as shown in
Figure 3.55 and 3.46. or 3.50
and 3.51.
11. Place hopper drive wheels on
hydraulic motor shafts,
securing in place with 1/4”
Woodruff key. Tighten
setscrews.
12. Install hopper drive wheel on
wheel hub with four 3/8” x 1”
bolts and 3/8” lockwashers.
13. Once set up for right or left
side use, turn handle so that wheels are 90° to the swing tube. Adjust position
of stops so that wheels cannot be turned further and tighten set screws
(Figure 3.48 for right-side setup, and Figure 3.53 for left-side set-up).
Continue to turn handle to ensure full 90° range.

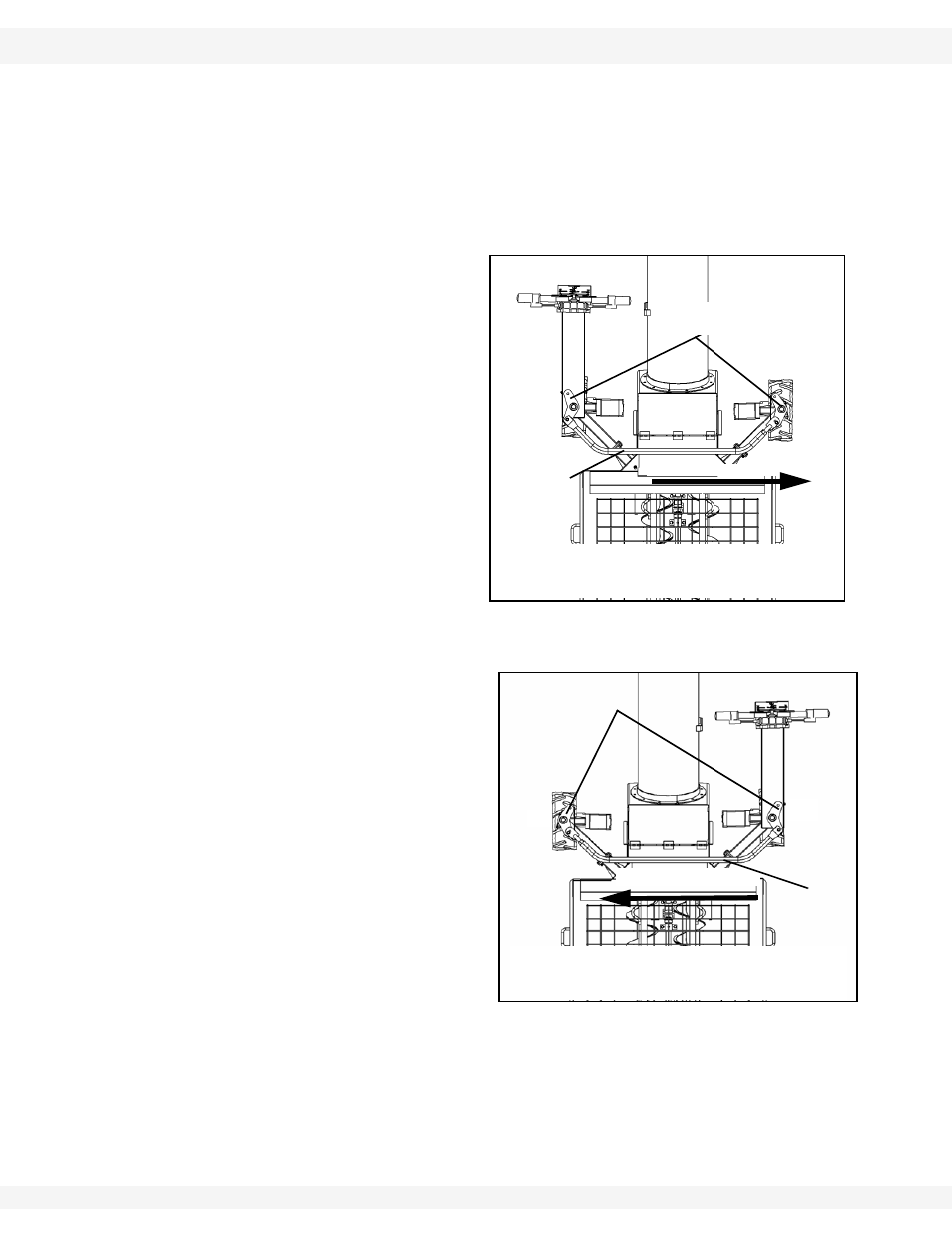

Figure 3.54 Right Side Setup
B
A
MAIN AUGER TUBE
STEERING ARM
WELDMENTS
STEERING
LINKAGE

NOTE: THE STEERING ARM WELDMENTS MUST
POINT TOWARD THE MAIN AUGER TUBE.
Figure 3.55 Left Side Setup

NOTE: THE STEERING ARM WELDMENTS MUST
POINT TOWARD THE MAIN AUGER TUBE.
MAIN AUGER TUBE
STEERING
LINKAGE
STEERING ARM
WELDMENT
B
A
