3. A SSEMBLY W HEATHEART - SA F LEX A UGER
3.15. L OW P ROFILE H OPPER 71’ - 111’
70 30651 R5
Figure 3.60
3.15.4. P
LACING
H
OPPER INTO
T
RANSPORT
P
OSITION
1. Attach cable hook to the loops inside the hopper (Figure 3.57).
2. Fully raise hopper with intake side facing towards the main auger as shown in
Figure 3.57.
3. Secure hopper to lift arm with hopper lock, saddle pin, and hairpin provided.

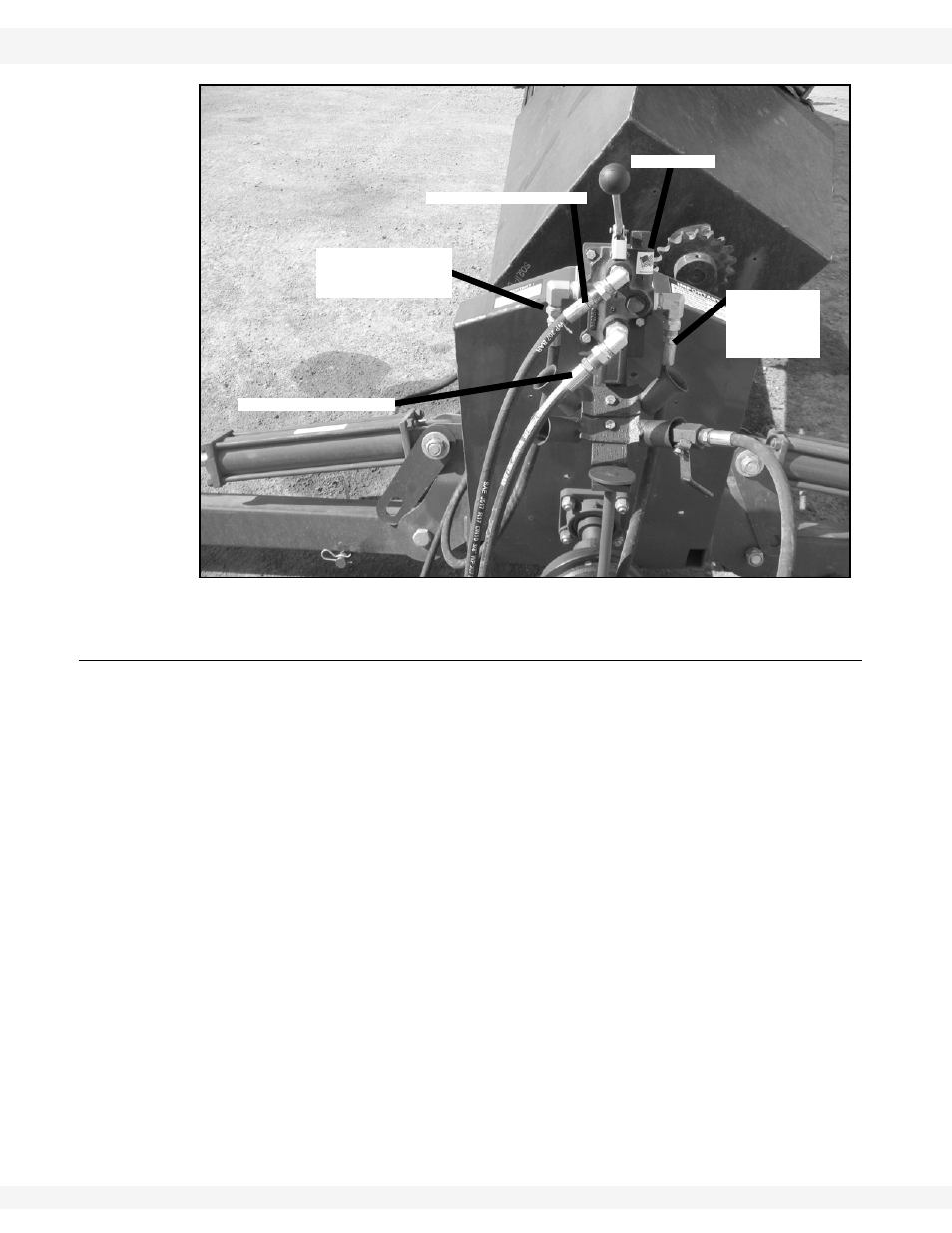

TO TRACTOR
PRESSURE
PORT
(NEW HOSE)
TO 3 SPOOL VALVE
PRESSURE SIDE
(EXISTING HOSE)
TO HYDRAULIC WINCH
TO HYDRAULIC WINCH
NEW VALVE
