W HEATHEART - SA F LEX A UGER 3. A SSEMBLY
71’ - 111’ 3.15. L OW P ROFILE H OPPER
30651 R5 61

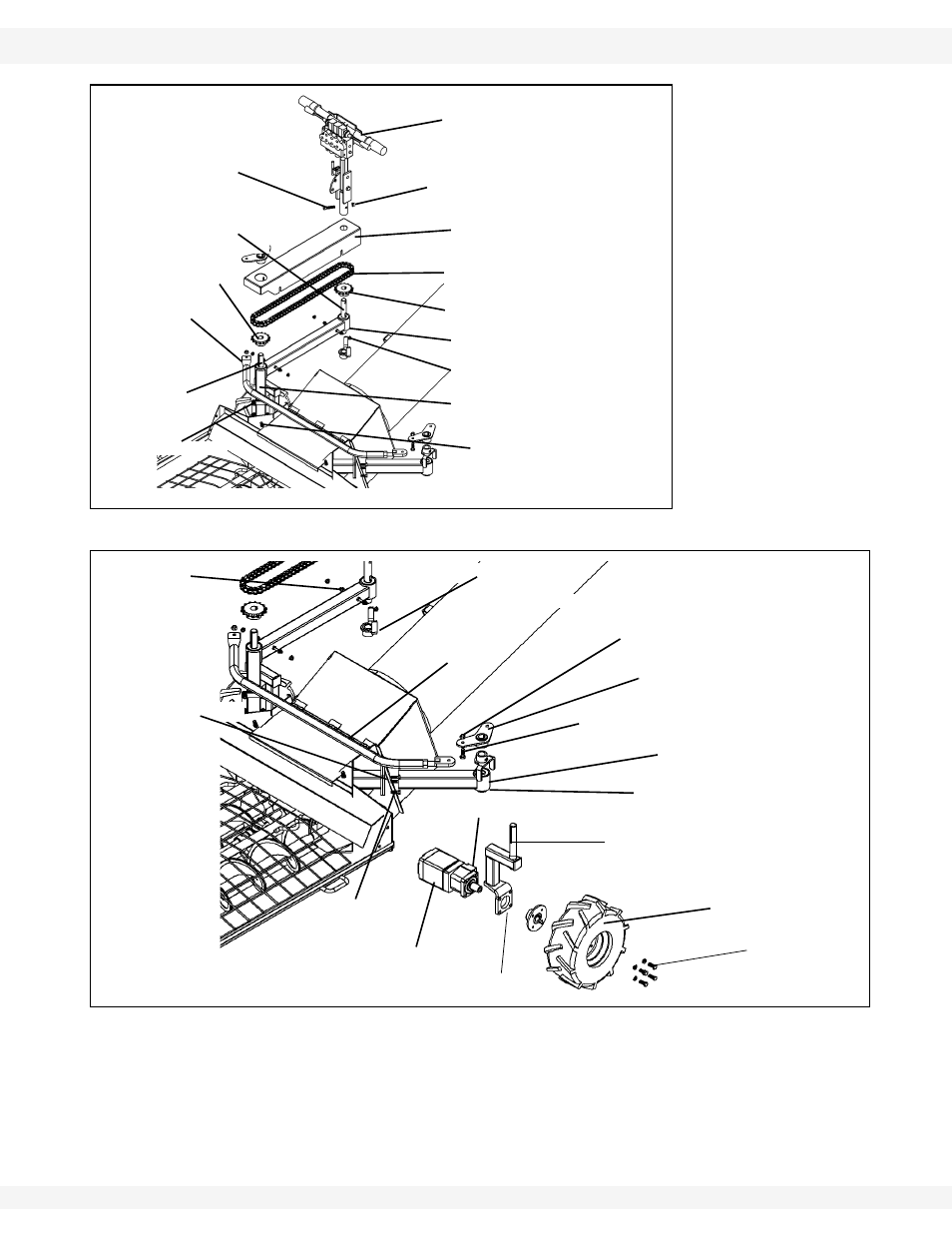

Figure 3.45 Right Side Setup
Figure 3.46 Right Side Setup
3/8” X 2” BOLT
STEERING
SHAFT
STEERING
LINKAGE
3/8” X 1” BOLT
MOTOR
CASTOR
SPROCKET
FOLDABLE HANDLE
3/8” FLANGE NUT
STEERING COVER
STEERING CHAIN
SPROCKET
LONG CASTOR ARM
3/8” FLANGE NUT
1/4” X 1” WOODRUFF KEY
5/16” WHIZNUT
STEERING STOP 5/16” WHIZ NUT
STEERING LINKAGE
HOPPER
DRIVE
WHEEL
HYDRAULIC MOTOR
3/8” X 1” BOLT
3/8” FLANGE NUT
3/8” X 1-1/4” BOLT
AND LOCKWASHER
3/8” X 1” BOLT
AND
LOCKWASHER
NOTE: PORTS TO THIS SIDE
7/16” LOCKNUT
7/16” X 1-1/4” BOLT
SHORT CASTOR ARM
STEERING ARM
WELDMENT
MOTOR CASTOR
1/4” X 1” WOODRUFF KEY
