W HEATHEART - SA F LEX A UGER 3. A SSEMBLY
71’ - 111’ 3.15. L OW P ROFILE H OPPER
30651 R5 65

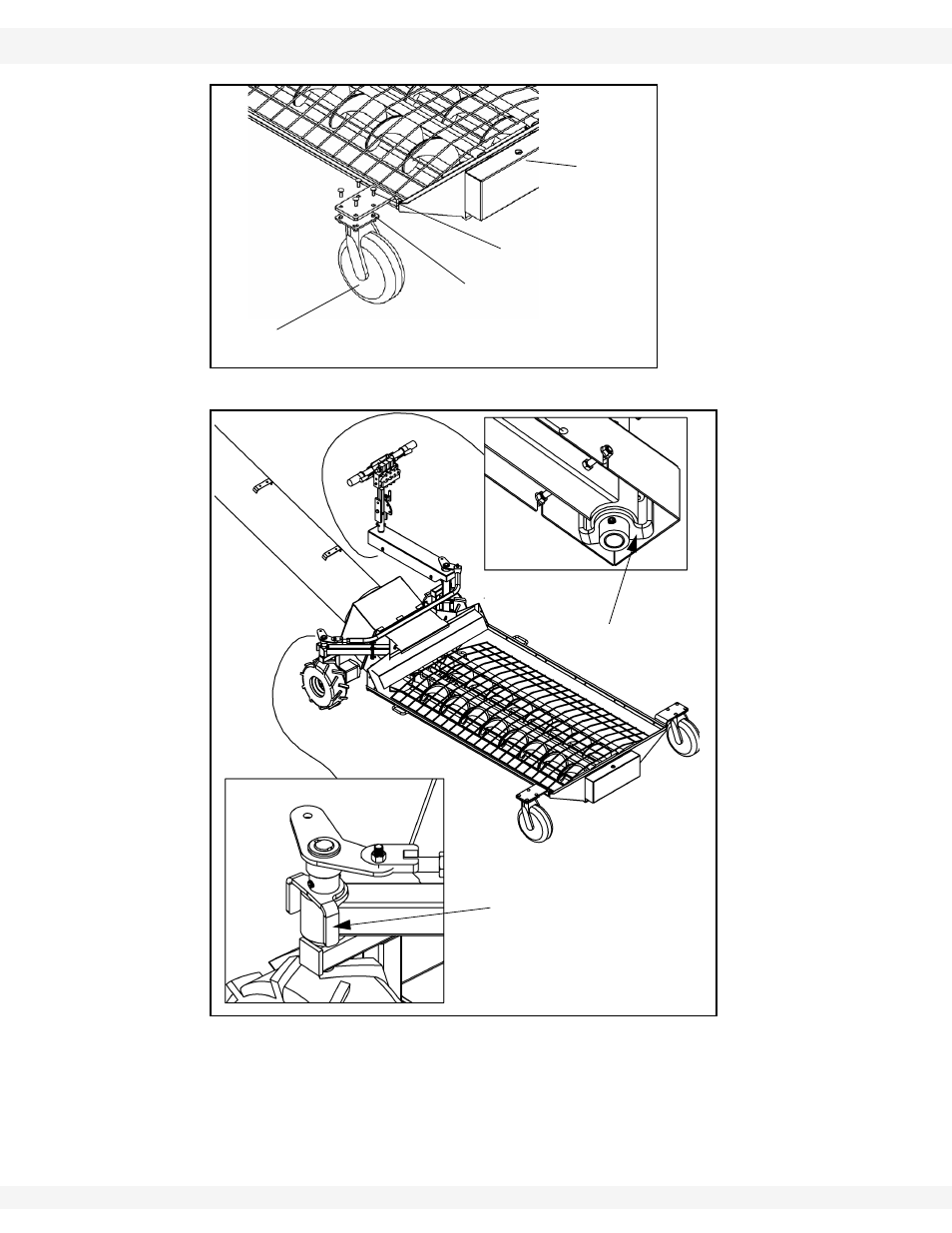

Figure 3.52 Left Side Setup
Figure 3.53 Steering Stop Placement on Left Side Setup
3. Insert a sprocket on the steering shaft and on motor castor on the long castor
arm (on side with steering assembly). Connect sprockets with steering chain
and secure with connecting link and clip.
4. Place steering cover over chain and secure in place with eight 5/16” whiz nuts
(one whiz nut on each side of cover, 4 places).
HOPPER
3/8” X 1” CARRIAGE
BOLT
3/8” WHIZ NUT
SWIVEL WHEEL
STEERING STOP
(UNDER SIDE)
STEERING STOP
