W HEATHEART - SA F LEX A UGER 3. A SSEMBLY
71’ - 111’ 3.16. F LEX A UGER H YDRAULICS
30651 R5 71
3.16. FLEX AUGER HYDRAULICS
Note: Hose layout is shown mounted on the right side of the auger as shown from the
hopper end facing toward the spout end. Hose layout will be mirrored from lower
boot to hopper if hopper mounted on left side.

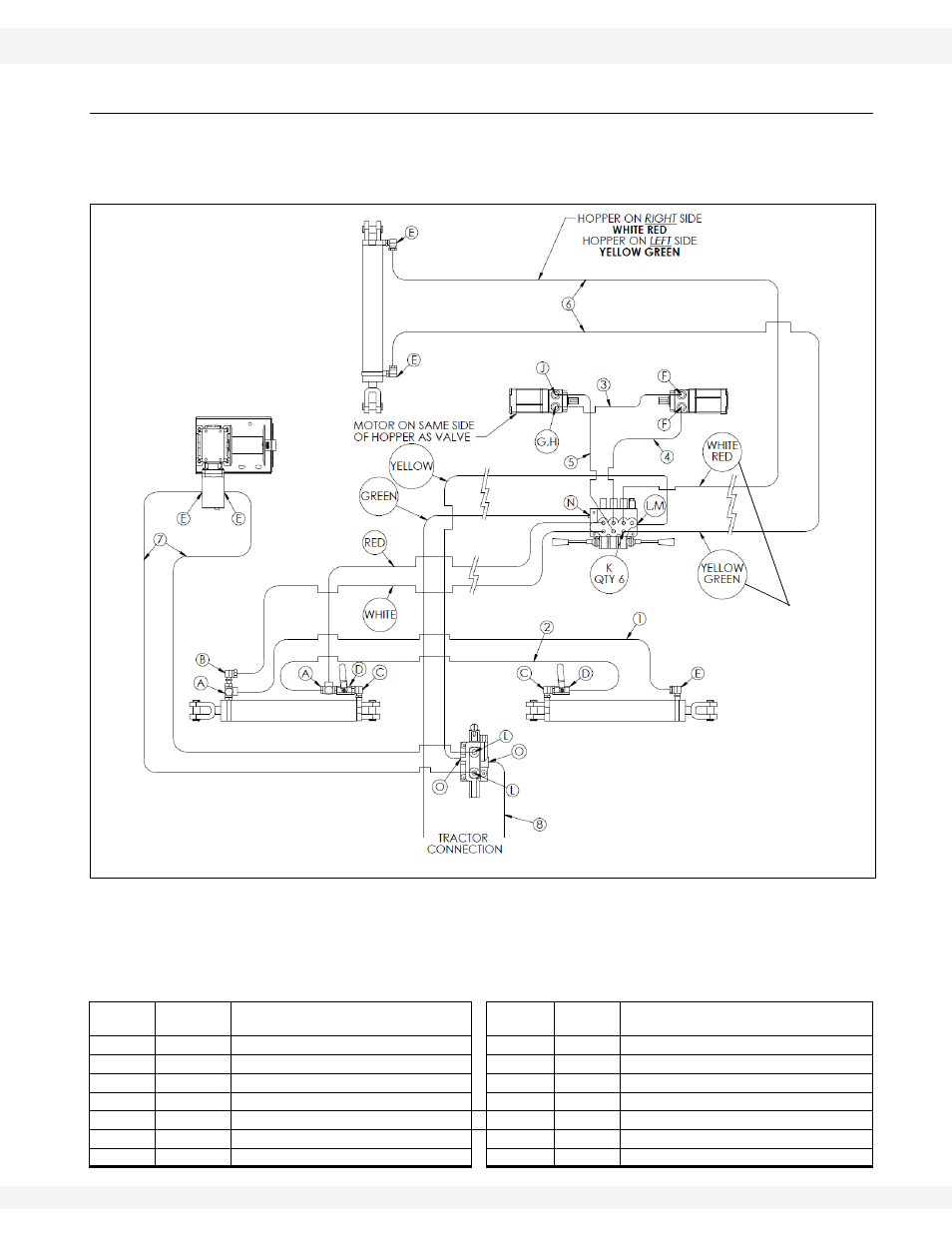

Figure 3.61
1. Install all hose fittings and ball valves as shown in Figure 3.61 and described
in Table 3.5
THIS CONFIGURATION
FOR RIGHT SIDE ONLY.
SWAP HOSES FOR
LEFT SIDE SETUP.
Table 3.5
LABEL PART NO. DESCRIPTION LABEL
PART
NO.
DESCRIPTION
1 28751 3/8" X 88" HYDRAULIC HOSE, MK FLEX A 28763 STEEL TEE, 6MNPT X 6MJIC X 6MJIC RUN
2 28752 3/8" X 124" HYDRAULIC HOSE, MK FLEX B 28762 STEEL ELBOW 90, 6MJIC X 6FJIC
3 28755 3/8" X 64" HYDRAULIC HOSE, MK FLEX C 28764 STEEL ELBOW 90, 6MNPT X 6MNPT
4 28756 3/8" X 88" HYDRAULIC HOSE, MK FLEX D 18084 3/8 BALL VALVE
5 28754 3/8" X 52" HYDRAULIC HOSE, MK FLEX E 28757 STEEL ELBOW 90, 6MNPT X 6FNPSM
6 29205 3/8" X 125" HYDRAULIC HOSE, MK FLEX F 28758 STEEL ELBOW 45, 10MORB X 8MJIC
7 28834 3/8" X 280" HYDRAULIC HOSE, MK FLEX G 28760 STEEL, 10MORB X 8MJIC
