Wheatheart Swing Away Flex Auger - Manual (Page 50)

3. A SSEMBLY W HEATHEART - SA F LEX A UGER
3.10. T RANSPORT U NDERCARRIAGE (111’) 71’ - 111’
50 30651 R5

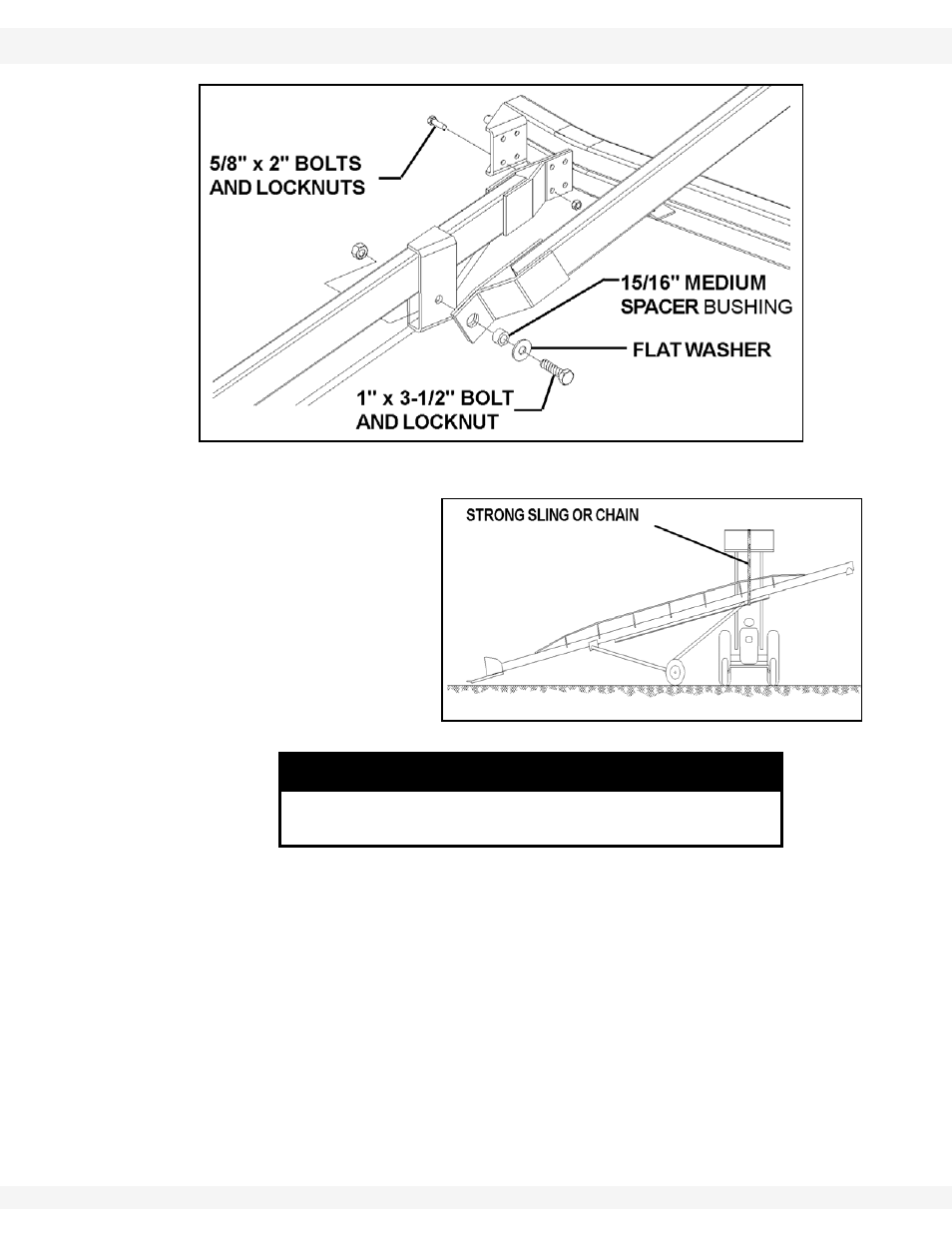

Figure 3.33
9. Lower auger intake to the ground.
10. Raise the upper end of
auger with a block and
tackle or a front-end
loader. Securely attach
a strong sling or chain
about 36" above
trackstop. Secure tube
to prevent it from turning
while lifting. Raise
sufficiently to clear
undercarriage.
11. Place undercarriage beneath tube assembly.
12. Position stabilizer braces (A) (Figure 3.34) and attach lower reach arms to
bracket on tube with long spacer bushings (1-1/8” long), flat washers, and 1"
x 3-1/2” bolts and locknuts. Tighten securely. Reach arms pivot on the
spacer bushings.
NOTICE
Do not remove tube support until assembly in this section
has been completed.
