W HEATHEART - SA F LEX A UGER 3. A SSEMBLY
71’ - 111’ 3.15. L OW P ROFILE H OPPER
30651 R5 59

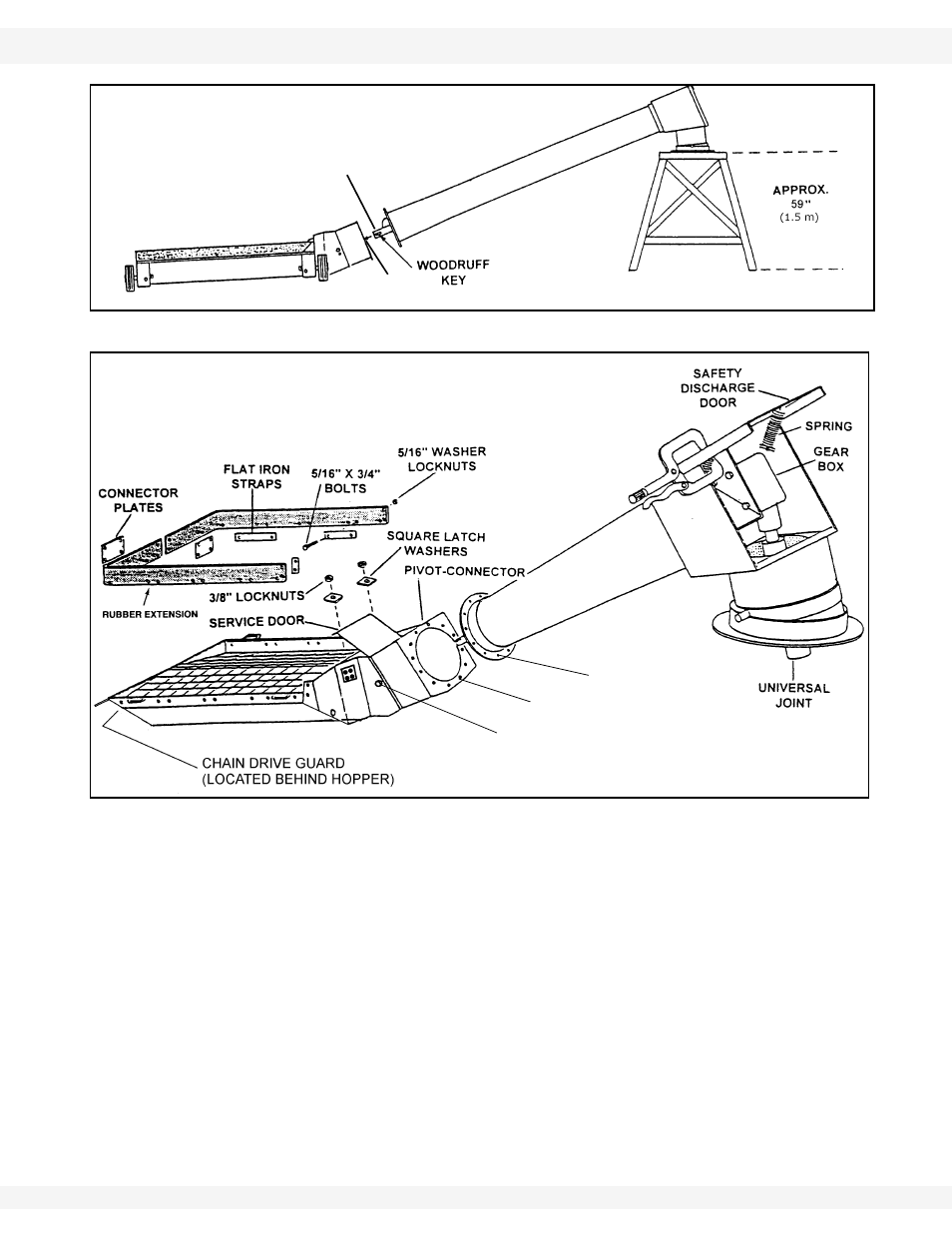

Figure 3.42
Figure 3.43
7. Tighten set screws on u-joints, then close and secure the service door,
tighten 3/8” locknuts and 3/8” square latch washers.
8. Remove the two 5/16” whiznuts that secure the chain drive guard. Attach the
2-piece rubber extension to inside of hopper lip with 5/16” x 3/4” bolts and
whiznuts and the flat iron straps provided, plus the 2-piece extension
connector plates. Replace bolts, see Figure 3.43.
9. Attach two swivel wheels to the two hopper corners with eight 3/8” x 1”
carriage bolts and 3/8” whiz nuts (Figure 3.47).
FLIGHT SHAFT END
U-JOINT
HOLES FOR 5/8” X 1-1/2”
BOLTS AND LOCKNUTS
7/16” LOCKNUT
7/16” X 1-1/4” BOLTS
