W HEATHEART - SA F LEX A UGER 3. A SSEMBLY
71’ - 111’ 3.15. L OW P ROFILE H OPPER
30651 R5 69
8. Check the alignment of the winch
by watching the cable wrapping on
the drum as the swing tube is
raised. Proper alignment is
achieved when the cable indexes
properly filling each row on the
drum evenly and not piling up
against one side.
9. If the cable does not index properly,
lower the swing tube fully until there
is slack in the cable. Loosen the
bolts on the winch. Adjust the
winch, retighten nuts, and retest.
7 17699 VALVE FITTINGS 4
8 28923 HYD WINCH VALVE MOUNT, MK FLEX 1
9 28833 U-BOLT SQ 3/8” NC X 3-1/16” X 4” X 1” THD GR5 PLTD 2
10 28834 3/8” X 280” HYDRAULIC HOSE 2
11 28835 3/8” X 60” HYDRAULIC HOSE 2
- 16419 HYD WINCH BOLT BAG 1
- 17376 HOPPER LIFT CABLE, 1/4” X 31’ 1
HYDRAULIC WINCH KIT ONLY
ITEM PART NO. DESCRIPTION QTY.

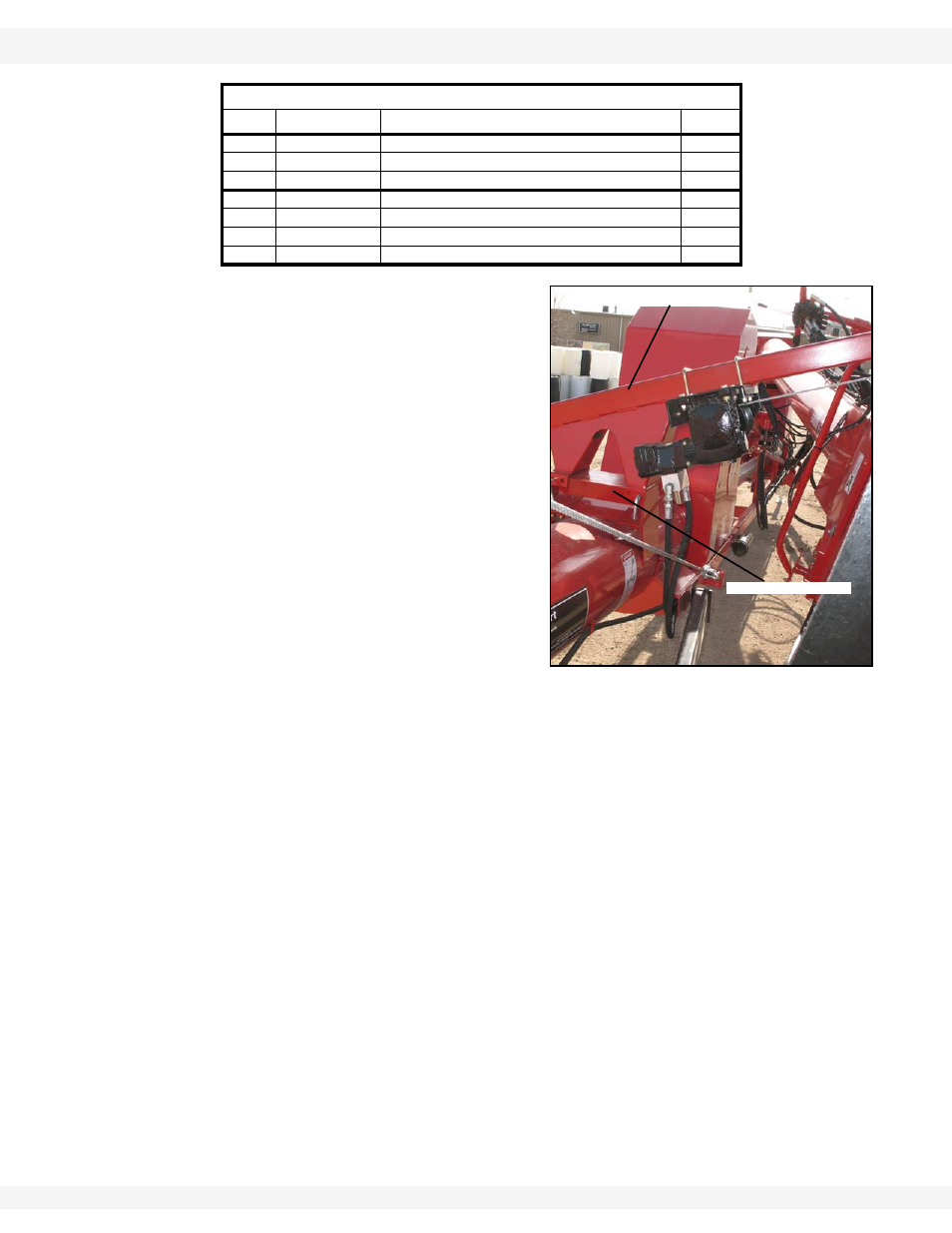

Figure 3.59
HOPPER LIFT ARM
MOUNT BRACKET
