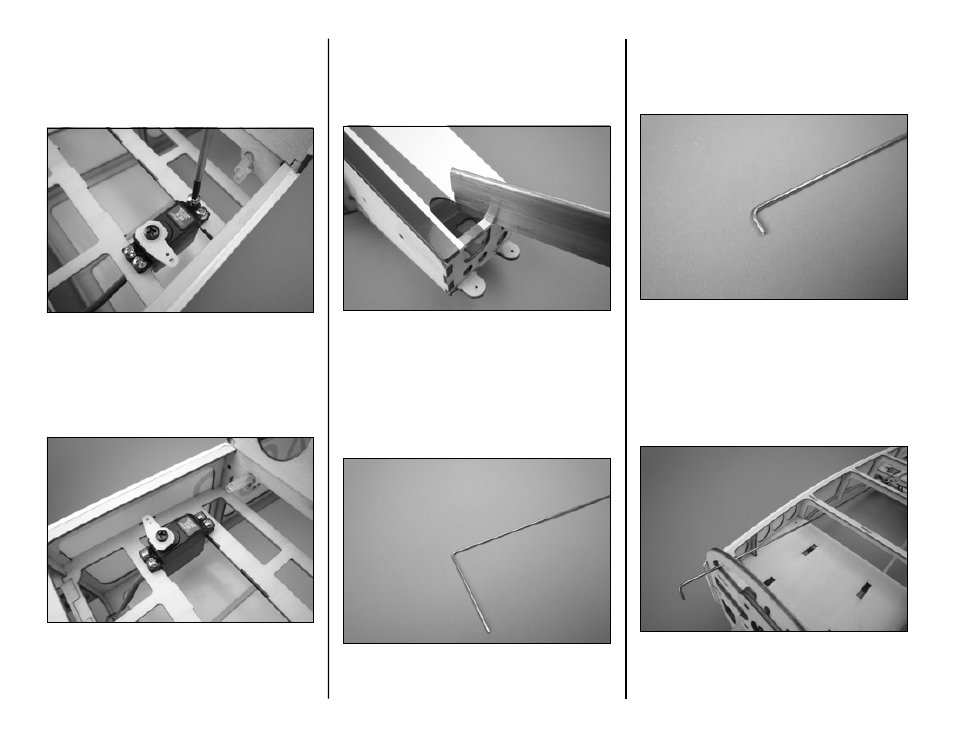

6 Beechcraft Bonanza 15e ARF Assembly Manual
□□
Step 12
Use a #1 Phillips screwdriver and the screws
provided with the servo to install the rudder servo in
the fuselage.
□
Step 13
Repeat steps 7 through 12 to locate and install the
elevator servo in the right side of the fuselage.
□
Step 14
Use a razor saw to remove the section of frame at
the right rear corner of the fuselage. Make the cuts
flush with the opening in the side.
□□
Step 15
Measure 14 inches from the threaded end of the
rudder and elevator pushrods and form a 90-degree
bend using pliers.
□□
Step 16
Use sidecutters to trim the bent end of the pushrod
to a length of 1/4-inch.
□□
Step 17
Insert the rudder and elevator pushrods into the
lower guide tubes by feeding them through the
openings in the top of the firewall.
