20 Beechcraft Bonanza 15e ARF Assembly Manual
□

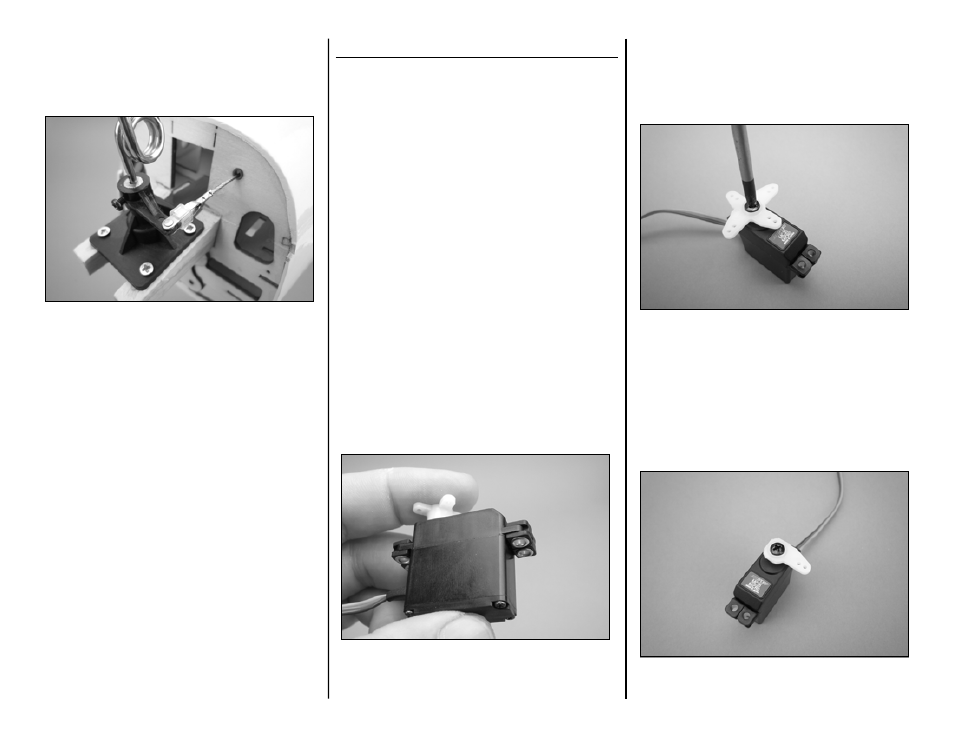

Step 8
Connect the clevis to the steering arm and secure it
with the silicone keeper.
Aileron Servo Installation
Parts Required
Wing panels Micro servos (2)
Clevises (2) Snap keepers (2)
Silicone keepers (2) 4-inch steel pushrods (2)
#2 x 3/8-inch wood screws (8)
Aileron servo hatches (2)
Servo mounting blocks (4)
9-inch servo extension leads (2)
Tools Required
Pin vise 1/16-inch drill bit
5/64-inch drill bit #1 Phillips screwdriver
Dental floss Low-tack tape
Pencil Ruler
Hobby knife Thin CA
12-minute epoxy Mixing sticks
Mixing cups Felt-tipped pen
Sidecutters Pliers
□□
Step 1
Prepare the aileron servos by installing the
grommets and bushings. Note that the bushings are
installed from the bottom of the servo.
□□
Step 2
Use a #1 Phillips screwdriver to remove the small
servo arm and install a standard 4-way arm on each
servo.
□□
Step 3
Use sidecutters to remove three of the servo arms,
leaving one long arm. Note that this servo arm
orientation is for the right-hand wing panel, reverse
the arm when performing this step for the left wing.
