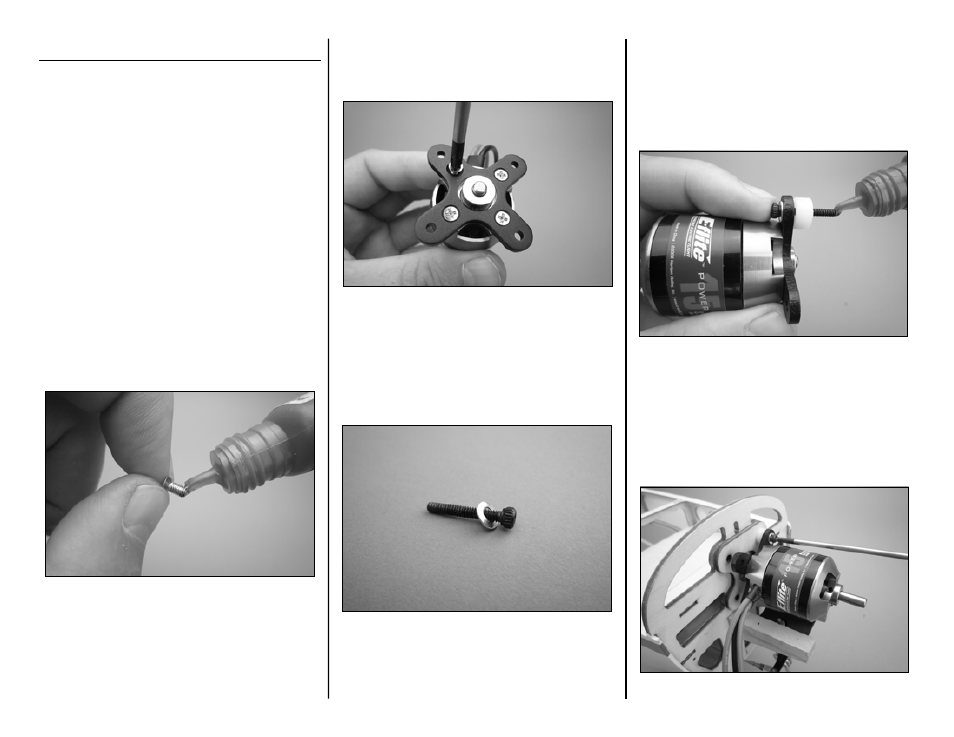

E-flite Beechcraft Bonanza 15e ARF - Manual (Page 39)

39 Beechcraft Bonanza 15e ARF Assembly Manual
Motor and ESC Installation
Parts Required
Fuselage Motor
ESC #4 steel washers (4)
Nylon spacers (4)
4-40 x 3/4-inch hex screws (4)
Adhesive-backed hook and loop tape
Tools Required
Threadlock #1 Phillips screwdriver
Tapered reamer Ruler
Scissors Pencil
3/32-inch hex wrench
□
Step 1
Apply threadlock to each of the countersunk screws
supplied with the motor mounting hardware to install
the motor mount.
□
Step 2
Use a #1 Phillips screwdriver to install the motor
mount on the back of the motor.
□
Step 3
Locate the #4 steel washers supplied with the motor
hardware. Place a washer on each of the 4-40 x 3/4-
inch motor mounting screws.
□
Step 4
Noting that the motor leads will exit to the right side
of the fuselage, slide a screw and washer into the
top left motor mount hole. Place a nylon spacer over
the exposed screw. Apply a drop of threadlock on the
end of the threads.
□
Step 5
Use a 3/32-inch hex wrench to install the motor on
the firewall with the power leads exiting to the right-
hand side.
