22 Beechcraft Bonanza 15e ARF Assembly Manual
□□

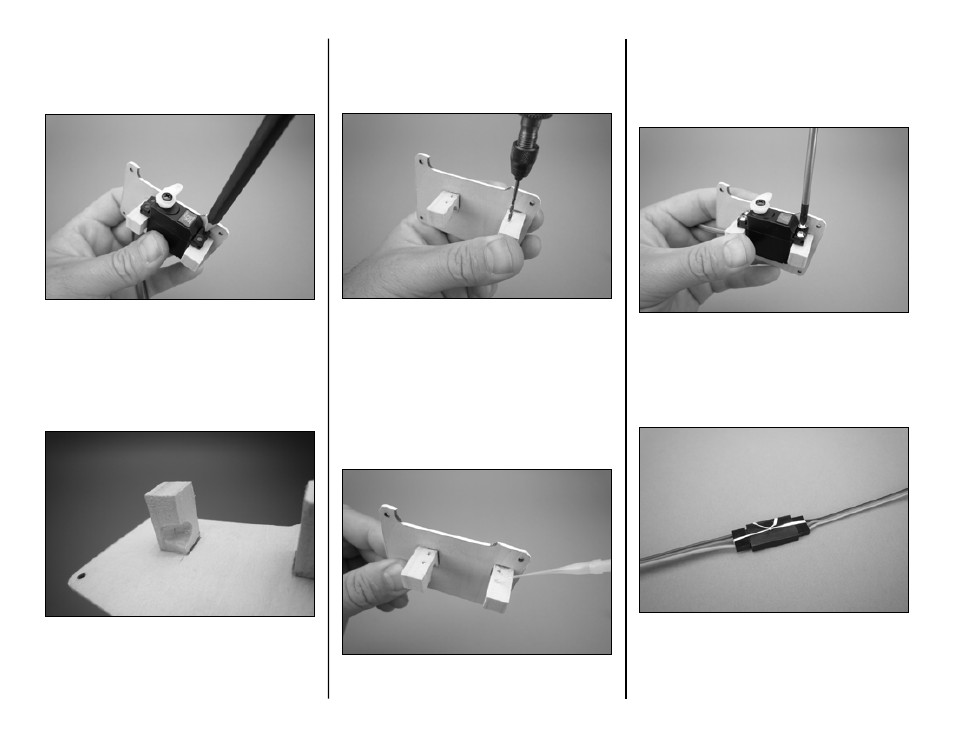

Step 10
Set the servo in place between the mounting blocks
and use a pencil to mark the mounting hole locations.
Note: It may be necessary to carve a relief in one of
the blocks to provide clearance for the servo lead. Use
a hobby knife to do so if required.
□□
Step 11
Remove the servo. Use a 1/16-inch drill bit in a pin
vise to drill the servo mounting holes.
□□
Step 12
Apply a drop of thin CA to each of the mounting
holes to strengthen the wood. Allow the CA to cure
completely without using accelerator.
□□
Step 13
Use a #1 Phillips screwdriver and the screws
provided with the servo to install the servo to the
aileron hatch.
□□
Step 14
Connect a 9-inch servo extension lead to the aileron
servo. Use dental floss to secure the connectors.
