10 Beechcraft Bonanza 15e ARF Assembly Manual
□

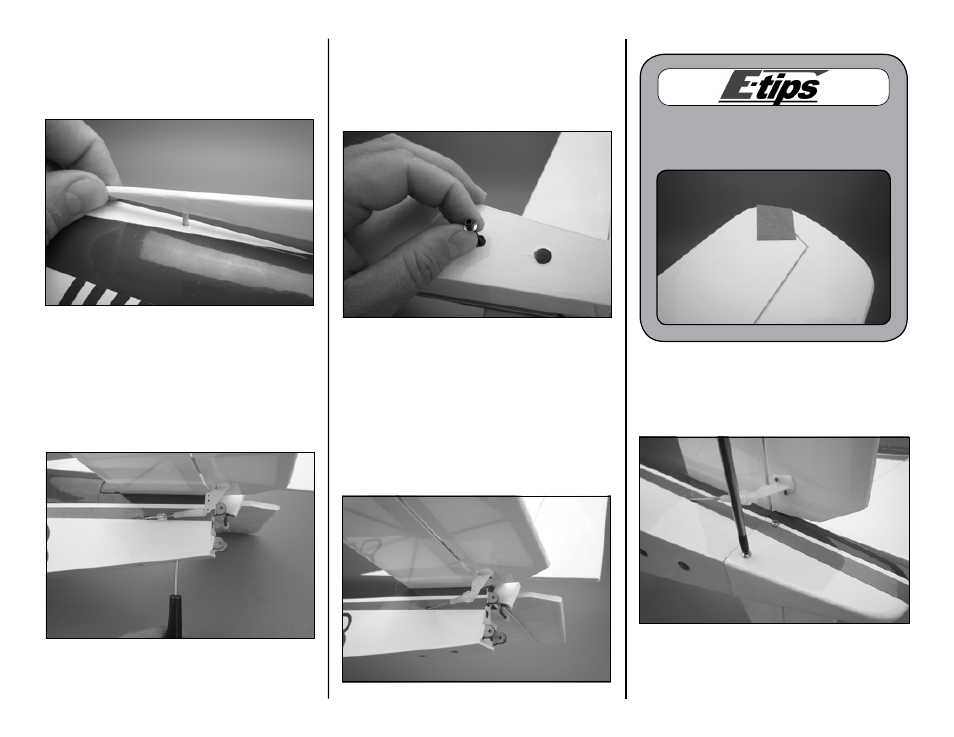

Step 8
Set the fin and rudder in place on the horizontal
stabilizer. The dowel in the dorsal fin locates in the
hole in the top of the fuselage.
□
Step 9
Align the screw with the blind nut in the base of the
fin and use the 3/32-inch hex wrench to secure the
fin and stabilizer to the fuselage.
□
Step 10
Turn the fuselage over. Place a small amount of
threadlock on the second screw and insert it into the
forward mounting hole. Use a 3/32-inch hex wrench
to tighten it into place.
□
Step 11
Center the elevators and rudder. With the rudder and
elevator servos centered, adjust the clevises to align
them with the control horns. Connect the elevator
pushrod to the outer hole in the control horn, and
connect the rudder pushrod to the adjustable horn.
Secure the clevises with the silicone keepers.
□
Step 12
Use a #1 Phillips screwdriver to install the tailcone
with three #2 x 1/4-inch woodscrews.
Use low-tack tape to center the control
surfaces while setting up servos and
pushrod lengths.
