5 Beechcraft Bonanza 15e ARF Assembly Manual
□

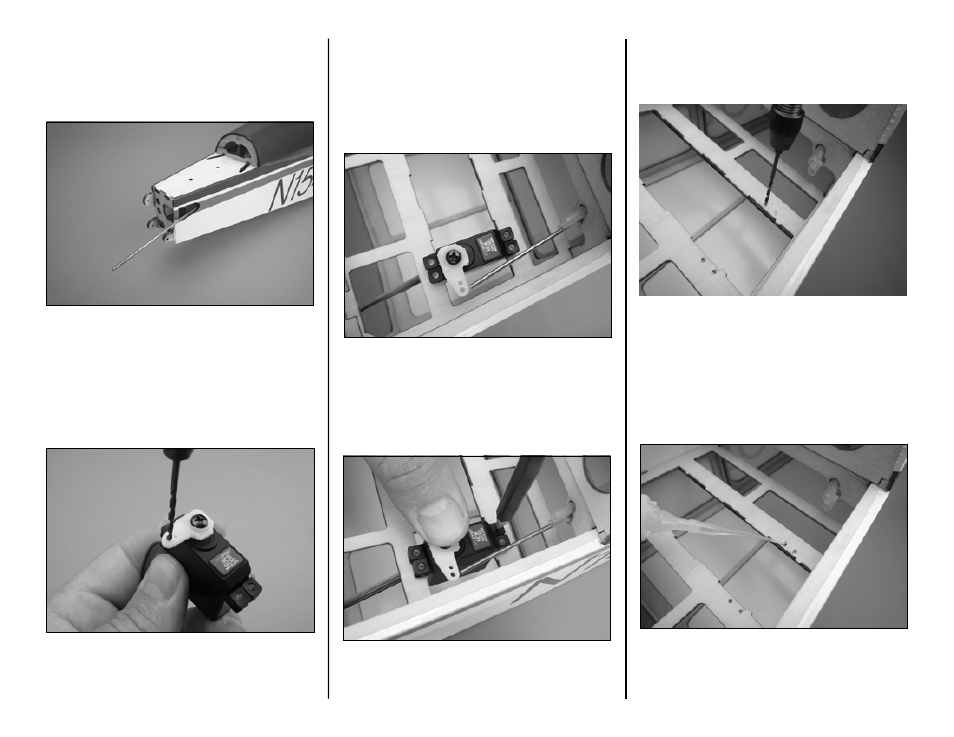

Step 6
Insert the non-threaded end of the rudder pushrod
into the nylon housing in the fuselage through the
cutout made in step 5.
□□
Step 7
Use a 5/64-inch drill bit in a pin vise to enlarge the
outer hole in the servo arm.
□□
Step 8
Place the servo in the fuselage between the
mounting rails with the output shaft towards the front.
Center the servo fore and aft between the rails. Use
the pushrod to position the servo so that the pushrod
is aligned with the outer hole in the servo arm.
□□
Step 9
Hold the servo in place and use a pencil to mark the
mounting hole locations.
□□
Step 10
Remove the servo and pushrod. Use a 1/16-inch drill
bit in a pin vise to drill the mounting holes.
□□
Step 11
Apply a drop of thin CA to each of the holes to
strengthen the wood. Allow the CA to cure without
using accelerator.
