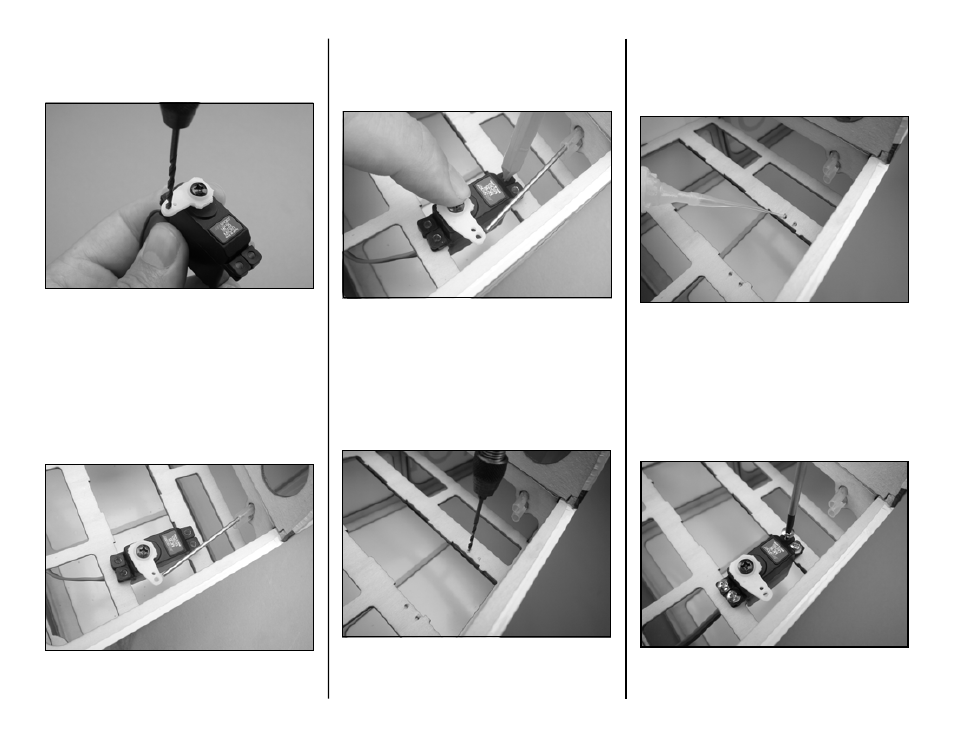

Step 6
Use a 5/64-inch drill bit in a pin vise to enlarge the
outer hole in each servo arm.
□□
Step 7
Place the servo between the mounting rails with the
output shaft towards the front and use the pushrod
as a guide to position the servo by aligning the
pushrod end with the outer hole in the servo arm.
□□
Step 8
Hold the servo in place and use a pencil to mark the
mounting hole locations.
□□
Step 9
Remove the servo and pushrod. Use a 1/16-inch drill
bit in a pin vise to drill the mounting holes.
□□
Step 10
Apply a drop of thin CA to each of the holes to
strengthen the wood. Allow the CA to cure without
using accelerator.
□□
Step 11
Use a #1 Phillips screwdriver and the screws
provided with the servo to install the servo in the
fuselage.
