16 Beechcraft Bonanza 15e ARF Assembly Manual
Nosewheel Steering Cable and
Servo Installation
Parts Required
Fuselage Micro servo (1)
Steering cable Silicone keeper
Pushrod connector and button keeper
17-inch nylon pushrod housing
Tools Required
Pencil #1 Phillips screwdriver
Canopy glue 3/32-inch drill bit
Pin vise Thin CA
Pliers Sidecutters
□

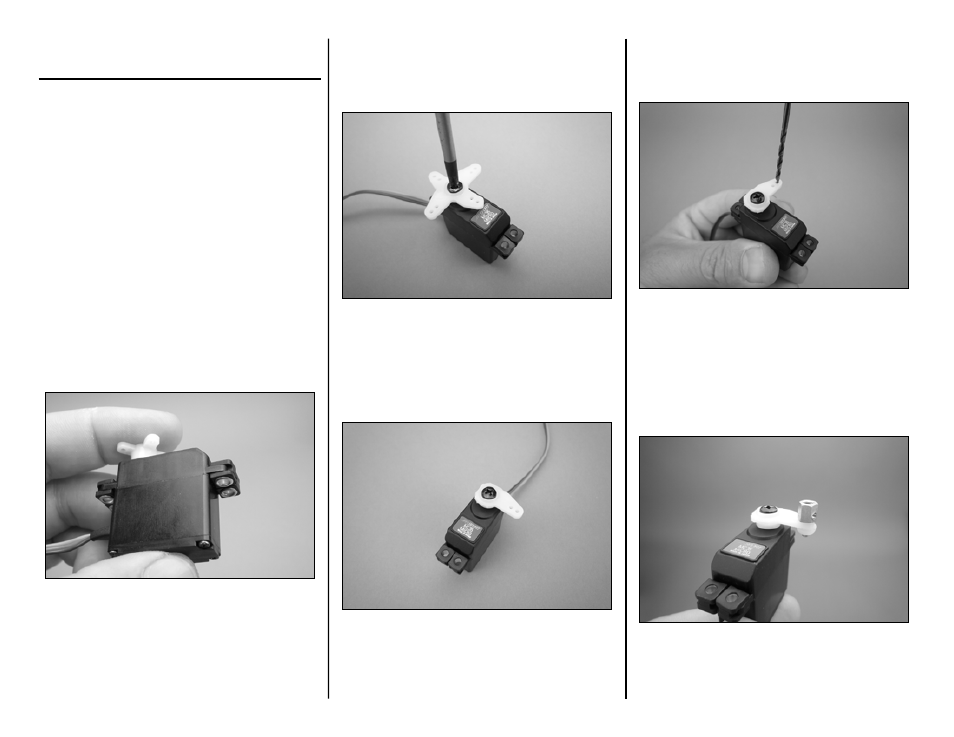

Step 1
Prepare the servo by installing the grommets and
bushings. Note that the bushings install from the
bottom of the servo.
□
Step 2
Use a #1 Phillips screwdriver to remove the small
servo arm and install a standard size 4-way arm on
the servo.
□
Step 3
Use sidecutters to remove three of the servo arms,
leaving one long arm as shown.
□
Step 4
Use a 3/32-inch drill bit in a pin vise to enlarge the
outer hole in the servo arm.
□
Step 5
Insert the pushrod connector in the outer hole in the
servo arm. Use pliers to press the button keeper on
to the bottom of the connector.
